Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front suspension crossmember. Refer to FRONT SUSPENSION CROSSMEMBER REPLACEMENT in Front Suspension.
  2. Remove the engine mount-to-engine mount bracket nut.
  3. Remove the engine mount (left side shown, right side similar).
  4. Remove the engine mount heat shield from the engine mount, if necessary.

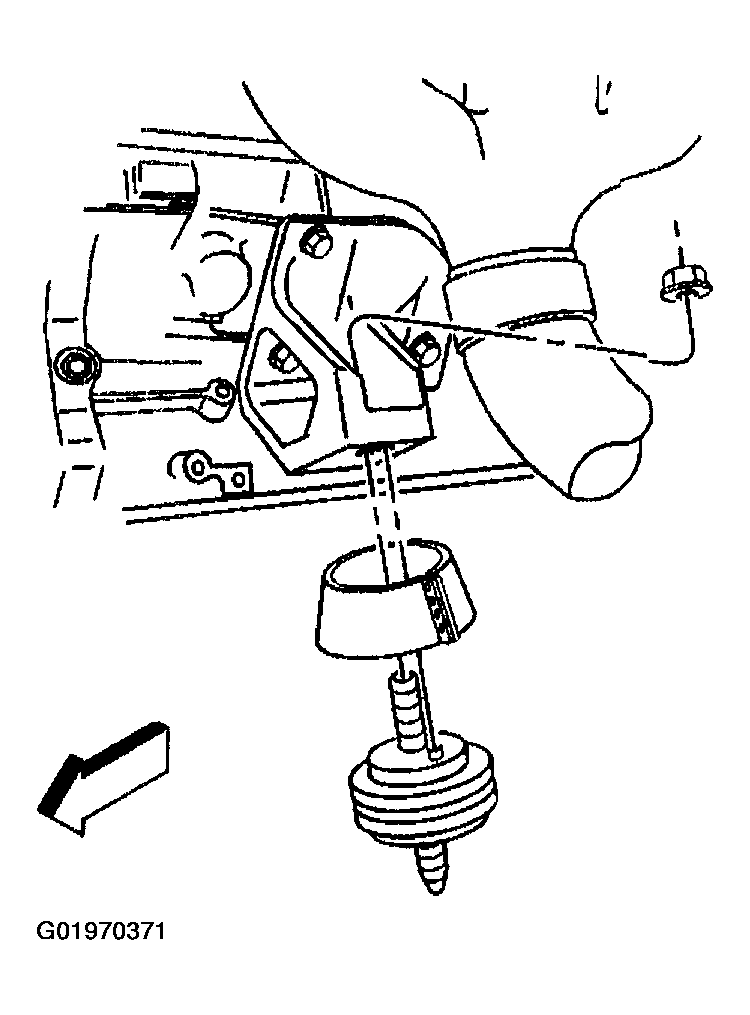

    Fig 1: Removing Engine Mount (Right)
    G01970371Courtesy of GENERAL MOTORS CORP.
