Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount heat shield to the engine mount, if necessary.
  2. Install the engine mount.

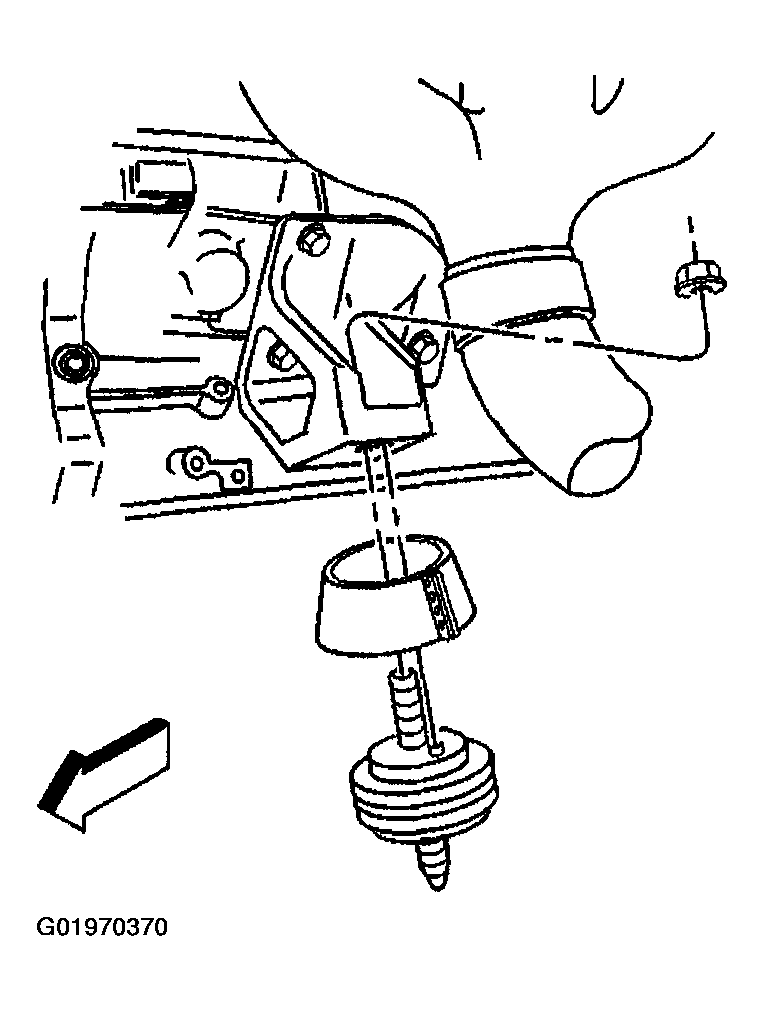

    Fig 1: Installing Engine Mount (Left)
    G01970370Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the engine mount-to-engine mount bracket nut.

    Tighten

    Tighten the nut to 65 N.m (48 lb ft).

  4. Install the front suspension crossmember. Refer to FRONT SUSPENSION CROSSMEMBER REPLACEMENT in Front Suspension.
