Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right engine mount. Refer to ENGINE MOUNT REPLACEMENT-RIGHT  .
  2. Remove the engine mount bracket bolts.
  3. Remove the engine mount bracket.

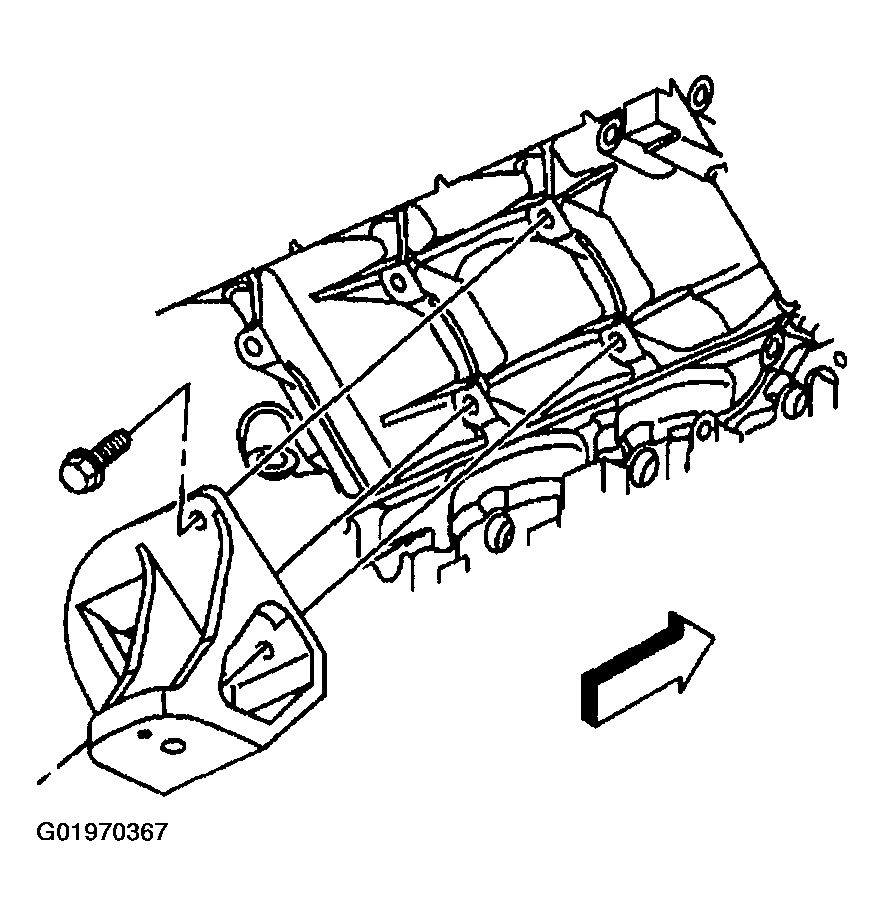

    Fig 1: Removing Engine Mount Bracket (Right)
    G01970367Courtesy of GENERAL MOTORS CORP.
