Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left engine mount. Refer to ENGINE MOUNT REPLACEMENT-LEFT  .
  2. Remove the engine mount bracket bolts.
  3. Remove the engine mount bracket.

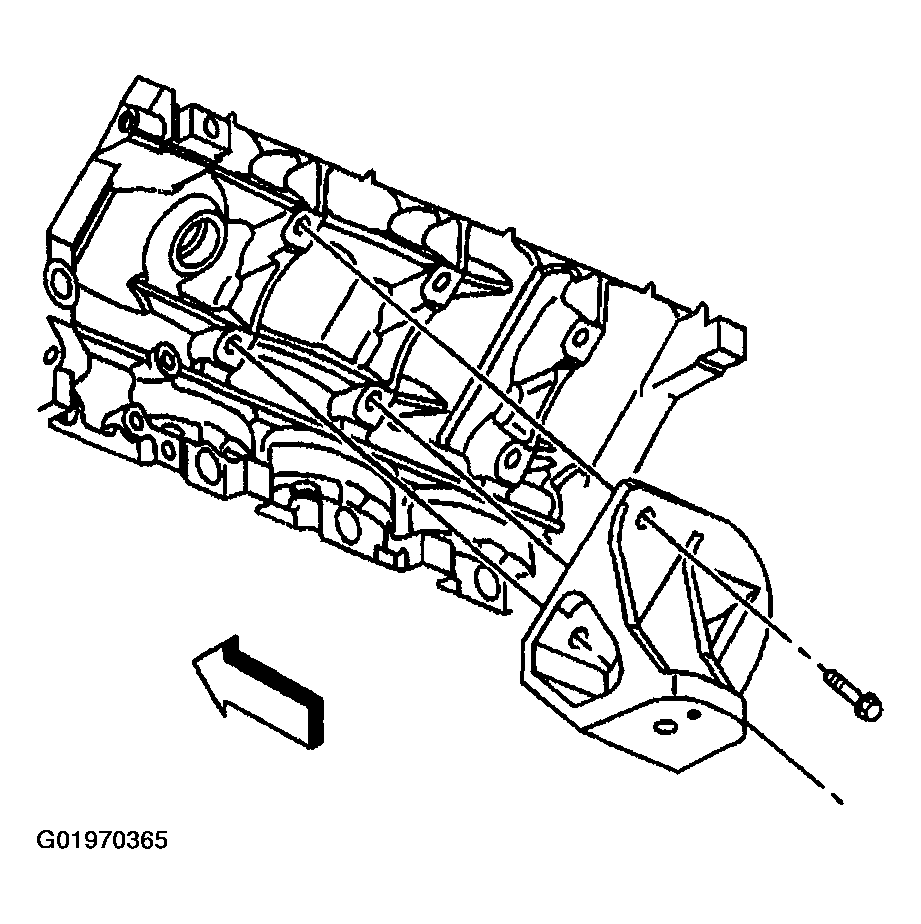

    Fig 1: Removing Engine Mount Bracket (Left)
    G01970365Courtesy of GENERAL MOTORS CORP.
