Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount bracket.

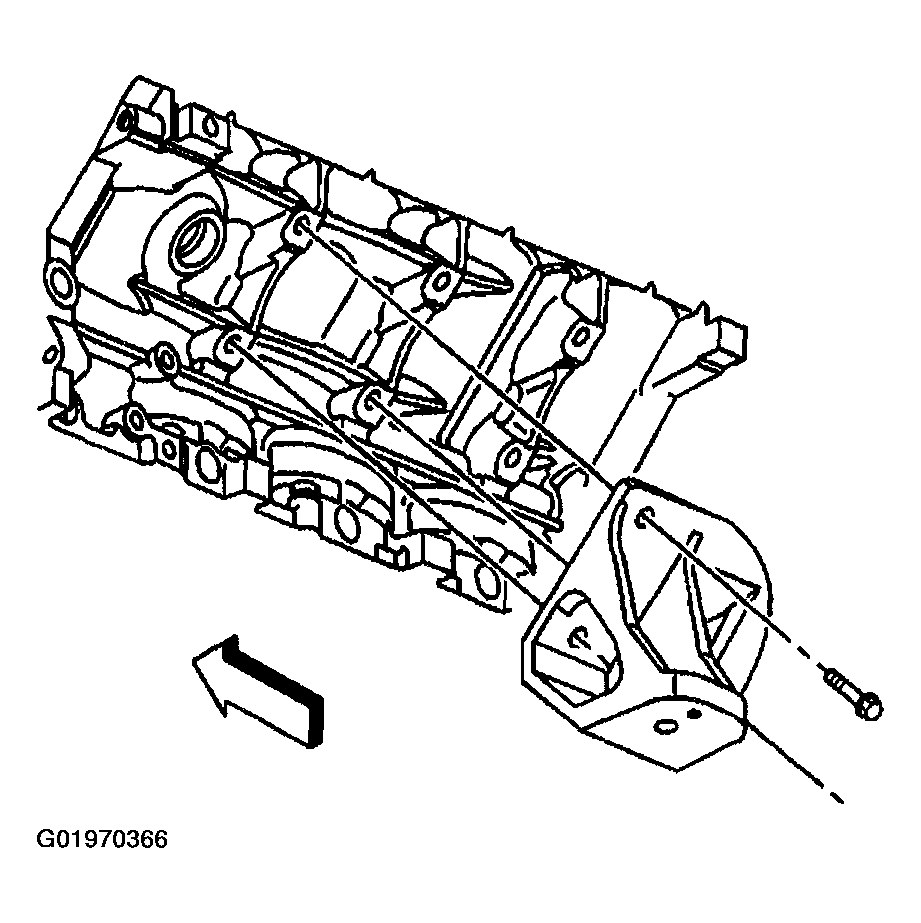

    Fig 1: Installing Engine Mount Bracket Left
    G01970366Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the engine mount bracket bolts.

    Tighten

    Tighten the engine mount bracket bolts to 50 N.m (37 lb ft).

  3. Install the left engine mount. Refer to ENGINE MOUNT REPLACEMENT-LEFT  .
