Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the A/C drive belt tensioner.

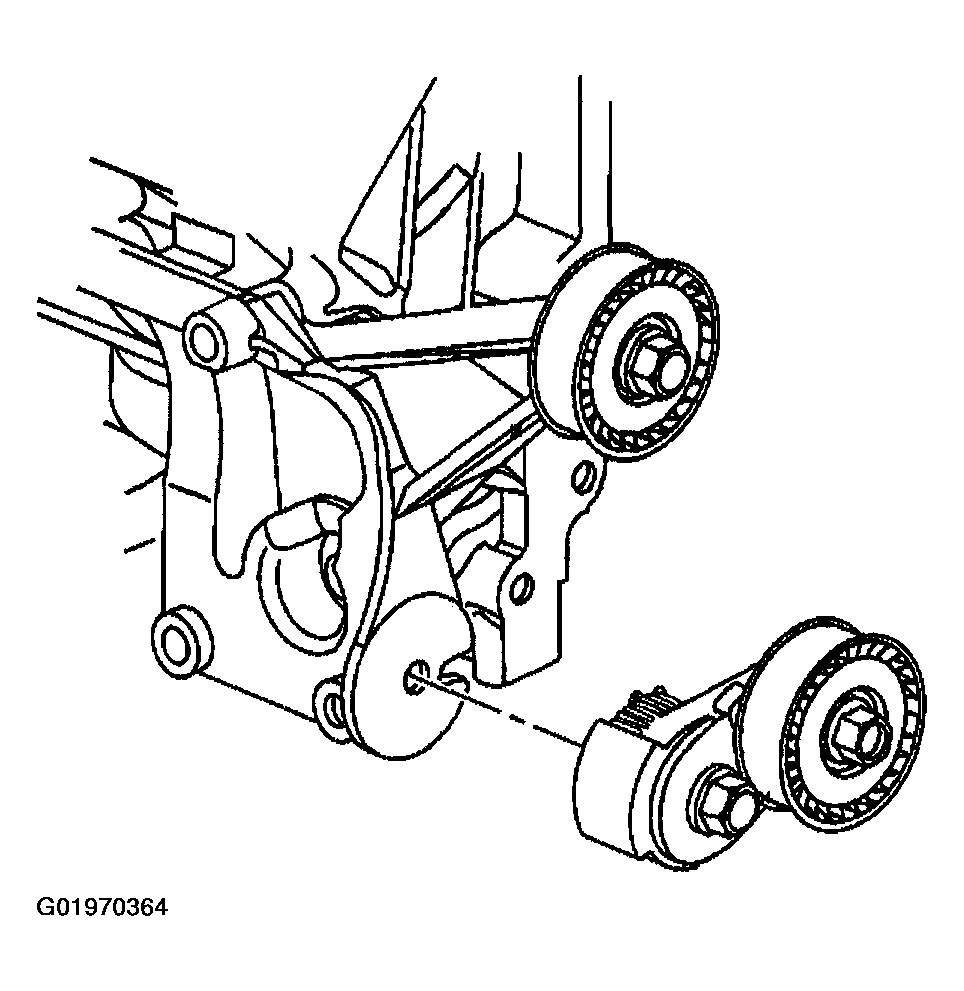

    Fig 1: Installing Air Conditioning Drive Belt Tensioner
    G01970364Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Tighten the A/C drive belt tensioner bolt.

    Tighten

    Tighten the A/C drive belt tensioner bolt to 50 N.m (37 lb ft).

  3. Lower the vehicle.
  4. Install the A/C drive belt. Refer to DRIVE BELT REPLACEMENT-AIR CONDITIONING  .
