Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the accessory drive belt idler pulley bolt.
  2. Remove the accessory drive belt. Refer to DRIVE BELT REPLACEMENT-ACCESSORY  .
  3. Remove the accessory drive belt idler pulley.

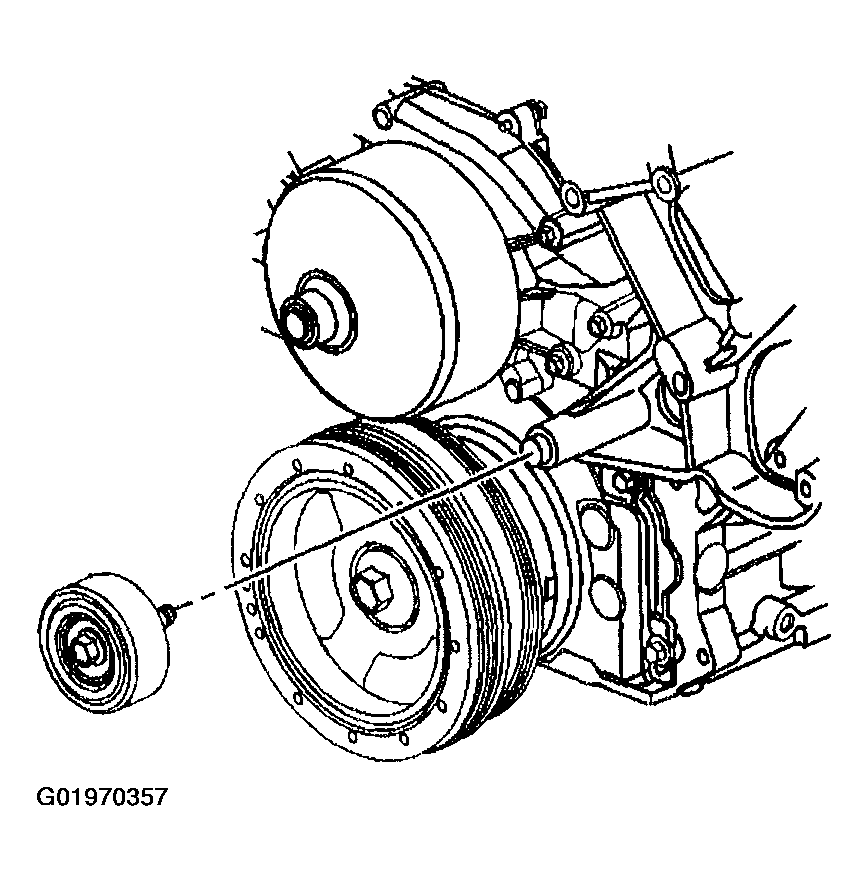

    Fig 1: Removing Accessory Drive Belt Idler Pulley
    G01970357Courtesy of GENERAL MOTORS CORP.
