Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft balancer. Refer to CRANKSHAFT BALANCER REPLACEMENT  .
  2. Gently pry the crankshaft oil seal (1) from the front cover.

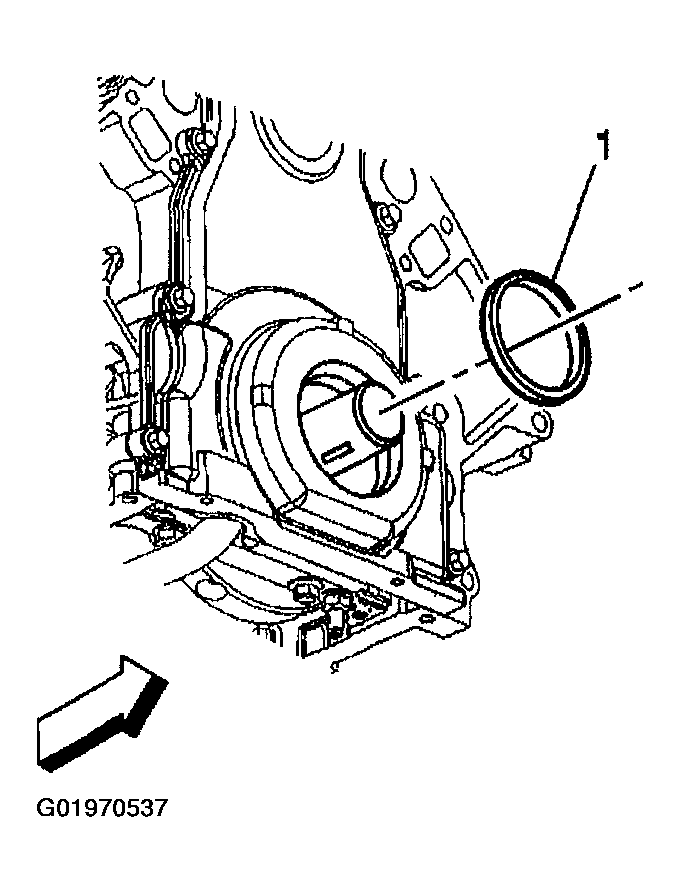

    Fig 1: Removing Crankshaft Front Oil Seal
    G01970537Courtesy of GENERAL MOTORS CORP.
