Engine Rear Cover Removal

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear cover bolts.
  2. Remove the rear cover and gasket.
  3. Discard the rear cover gasket.

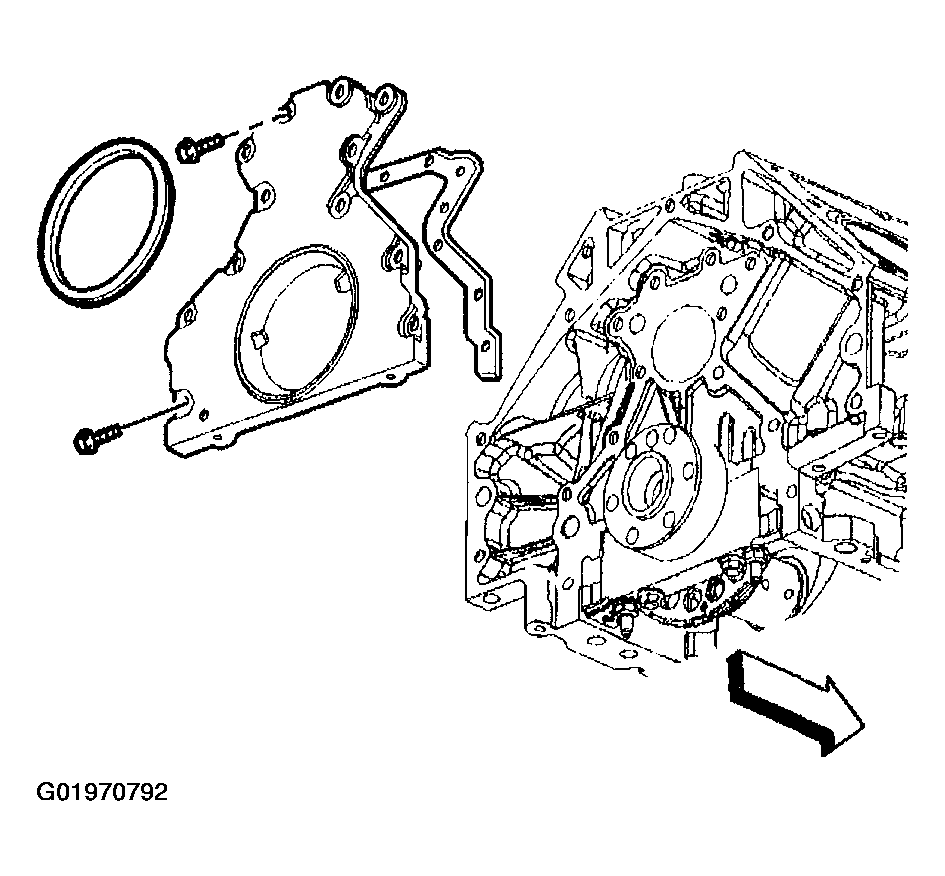

    Fig 1: Removing Engine Rear Cover
    G01970792Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft rear oil seal (1) from the cover.

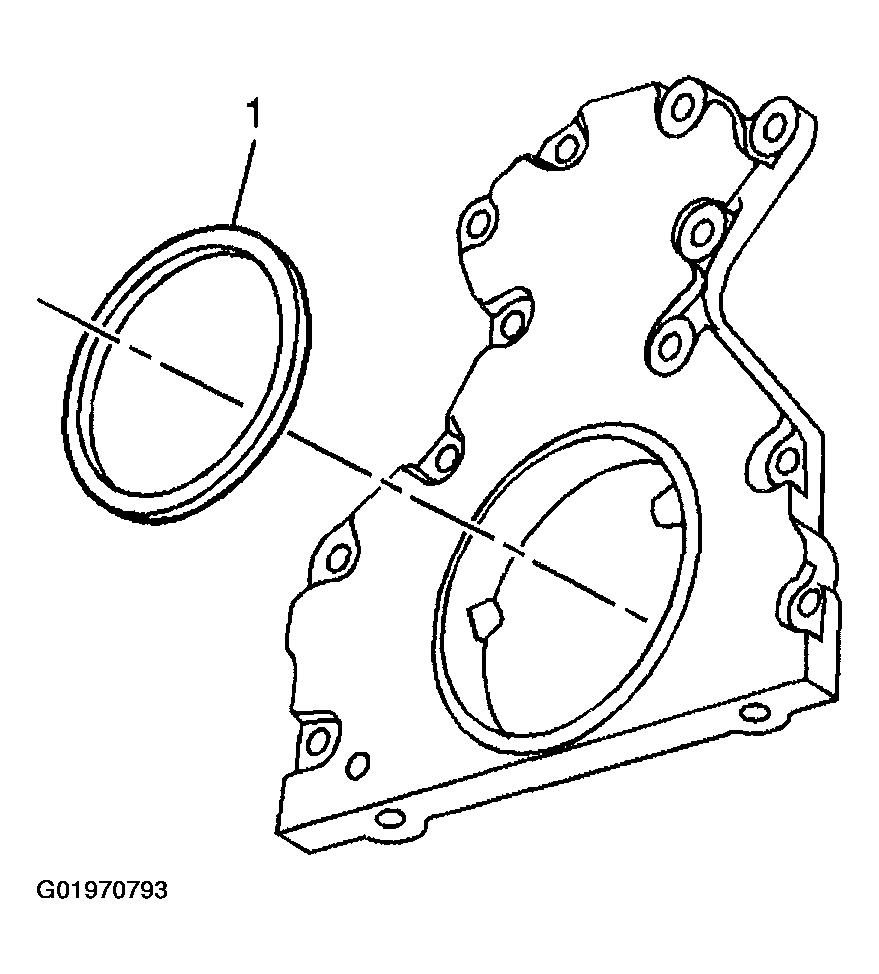

    Fig 2: Removing Crankshaft Rear Oil Seal
    G01970793Courtesy of GENERAL MOTORS CORP.
