Engine Front Cover Removal

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front cover bolts.
  2. Remove the front cover and gasket.
  3. Discard the front cover gasket.

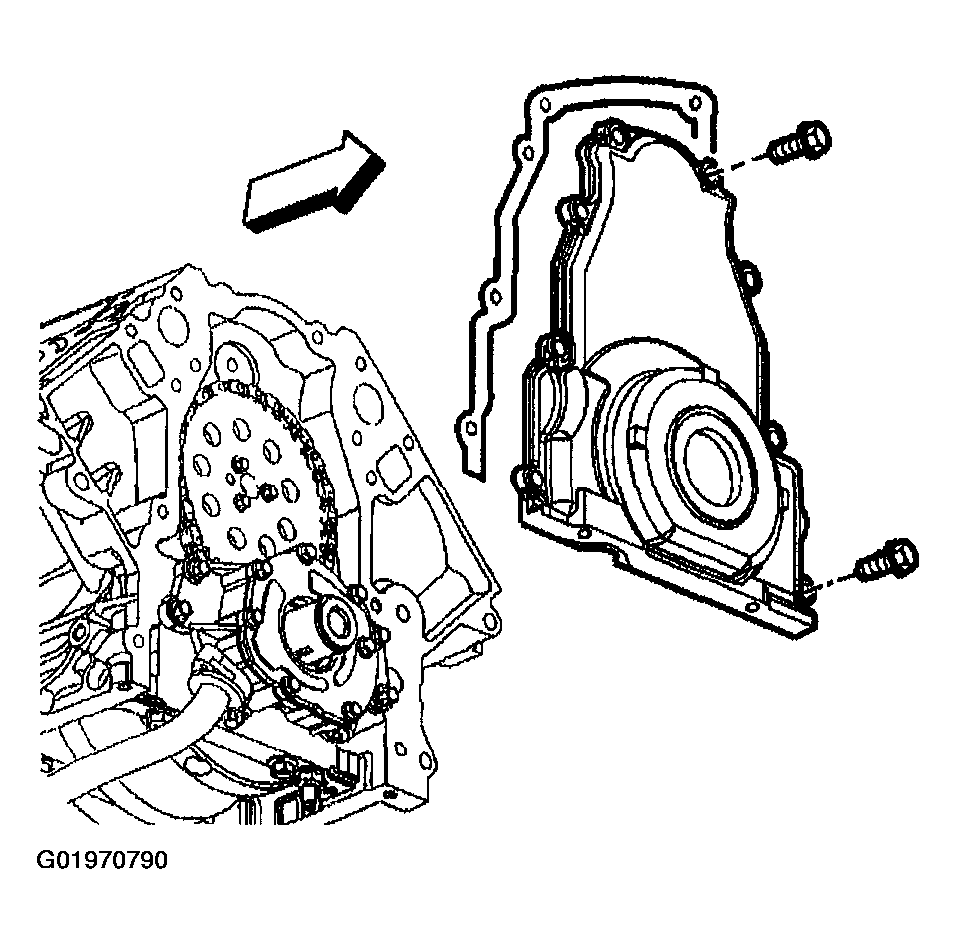

    Fig 1: Removing Engine Front Cover
    G01970790Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft front oil seal (1) from the cover.

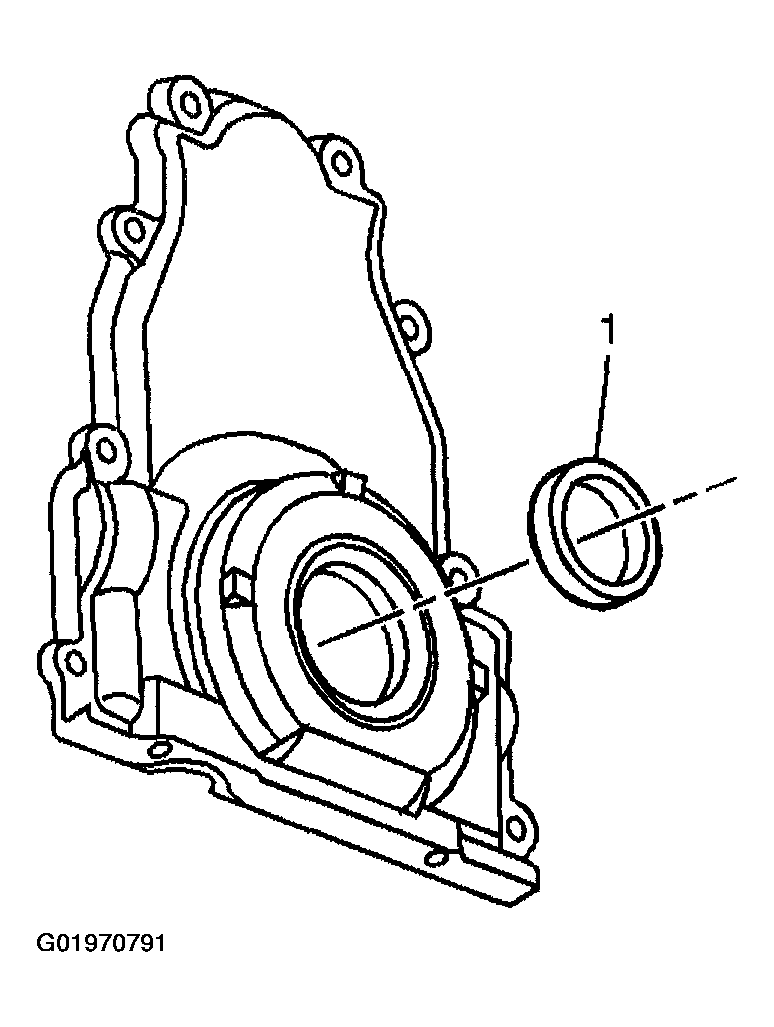

    Fig 2: Removing Crankshaft Front Oil Seal
    G01970791Courtesy of GENERAL MOTORS CORP.
