ABS Wiring Schematics (Traction Control Request, DLC, Torque and Steering Position Signals)

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

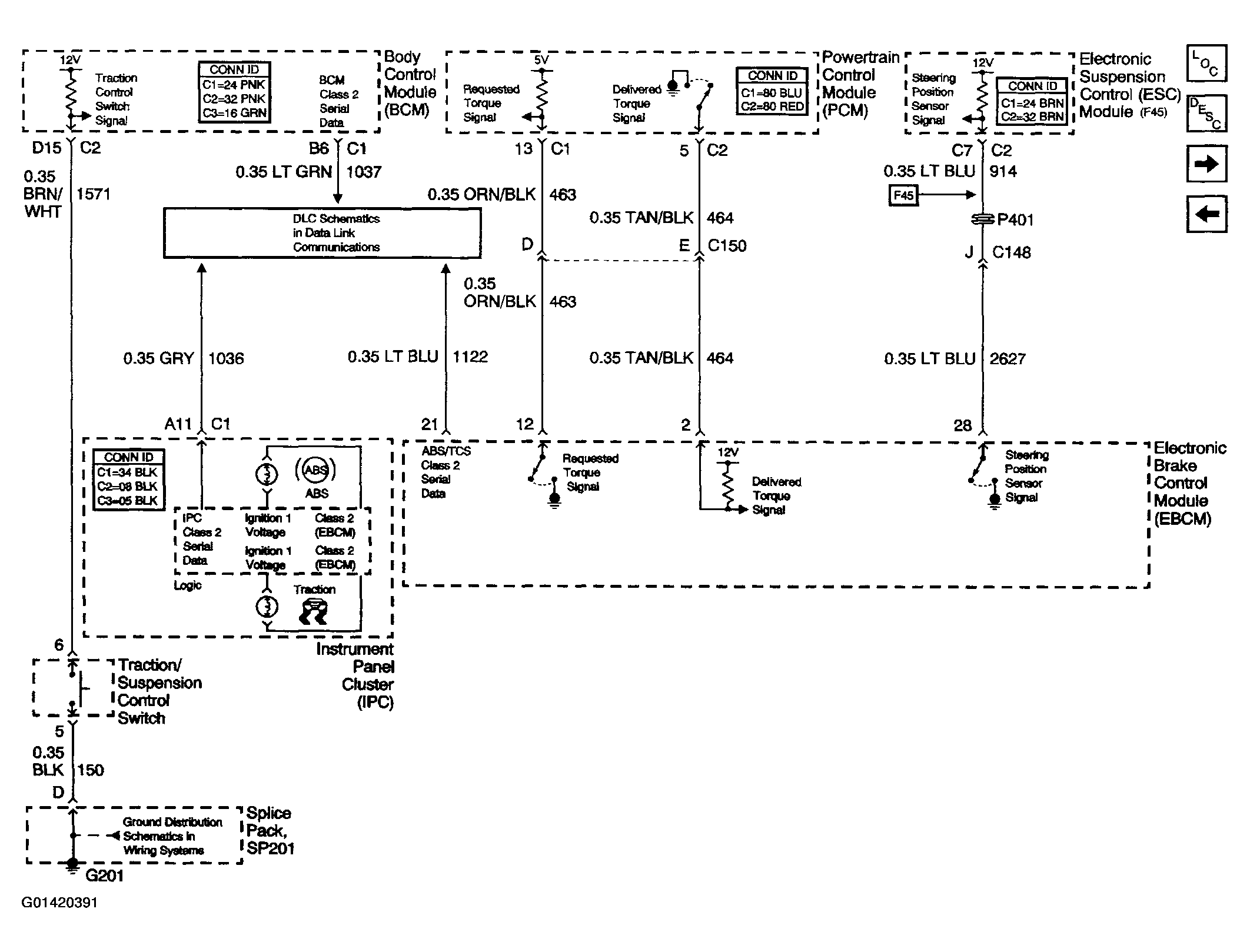

Fig 1: ABS Schematics (Traction Control Request, DLC, Torque and Steering Position Signals)
G01420391Courtesy of GENERAL MOTORS CORP.
