Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch to the OFF position.
Loosen the two insulator nuts (1).
Important: Do not kink or bend the brake lines when moving the EBCM/BPMV assembly.
Lift the EBCM/BPMV assembly out of the bracket and support.

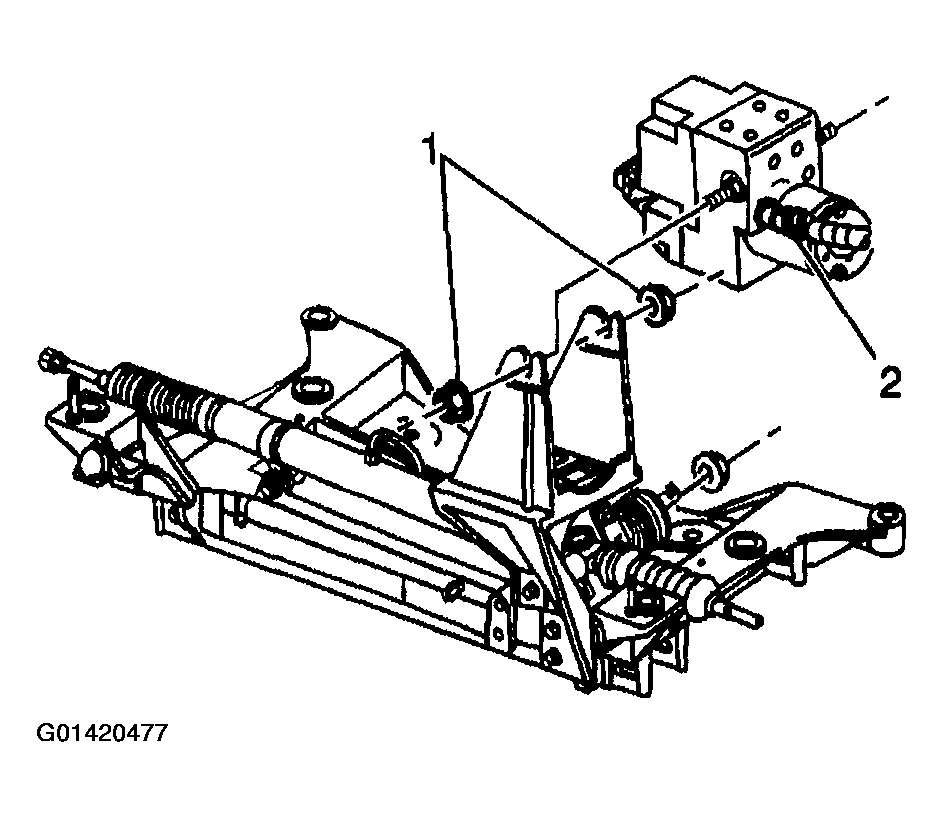

Fig 1: Removing Brake Pressure Modulator Valve (BPMV) Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the two BPMV bracket bolts.
Remove the steering gear nut and bolt.
Remove the BPMV bracket.

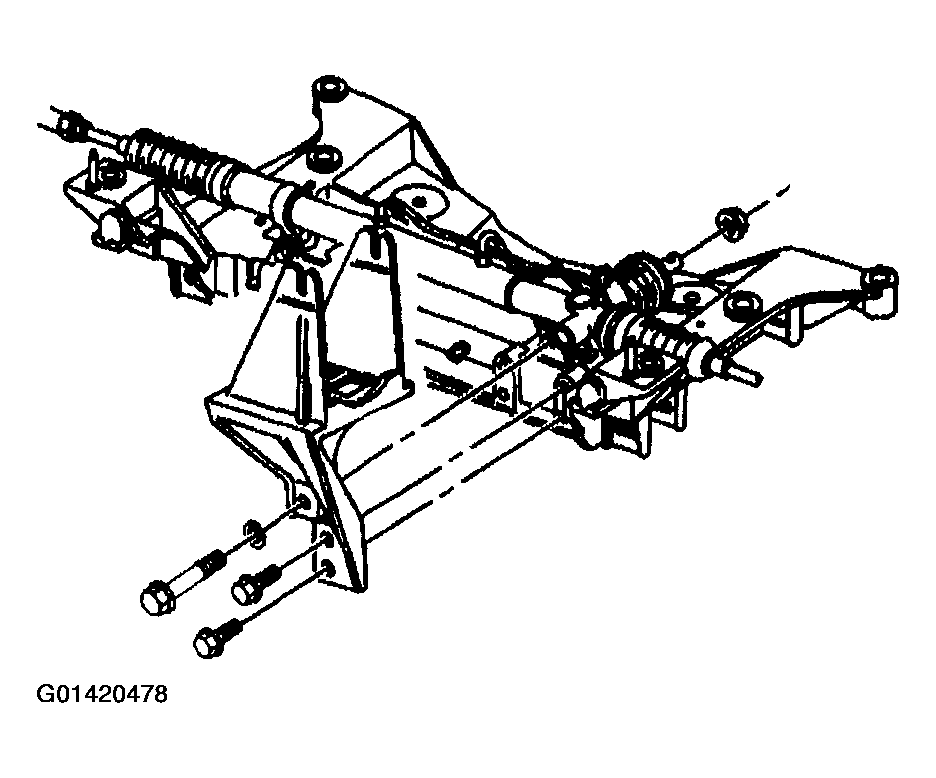

Fig 2: Removing Brake Pressure Modulator Valve (BPMV) Bracket

Courtesy of GENERAL MOTORS CORP.
