Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the EBCM/BPMV bracket to the crossmember.

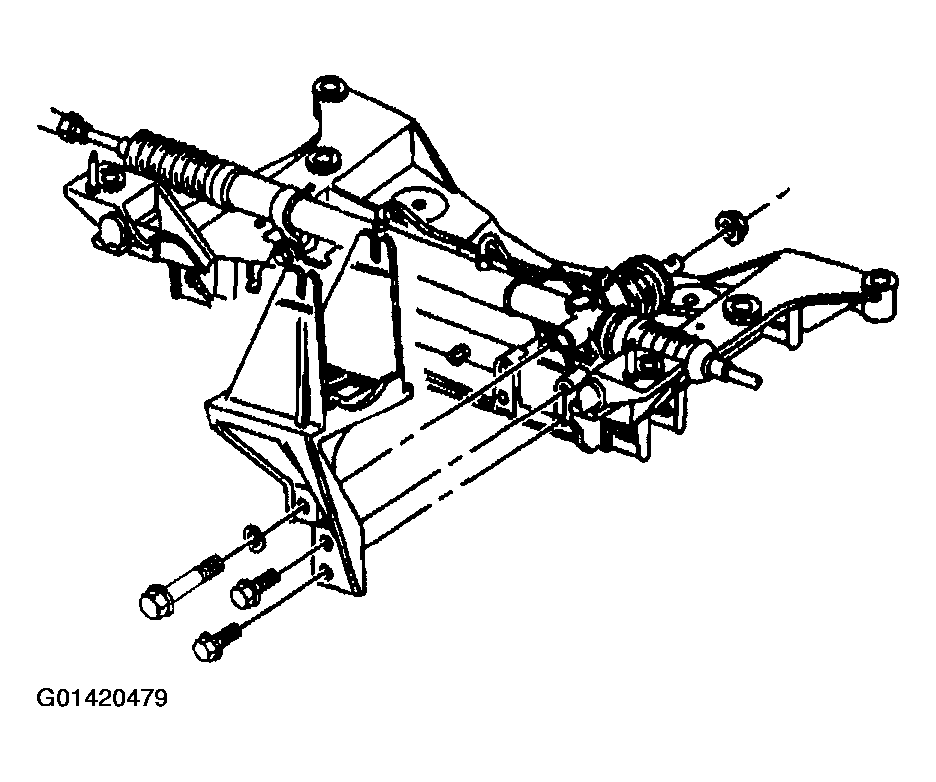

Fig 1: Installing Brake Pressure Modulator Valve (BPMV) Bracket
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the two bracket bolts to the EBCM/BPMV bracket.
Tighten

Tighten the bolts to 27 N.m (20 lb ft).
Install the steering gear bolt and nut.
Tighten

Tighten the steering gear nut to 100 N.m (74 lb ft).
Install the EBCM/BPMV assembly into the bracket.

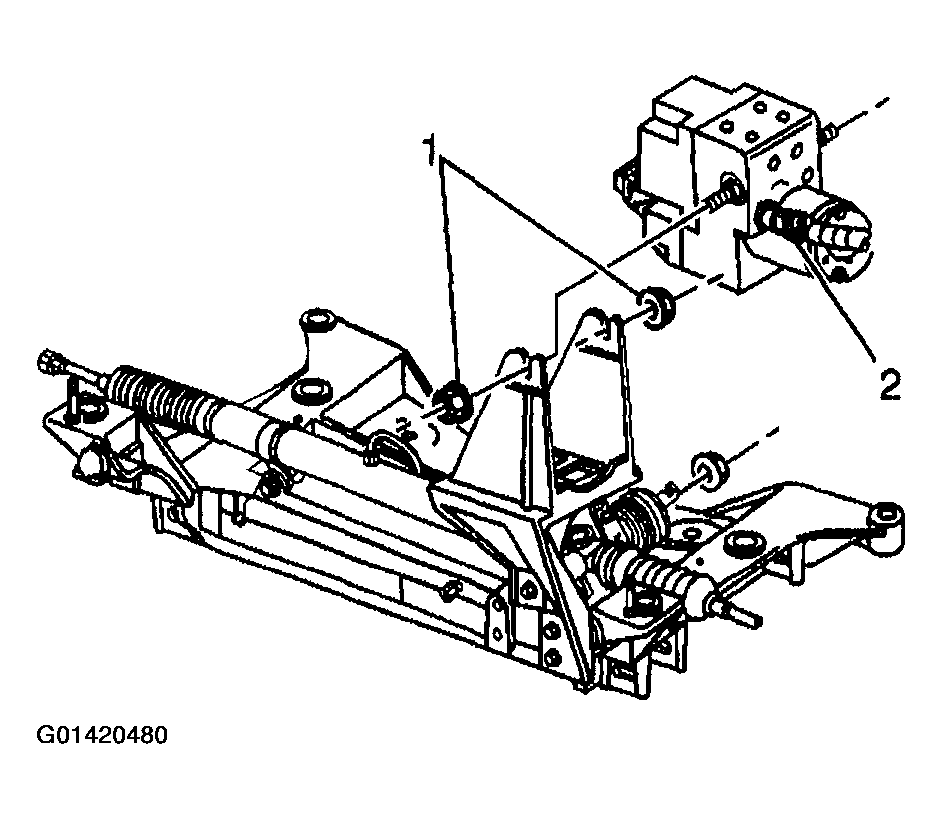

Fig 2: Installing Brake Pressure Modulator Valve (BPMV) Assembly
Courtesy of GENERAL MOTORS CORP.
Install the insulator nuts (1) to the EBCM/BPMV assembly.
Tighten

Tighten the nuts to 12 N.m (106 lb in).
