Wheel Speed Sensor (WSS) - RR

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

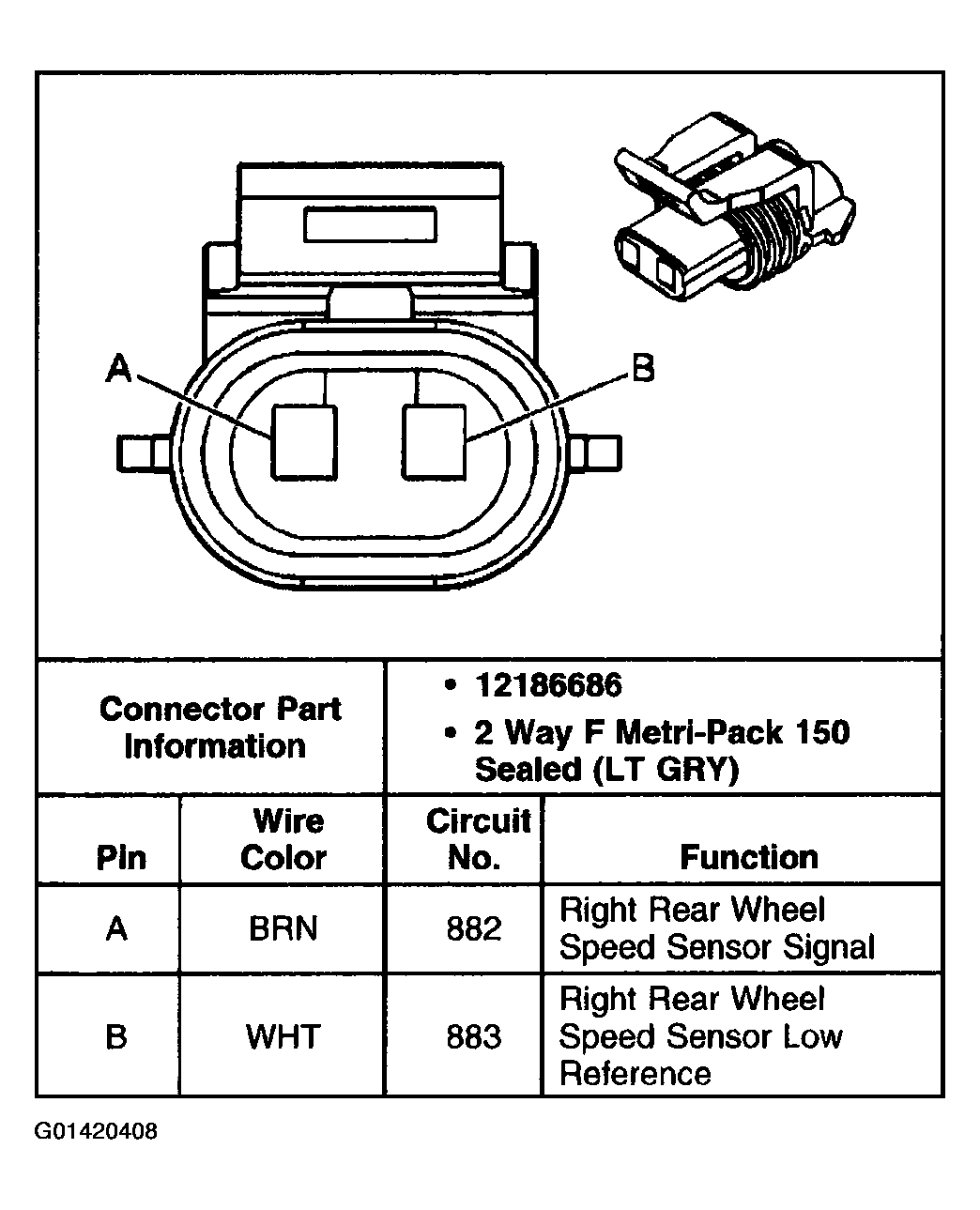

Fig 1: Identifying Wheel Speed Sensor (WSS) - RR Connector Terminals And Description
G01420408Courtesy of GENERAL MOTORS CORP.
