Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driveline support assembly and separate it from the transmission. Refer to DRIVELINE SUPPORT ASSEMBLY REPLACEMENT (AUTOMATIC TRANSMISSION)  or DRIVELINE SUPPORT ASSEMBLY REPLACEMENT (MANUAL TRANSMISSION)
  2. Remove the bolts mounting the flexplate to the flexplate spindle.
  3. Remove the flexplate.

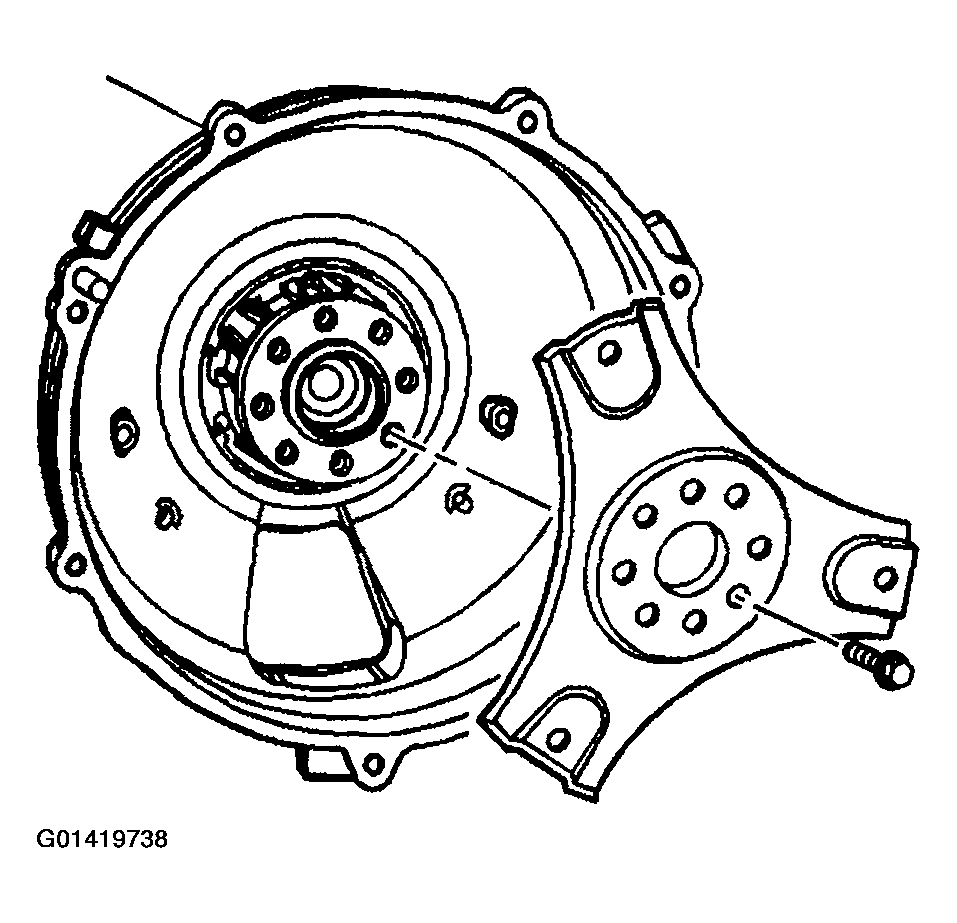

    Fig 1: Removing Flexplate
    G01419738Courtesy of GENERAL MOTORS CORP.
