Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the catalytic converters. Refer to CATALYTIC CONVERTER REPLACEMENT in Engine Exhaust.
  3. Remove the driveline tunnel closeout panel bolts.
  4. Remove the closeout panel.

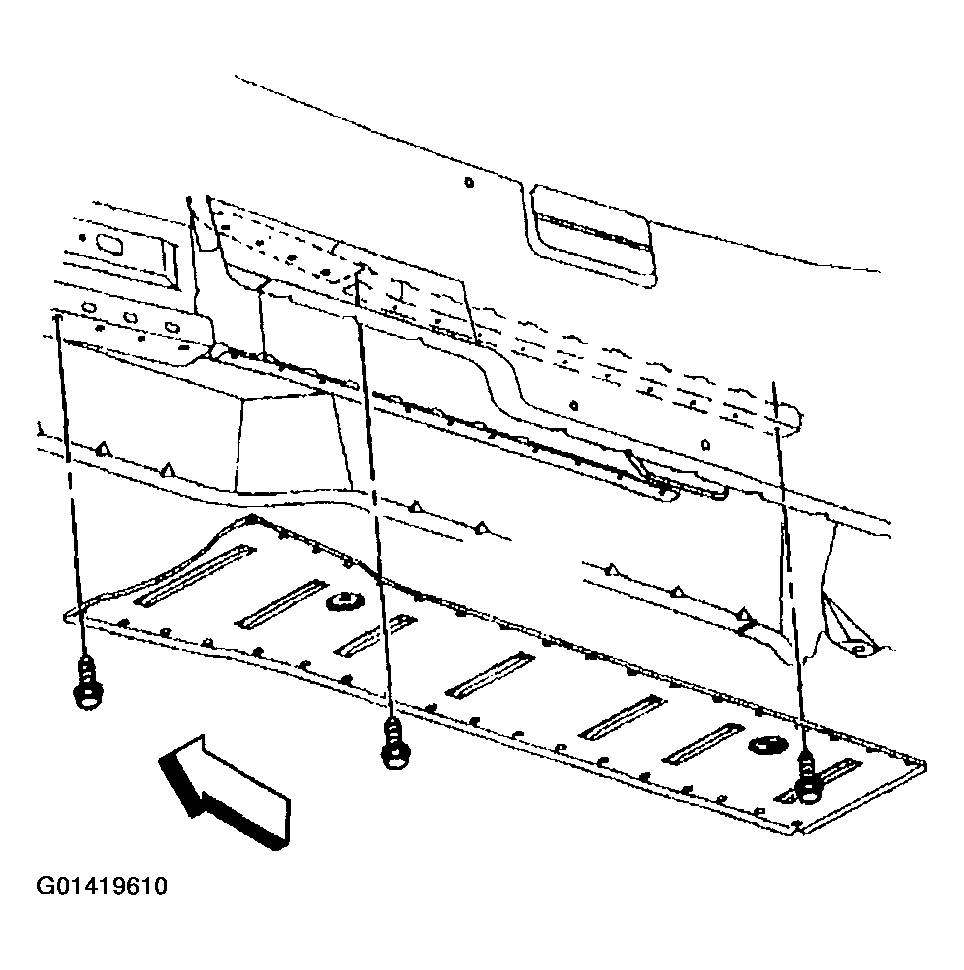

    Fig 1: Removing Driveline Tunnel Closeout Panel
    G01419610Courtesy of GENERAL MOTORS CORP.
