Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the ESC module connectors (3).
  2. Install the ESC module (1) into the mounting bracket.
  3. Secure the LR floor compartment (2) lid.

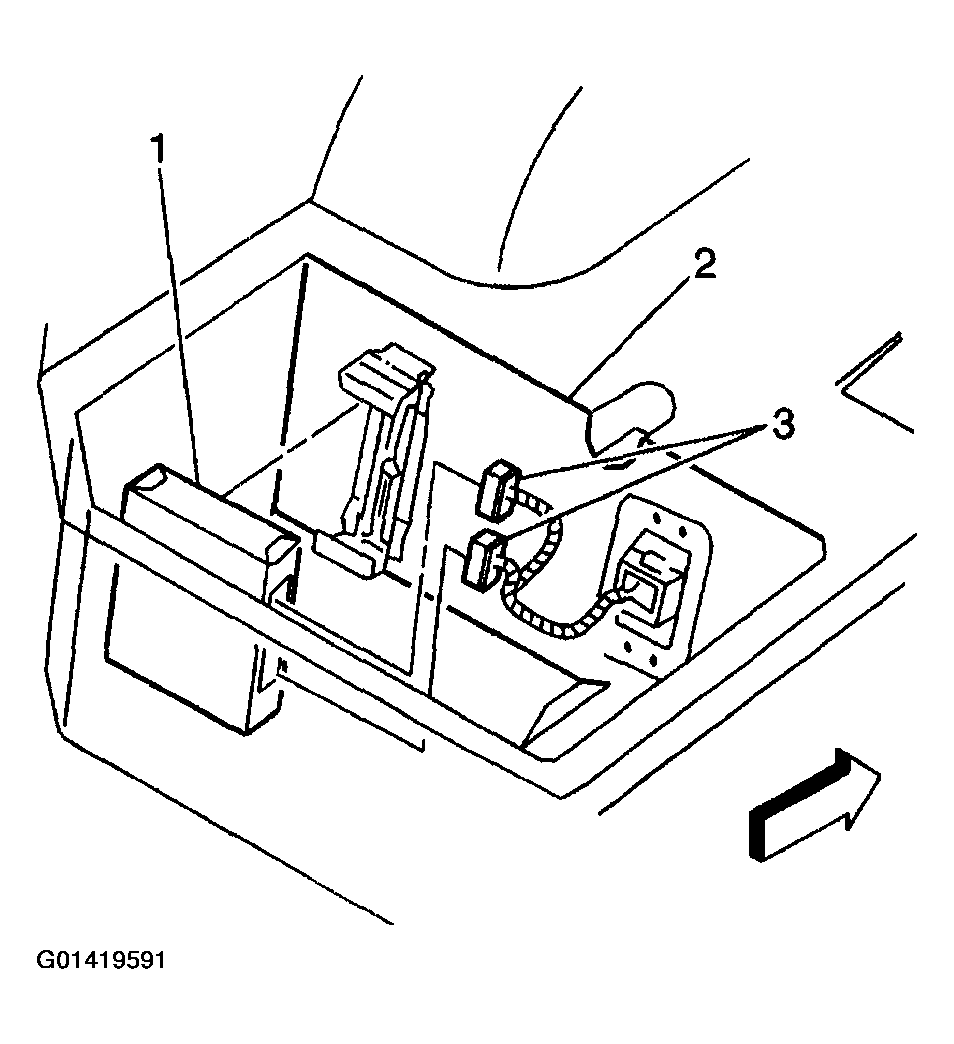

    Fig 1: Connecting ESC Module Connectors
    G01419591Courtesy of GENERAL MOTORS CORP.
