Test Description

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step determines if the Powertrain Induced Chassis Pitch control circuit is shorted to ground.
  2. 3. This step determines if the Powertrain Induced Chassis Pitch control circuit is open or, the PCM is unable to control the Powertrain Induced Chassis Pitch control circuit.

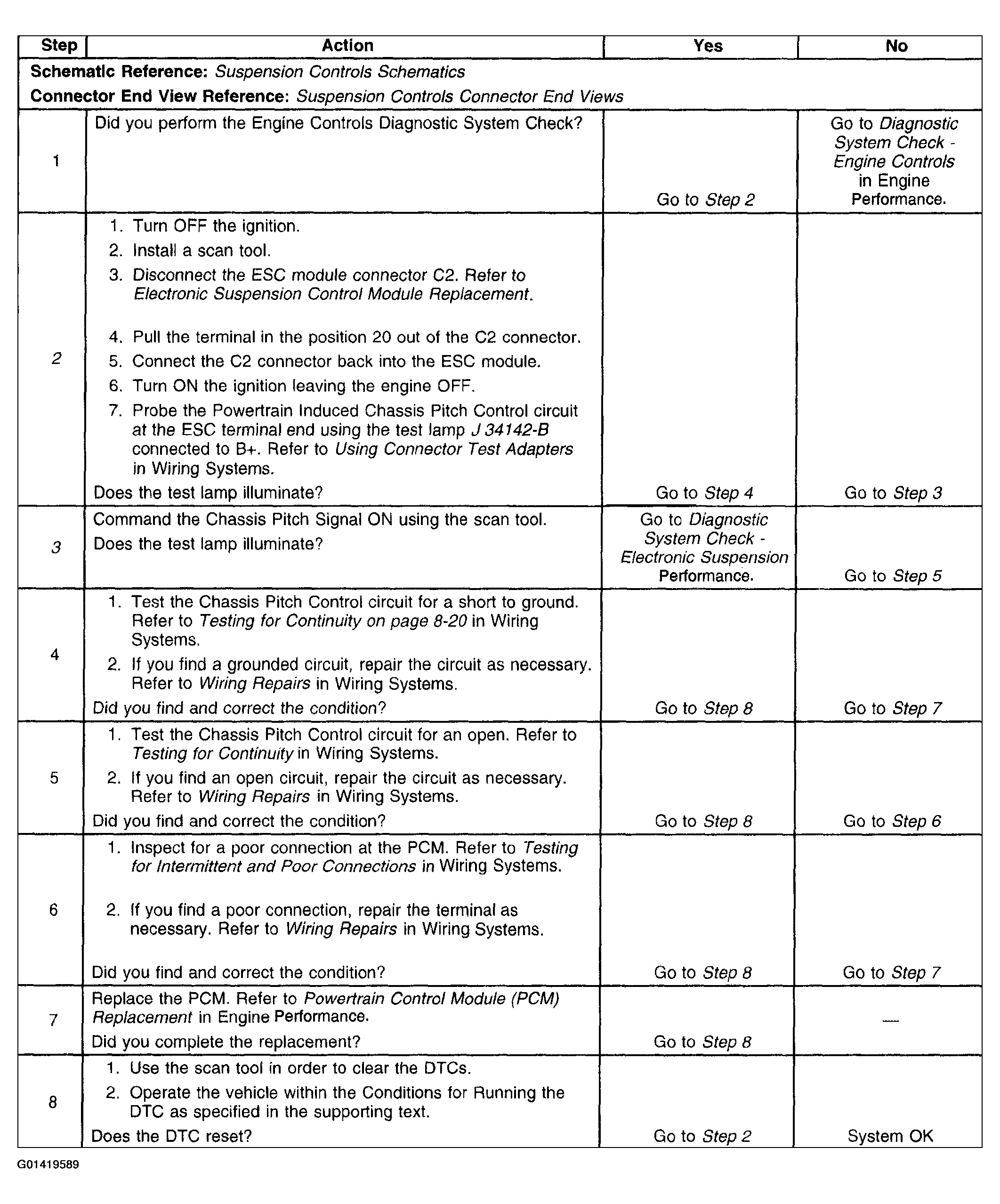

Fig 1: Diagnostic System Check - DTC P1652
G01419589Courtesy of GENERAL MOTORS CORP.
