WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

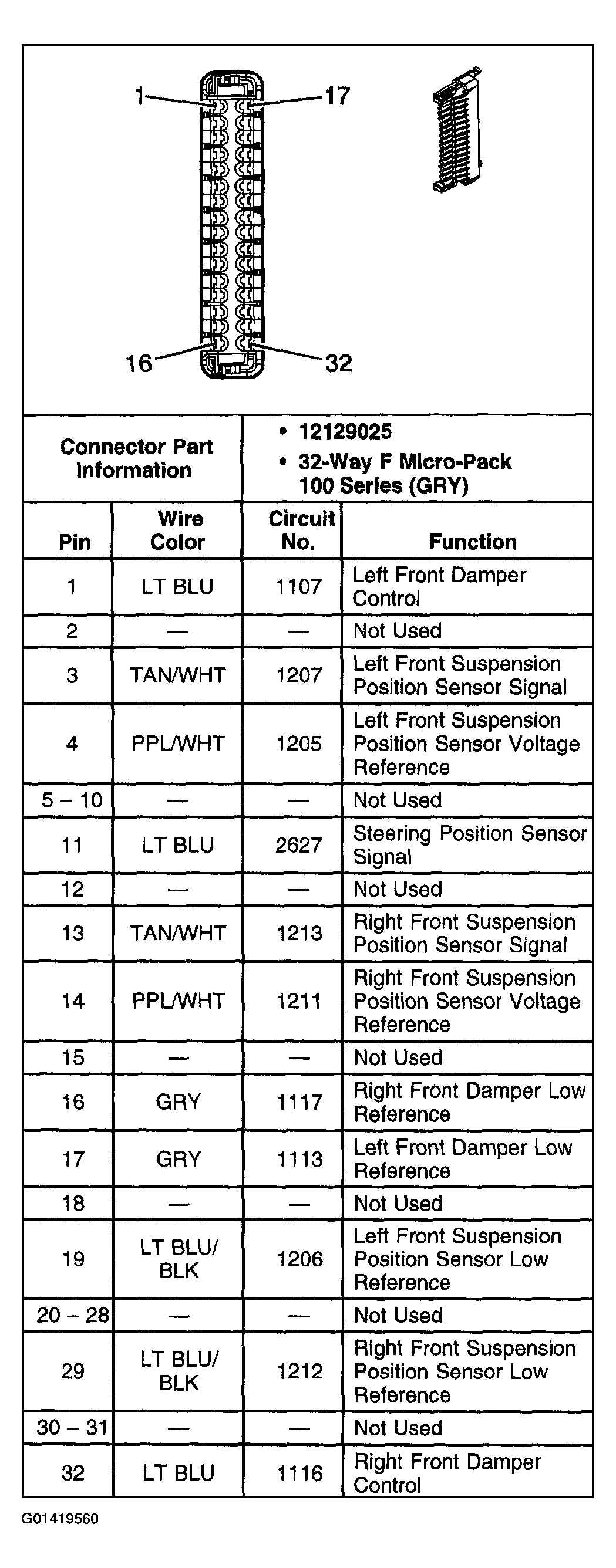

Fig 1: Identifying Electronic Suspension Control (ESC) Module C1
Courtesy of GENERAL MOTORS CORP.

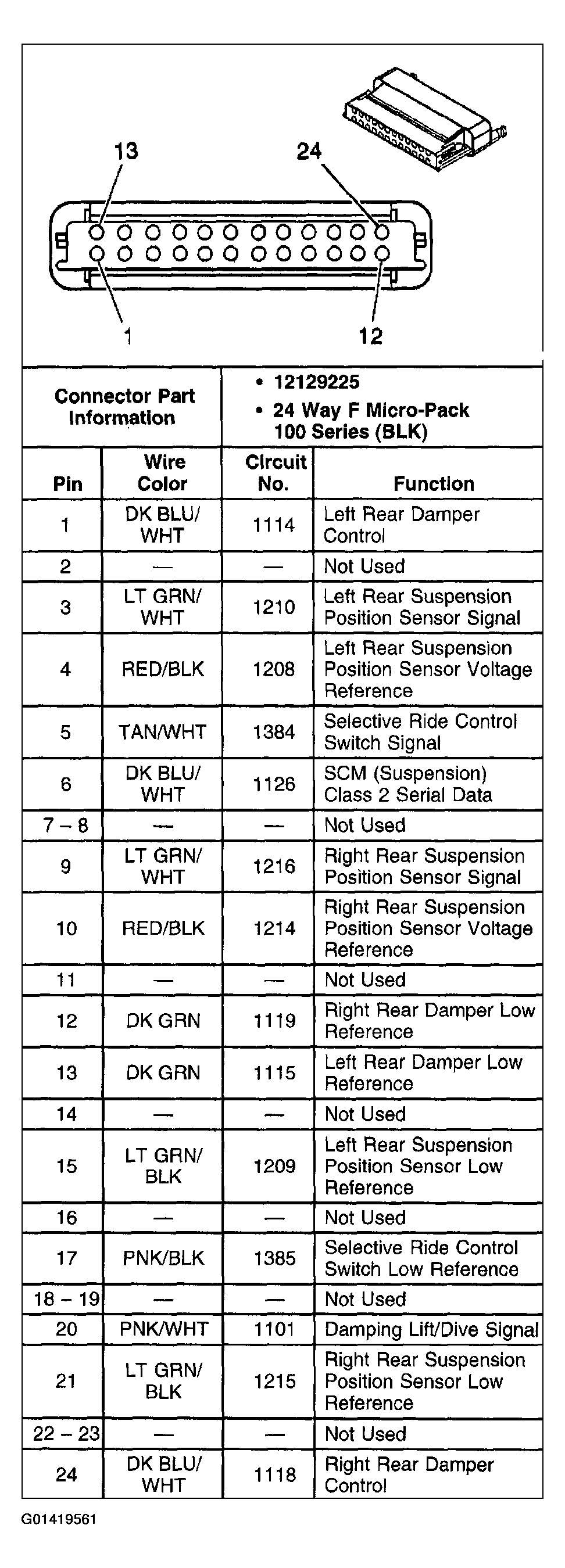

Fig 2: Identifying Electronic Suspension Control (ESC) Module C2
Courtesy of GENERAL MOTORS CORP.

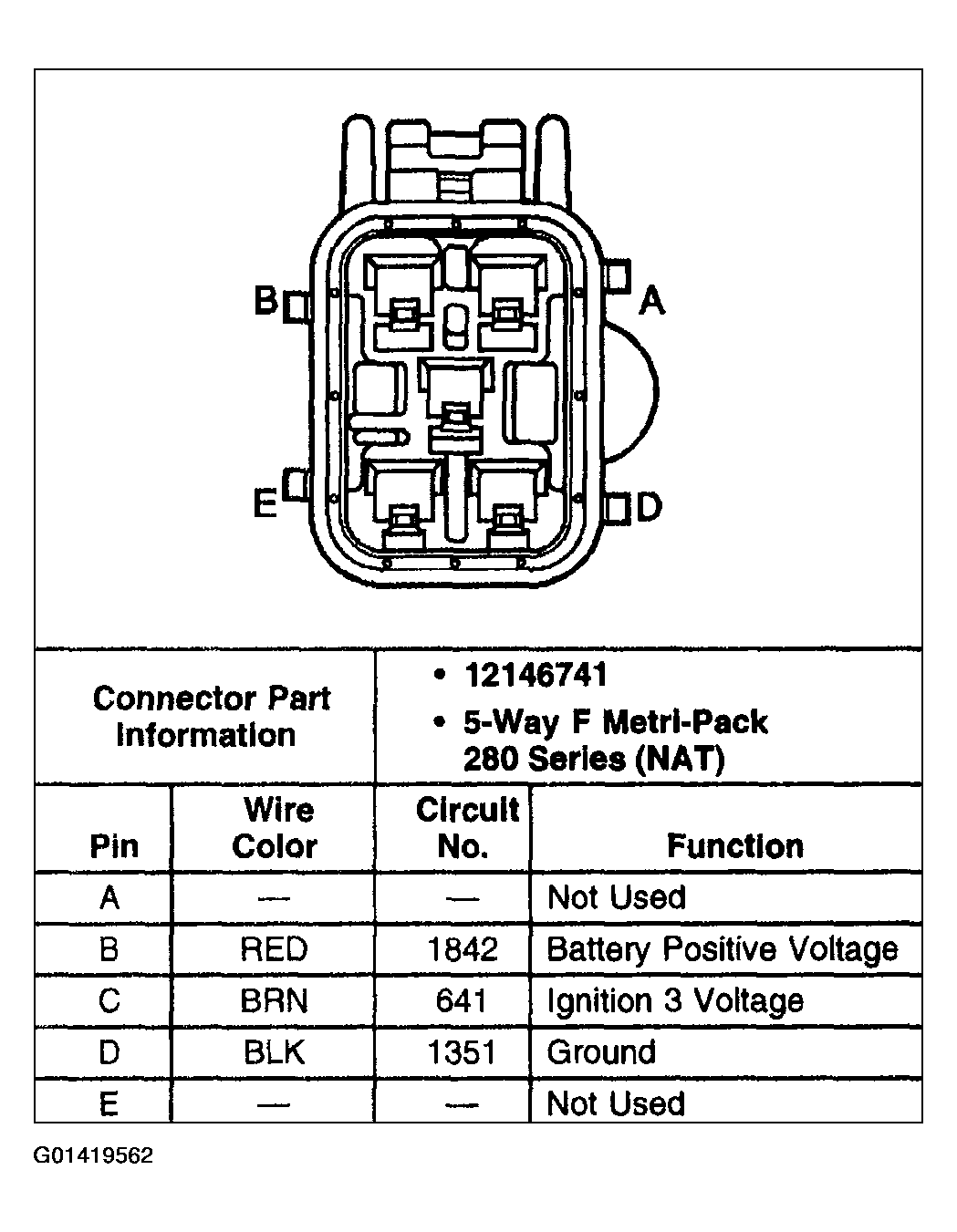

Fig 3: Identifying Electronic Suspension Control (ESC) Module C3
Courtesy of GENERAL MOTORS CORP.

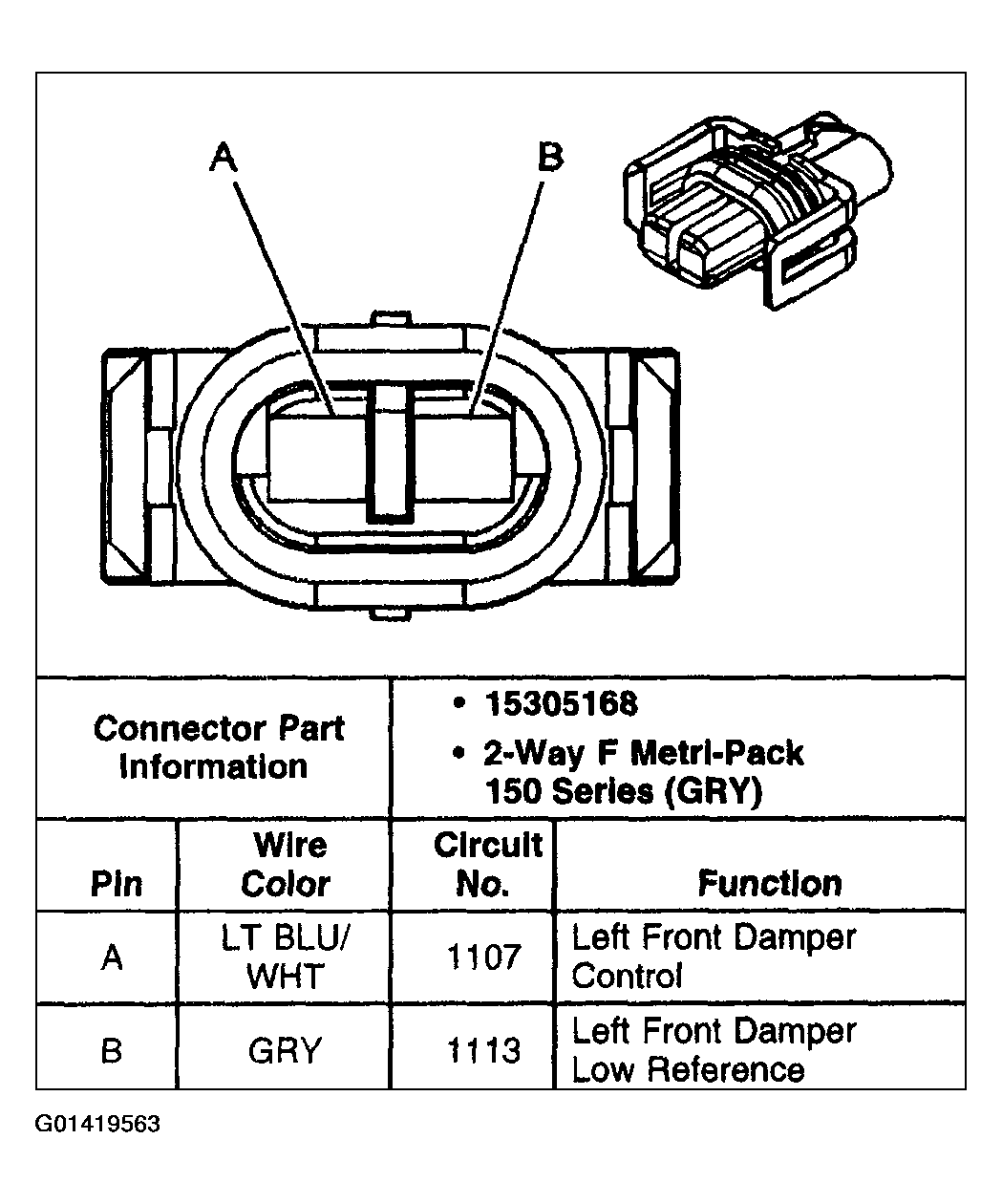

Fig 4: Identifying Suspension Damper - LF
Courtesy of GENERAL MOTORS CORP.

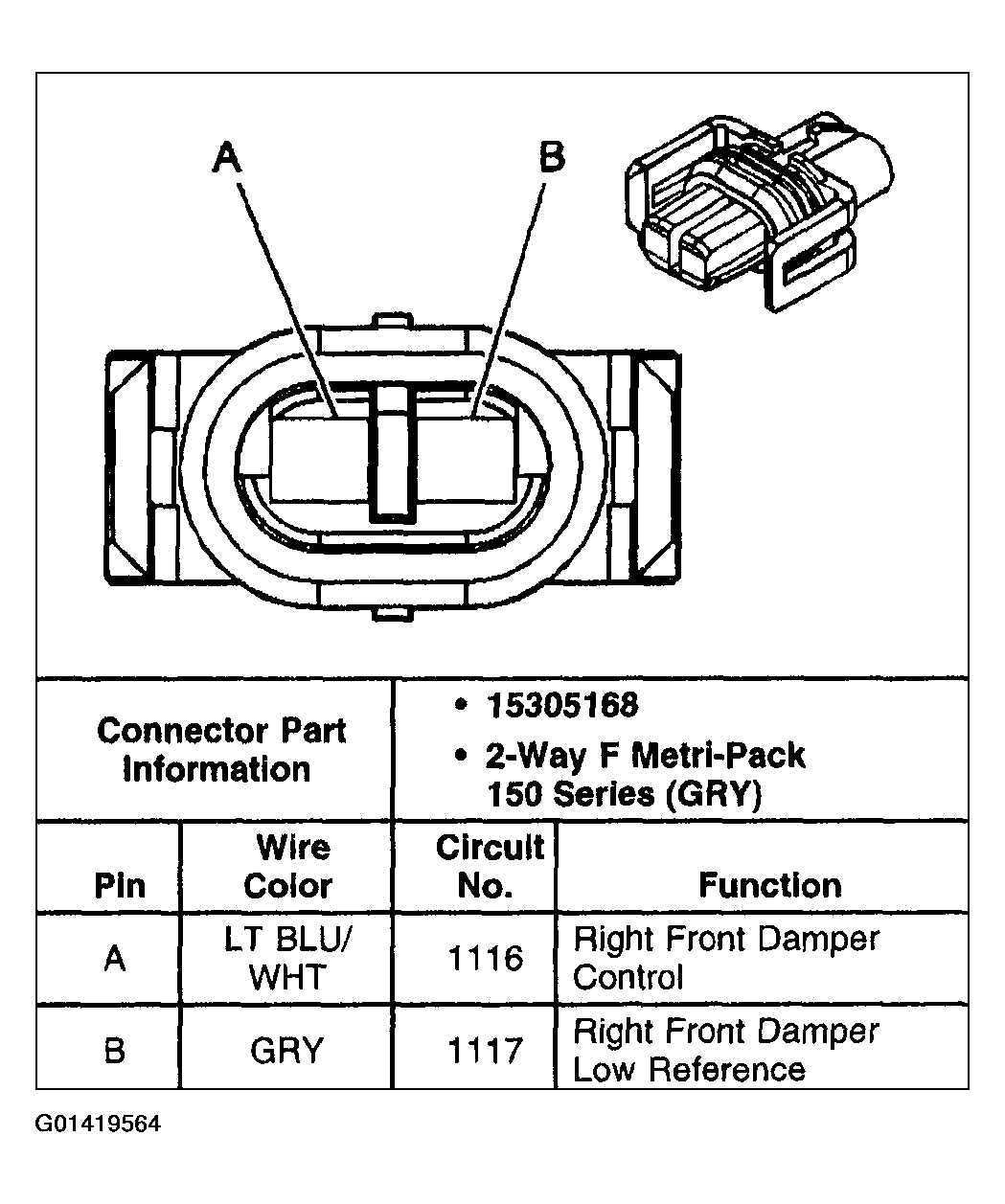

Fig 5: Identifying Suspension Damper - RF
Courtesy of GENERAL MOTORS CORP.

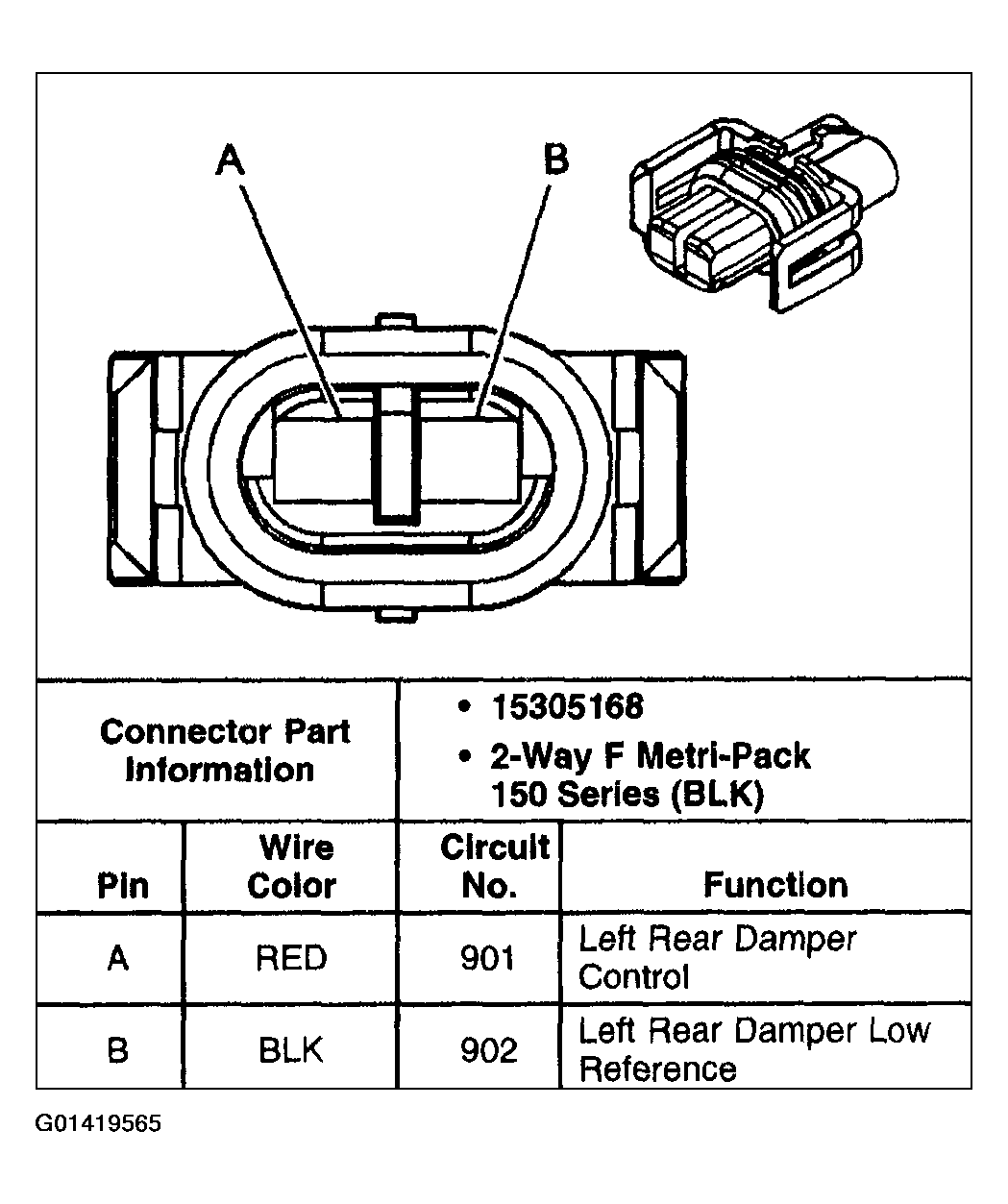

Fig 6: Identifying Suspension Damper - LR
Courtesy of GENERAL MOTORS CORP.

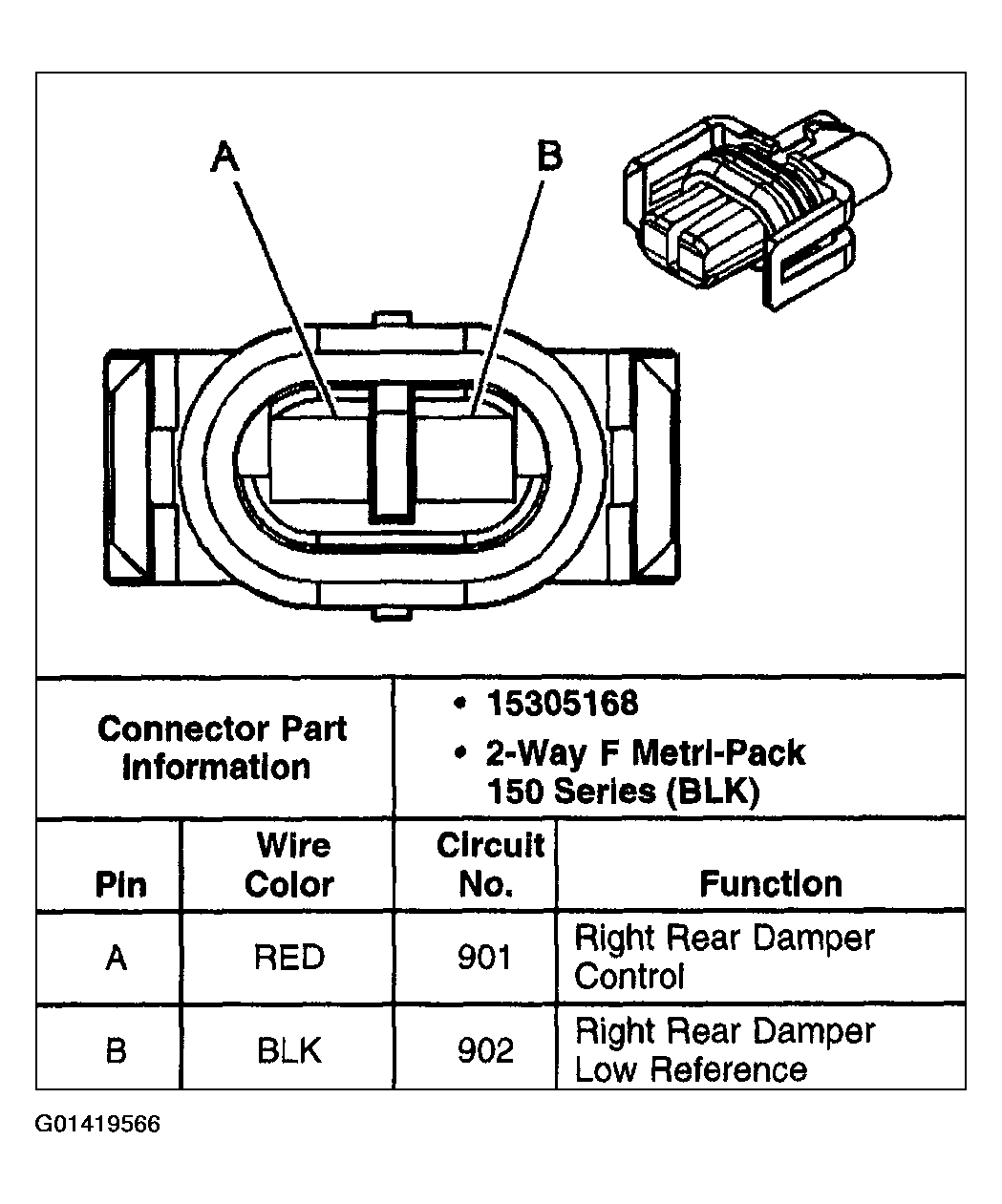

Fig 7: Identifying Suspension Damper - RR
Courtesy of GENERAL MOTORS CORP.

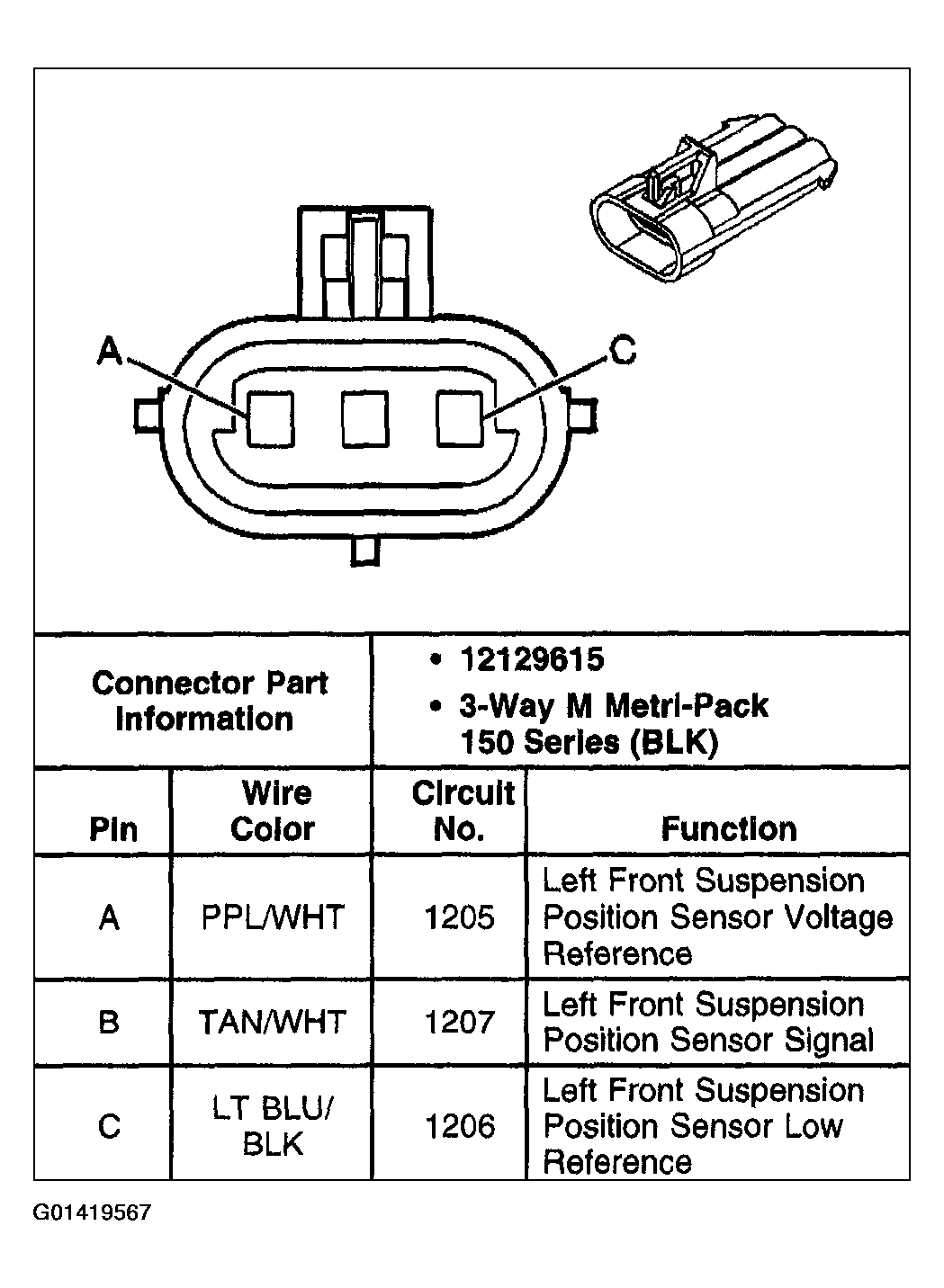

Fig 8: Identifying Suspension Position Sensor - LF
Courtesy of GENERAL MOTORS CORP.

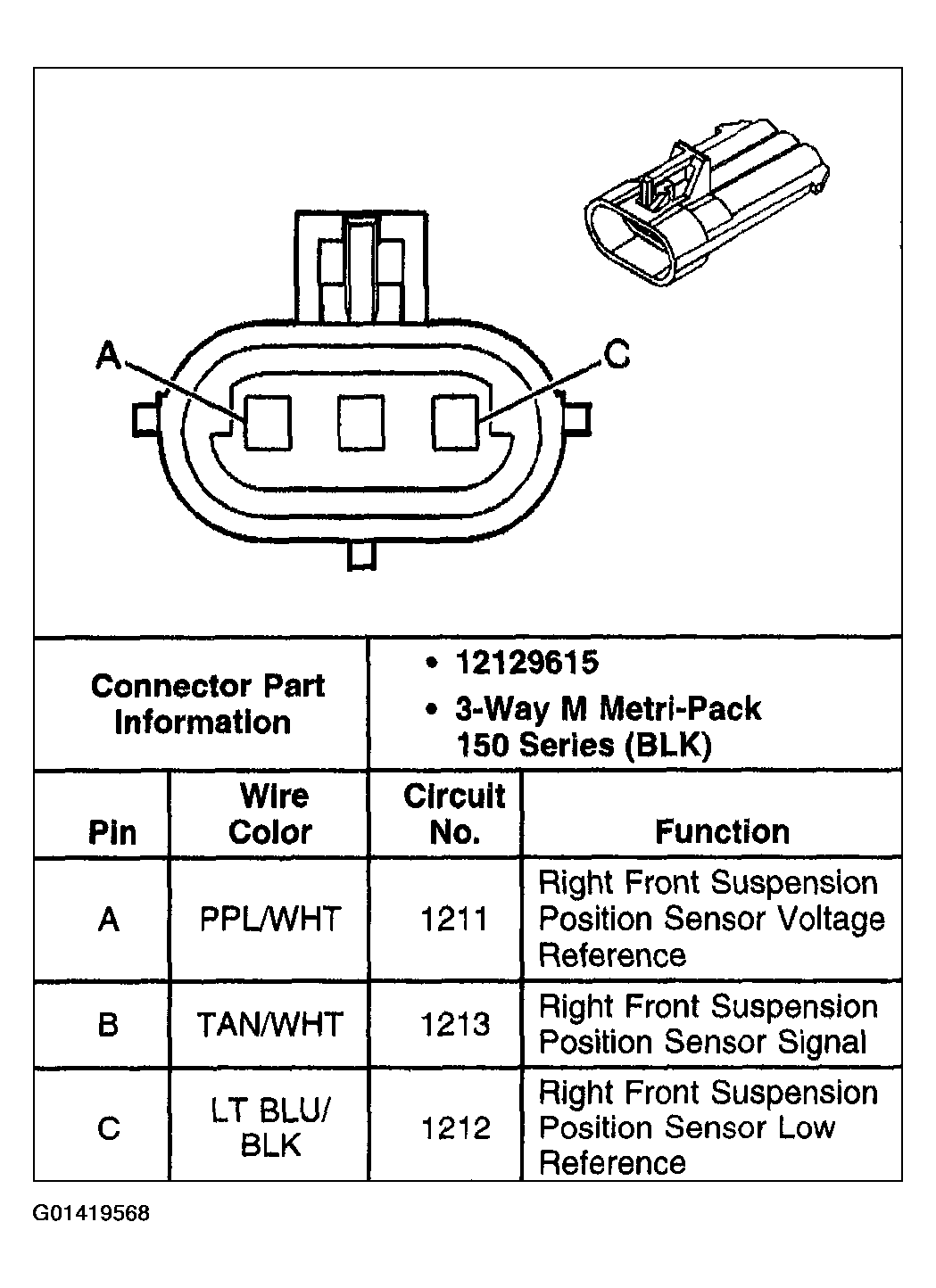

Fig 9: Identifying Suspension Position Sensor - RF
Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying Suspension Position Sensor - LR
Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Suspension Position Sensor - RR
