Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Support the vehicle with suitable safety stands. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the wheel nuts from the tire and wheel assembly.

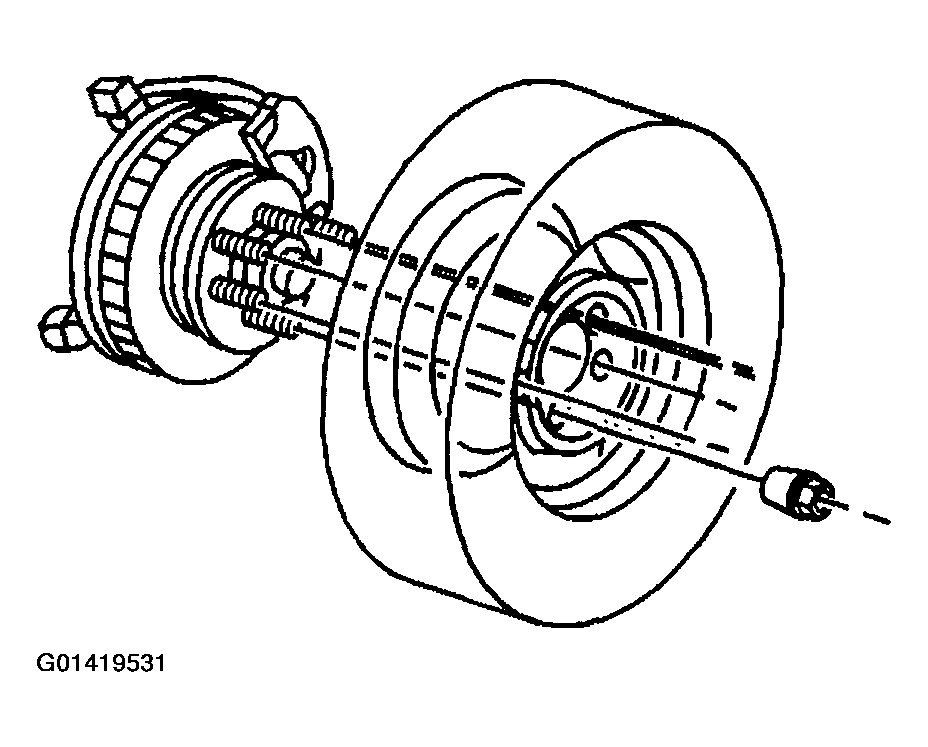

    Fig 1: Removing Wheel Nuts From Tire And Wheel Assembly
    G01419531Courtesy of GENERAL MOTORS CORP.
  3. Mark the location of the tire and wheel assembly to the hub assembly.
  4. Remove the tire and wheel assembly from the vehicle.
  5. Clean the wheel nuts, studs and the wheel and rotor mounting surfaces.
