Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The Front and Rear Wheel Hub/Wheel Speed Sensors are not interchangeable. When you are replacing a Wheel Hub/Wheel Speed Sensor be sure to use the correct Wheel Hub/Wheel Speed Sensor part number. Do not mount the Rear Wheel Hub/Wheel Speed Sensor in the front steering knuckle. The Rear Wheel Hub/Wheel Speed Sensor features a splined hole through the center of the bearing which mates to the drive axle. The Rear Wheel Hub/Wheel Speed Sensor requires the support of the drive axle and the drive axle nut clamped joint to properly carry the vehicle loads. Mounting the Rear Wheel Hub/Wheel Speed Sensor in the front steering knuckle can cause bearing failure and possible damage to the vehicle.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Disconnect the wheel speed sensor electrical connector.

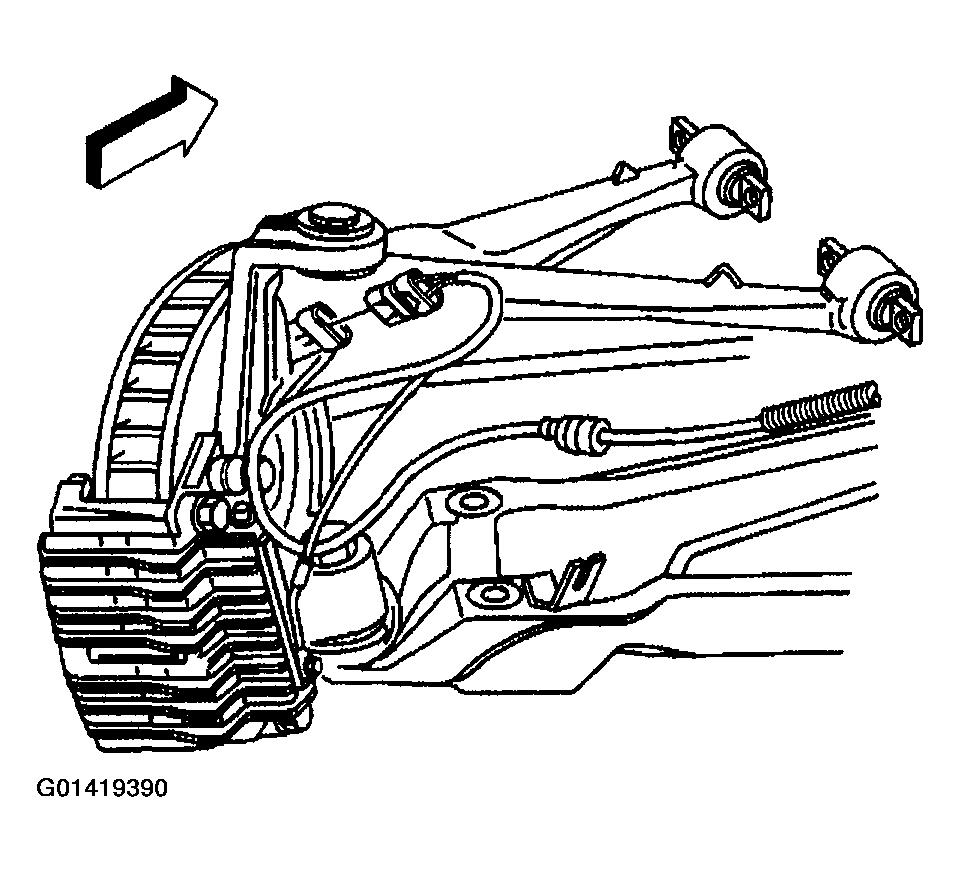

    Fig 1: Disconnecting Wheel Speed Sensor Electrical Connector
    G01419390Courtesy of GENERAL MOTORS CORP.
  4. Remove the brake caliper and rotor. Refer to FRONT BRAKE ROTOR and FRONT BRAKE CALIPER .
  5. Remove the stabilizer shaft link from the lower control arm.

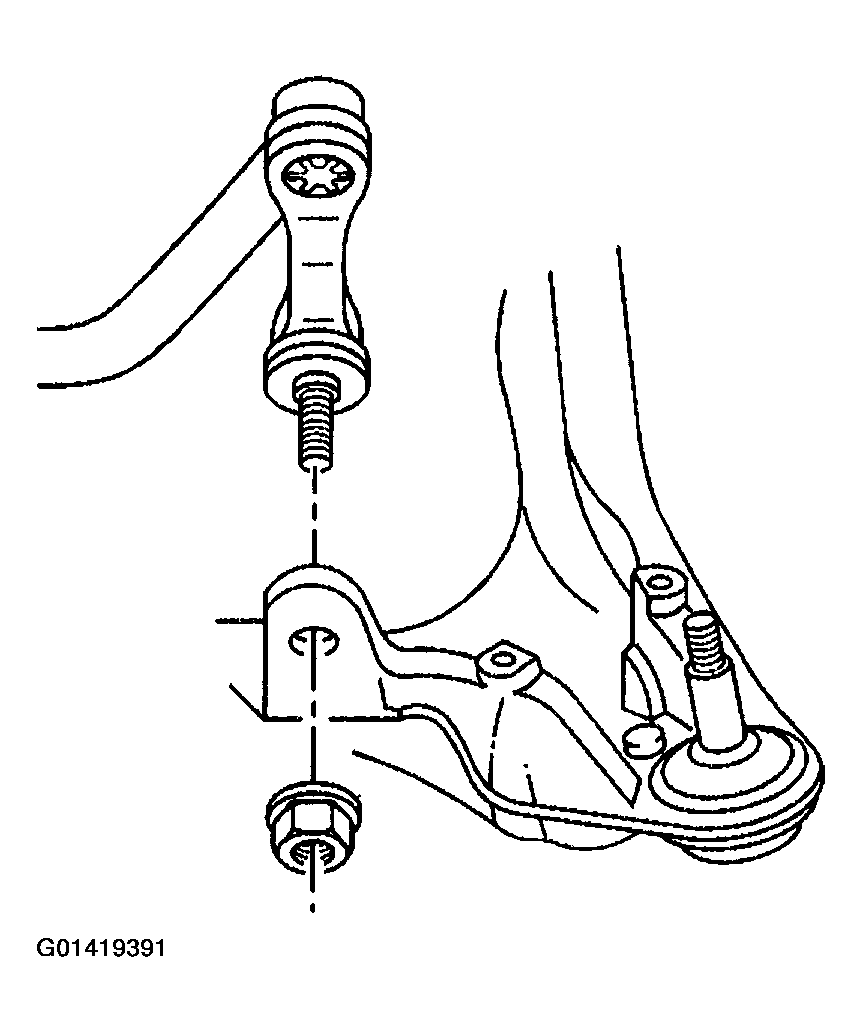

    Fig 2: Removing Stabilizer Shaft Link From Lower Control Arm
    G01419391Courtesy of GENERAL MOTORS CORP.
  6. Support the lower control arm using a jackstand.
  7. Separate the outer tie rod ball stud from the steering knuckle using J 42188  . Refer to TIE ROD END REPLACEMENT - OUTER in Power Steering Systems.
  8. Separate the lower ball joint stud from the steering knuckle using J 42188  . Refer to LOWER CONTROL ARM REPLACEMENT  .

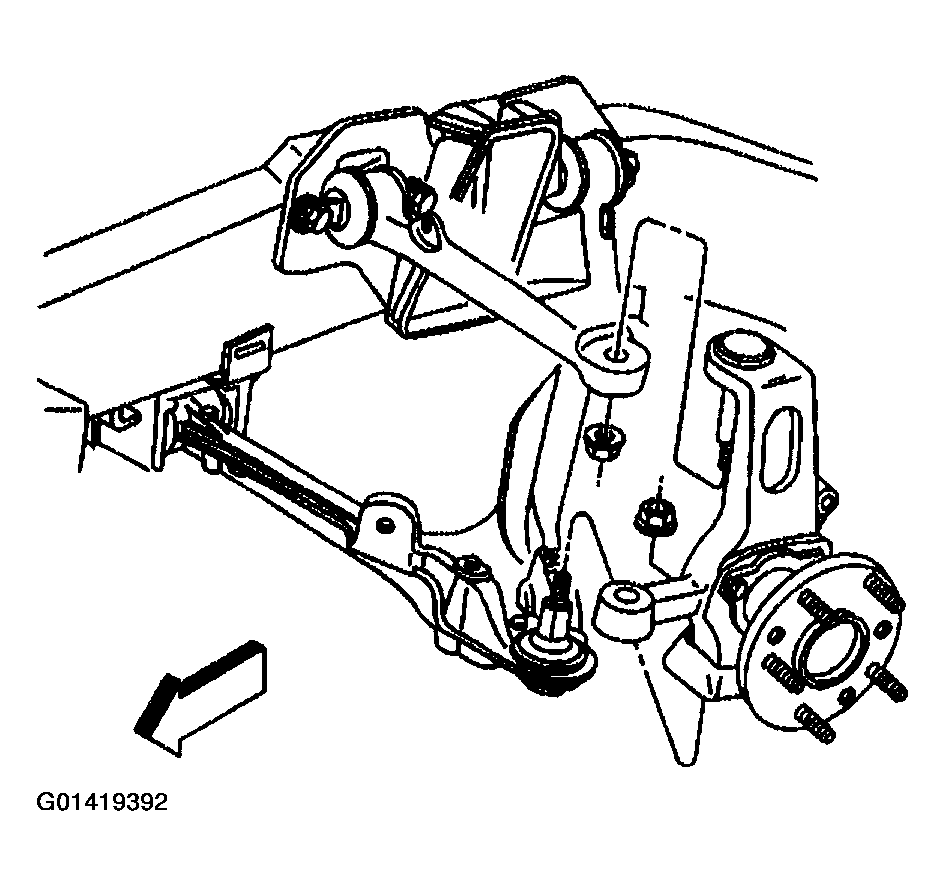

    Fig 3: Removing Lower Ball Joint Stud From Steering Knuckle
    G01419392Courtesy of GENERAL MOTORS CORP.
  9. Remove the wheel hub mounting bolts.
  10. Remove the hub and bearing assembly from the steering knuckle.

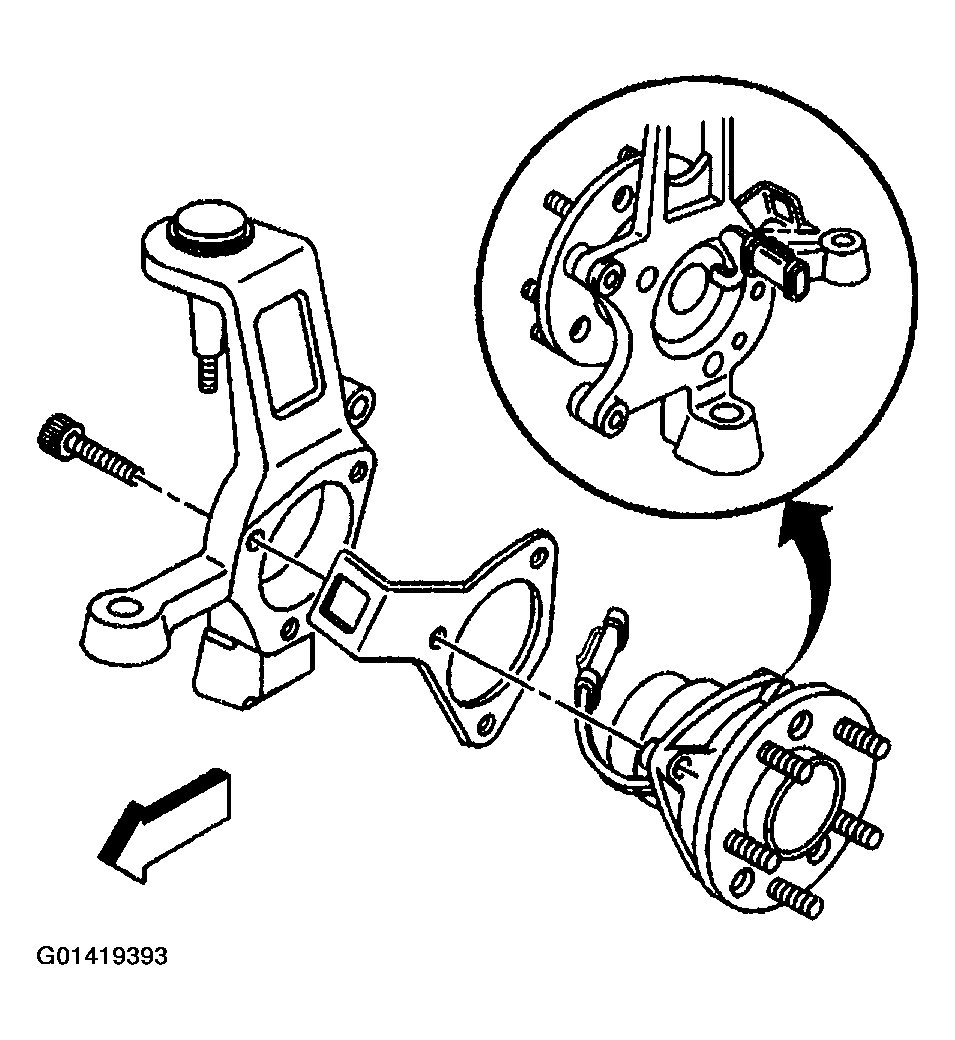

Fig 4: Removing Hub & Bearing Assembly
G01419393Courtesy of GENERAL MOTORS CORP.
