Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering knuckle from the vehicle. Refer to STEERING KNUCKLE REPLACEMENT  .
  2. Remove the ball joint from the steering knuckle using J 9519-E  and J 21474-5  .

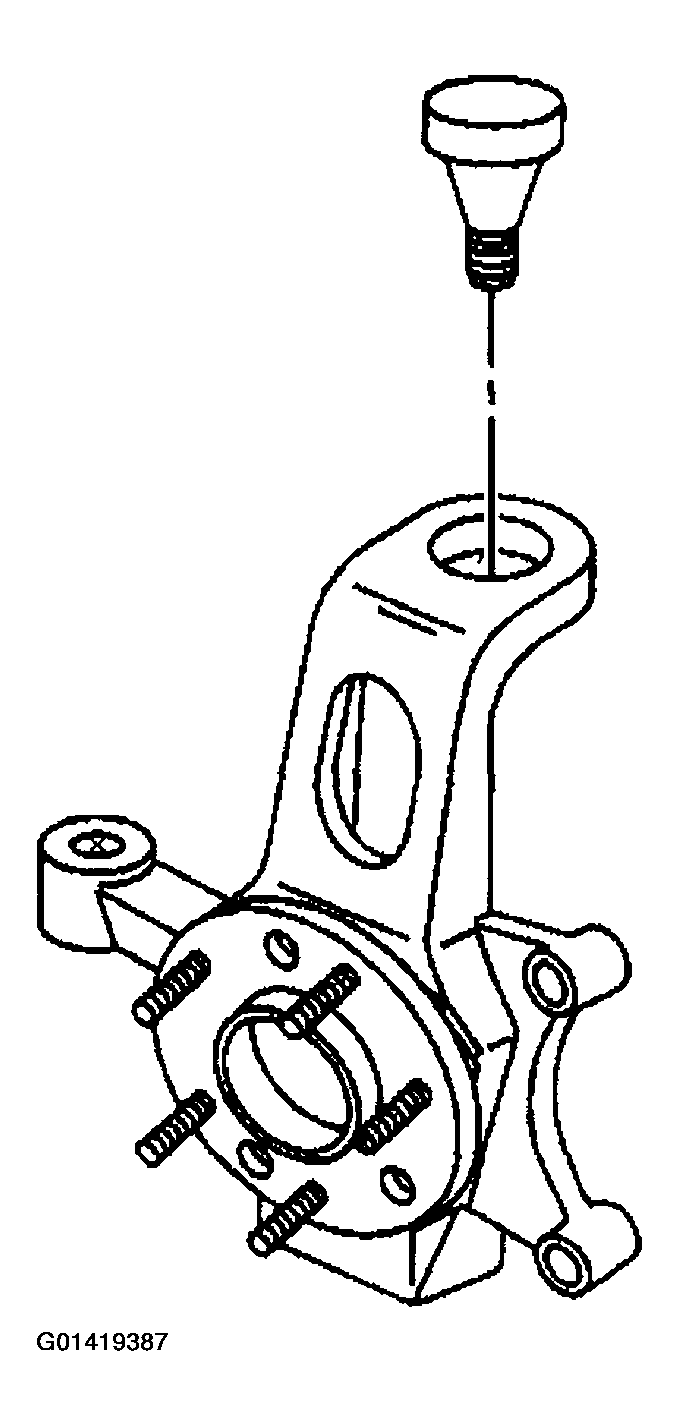

Fig 1: Removing Ball Joint From Steering Knuckle
G01419387Courtesy of GENERAL MOTORS CORP.
