Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the stabilizer shaft link nuts.
  4. Remove the stabilizer shaft link from the stabilizer shaft and lower control arm.

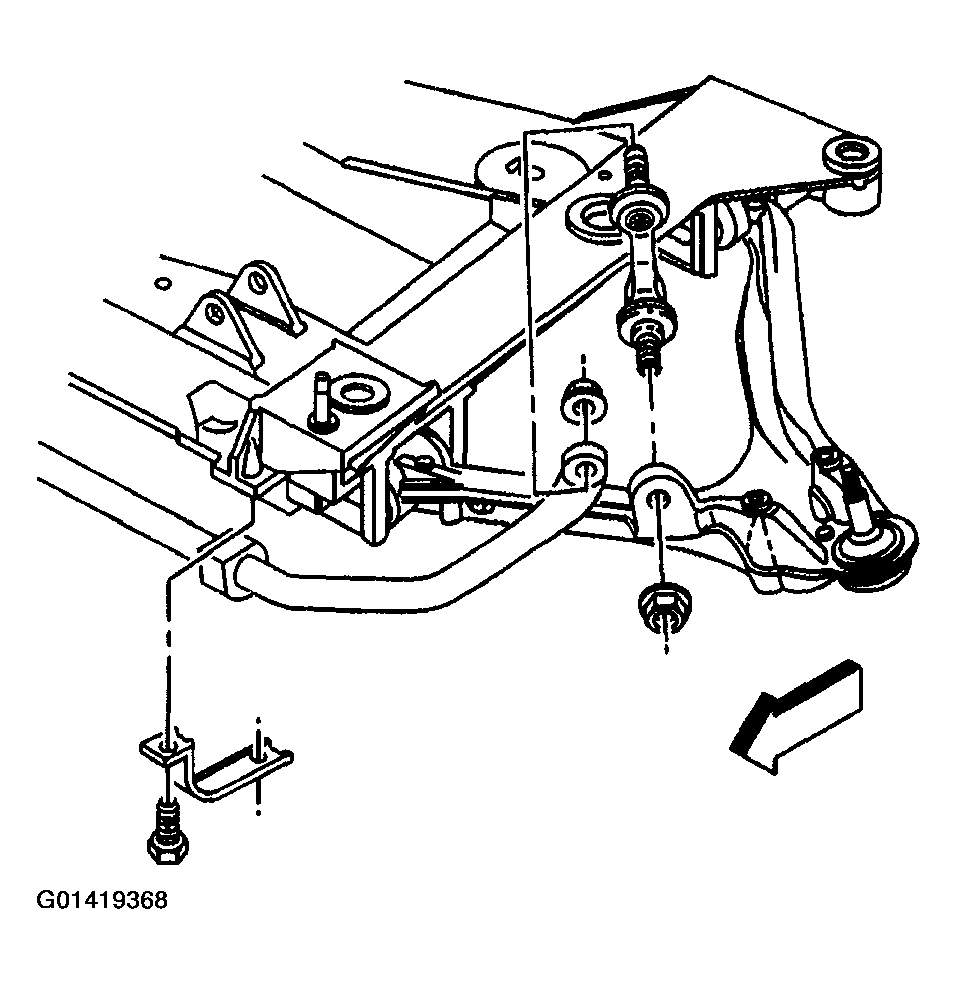

Fig 1: Removing Stabilizer Shaft Link
G01419368Courtesy of GENERAL MOTORS CORP.
