Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Raise the crossmember to the vehicle.
1. Align the crossmember dowel pins to the frame rails.
2. Align the engine mount studs.
NOTE: Refer to FASTENER NOTICE .
Install new crossmember mounting nuts.

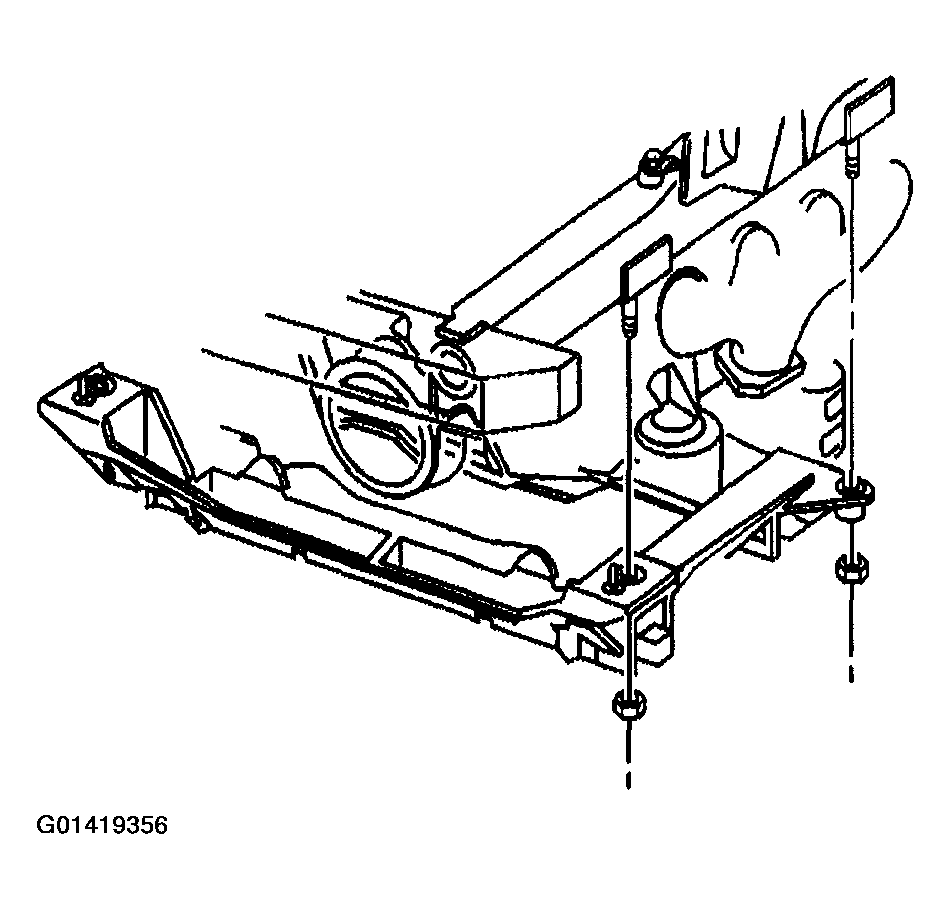

Fig 1: Installing Crossmember Mounting Nuts
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the new crossmember mounting nuts to 110 N.m (81 lb ft).
Install the engine mount lower nuts. Refer to one of the following procedures:
- ENGINE MOUNT REPLACEMENT-LEFT in Engine Mechanical
- ENGINE MOUNT REPLACEMENT-RIGHT in Engine Mechanical
Fasten the wheel speed sensor wiring harness retaining clips to the crossmember.

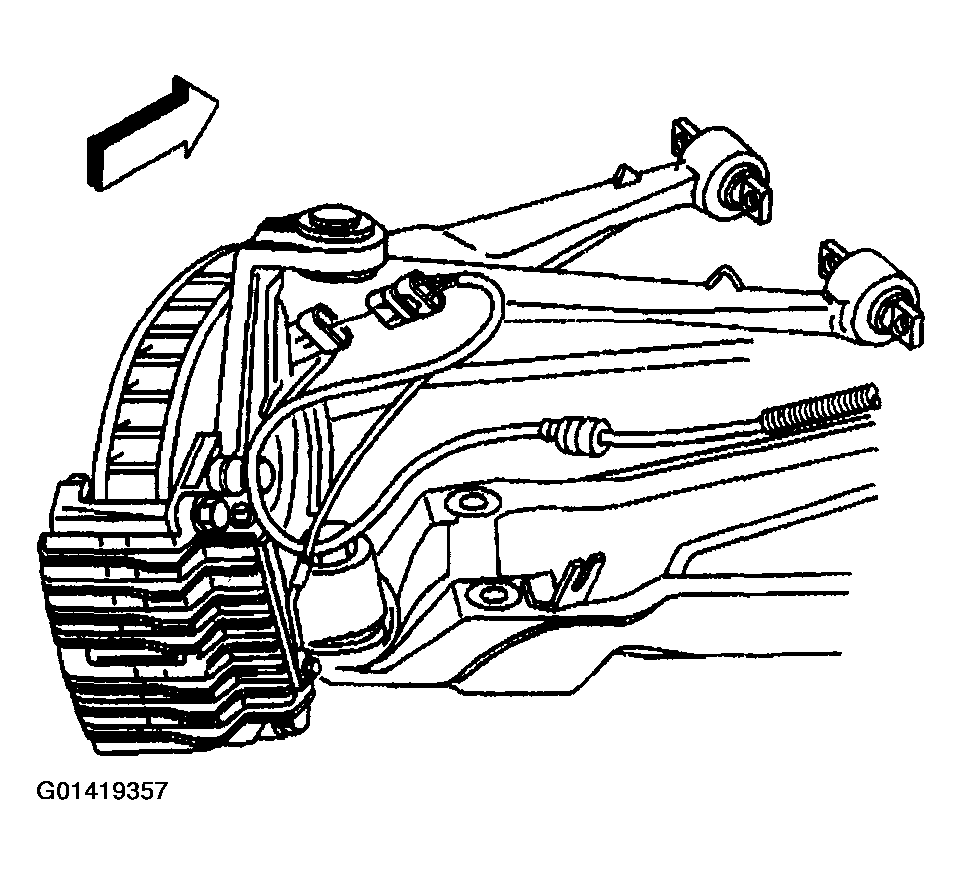

Fig 2: Installing Wheel Speed Sensor Wiring Harness Retaining Clips To Crossmember
Courtesy of GENERAL MOTORS CORP.
Fasten the brake pipe to the retaining clips on the crossmember.
Connect the electrical harness to the clips on the crossmember.

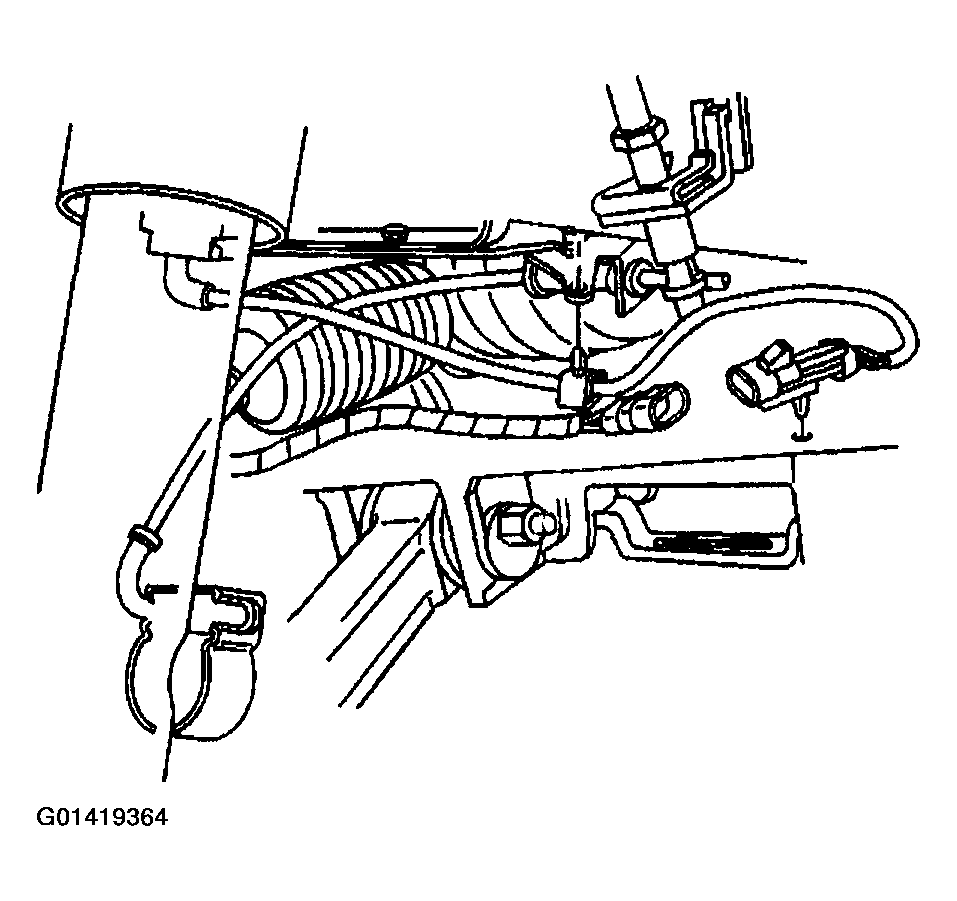

Fig 3: Connecting Electrical Harness To Clips On Crossmember
Courtesy of GENERAL MOTORS CORP.
Connect the brake pipe to the clips on the crossmember.

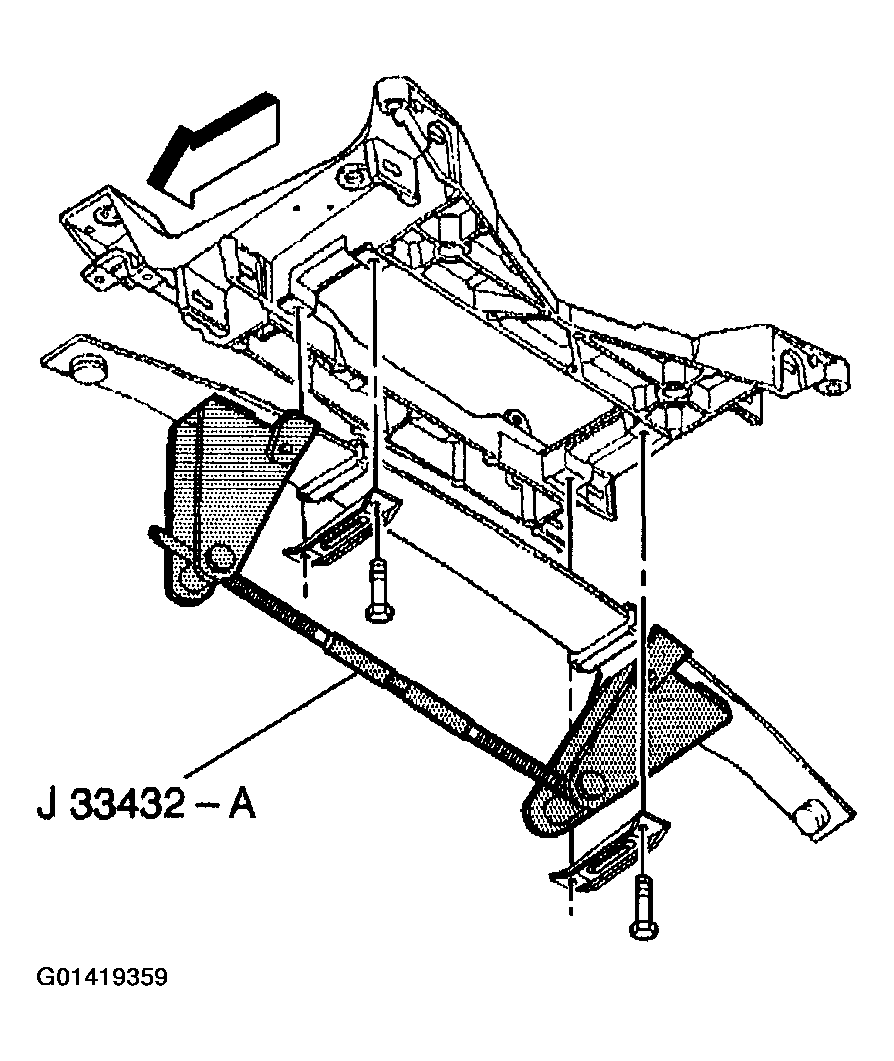

Install the transverse spring with the J 33432-A connected, to the crossmember. Refer to FRONT TRANSVERSE SPRING REPLACEMENT .

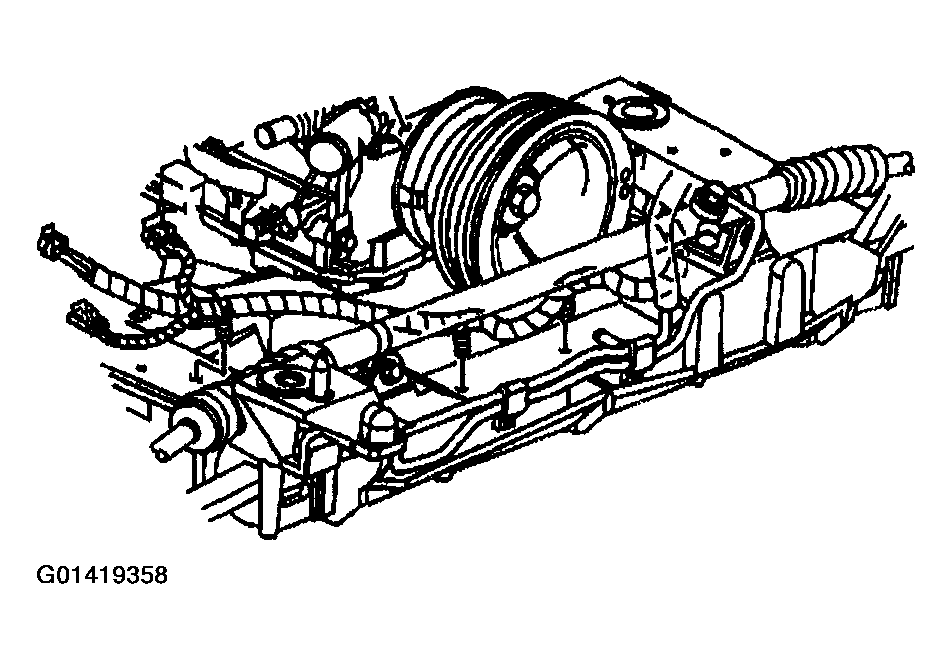

Fig 4: Installing Transverse Spring
Courtesy of GENERAL MOTORS CORP.
Install the lower control arm to the crossmember. Refer to LOWER CONTROL ARM REPLACEMENT .

Fig 5: Installing Lower Control Arm To Crossmember
Courtesy of GENERAL MOTORS CORP.
Install the shock absorbers to the lower control arms.

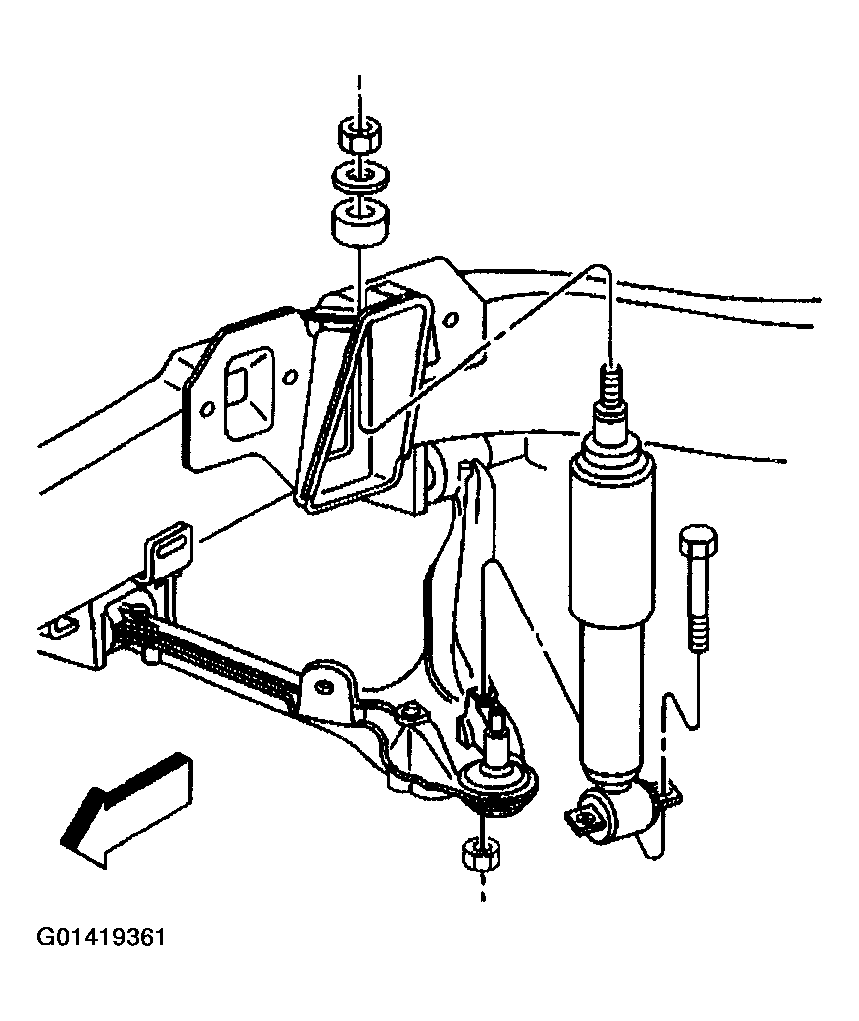

Fig 6: Installing Shock Absorbers To Lower Control Arms
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the shock absorber lower mounting nuts to 28 N.m (21 lb ft).
Install the power steering gear to the crossmember.

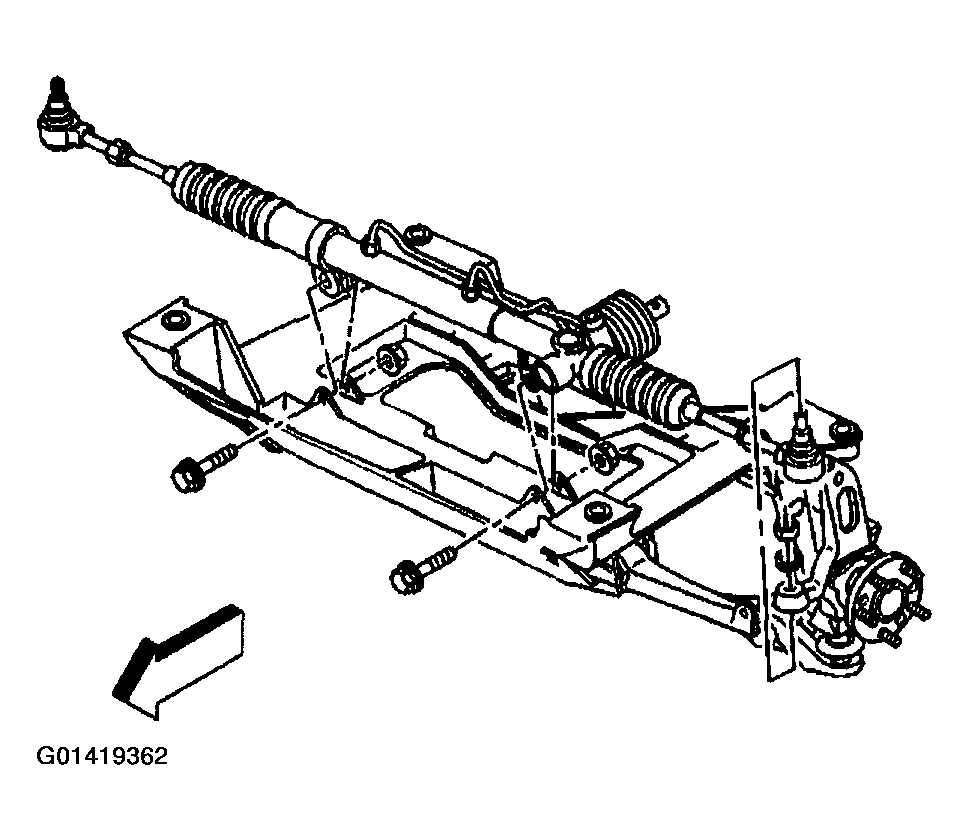

Fig 7: Installing Power Steering Gear To Crossmember
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the power steering gear mounting bolts to 100 N.m (74 lb ft).
Install the bolts to the brake pressure modulator valve bracket. Refer to BRAKE PRESSURE MODULATOR VALVE (BPMV) BRACKET REPLACEMENT in Antilock Brake System.
Connect the intermediate shaft to the steering gear. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT in Steering Wheel and Column.
Install the steering linkage outer tie rod ends to the steering knuckles. Refer to TIE ROD END REPLACEMENT - OUTER in Power Steering Systems.

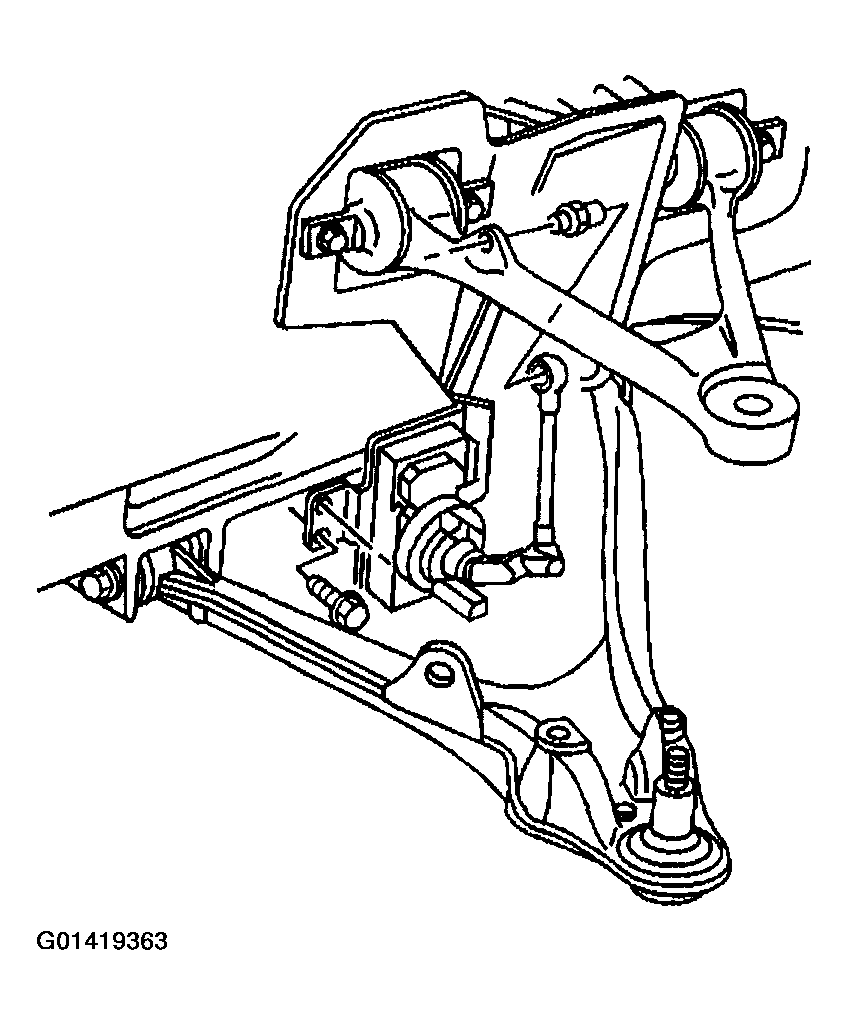

Connect the ESC sensor links to the upper control arm, if equipped.

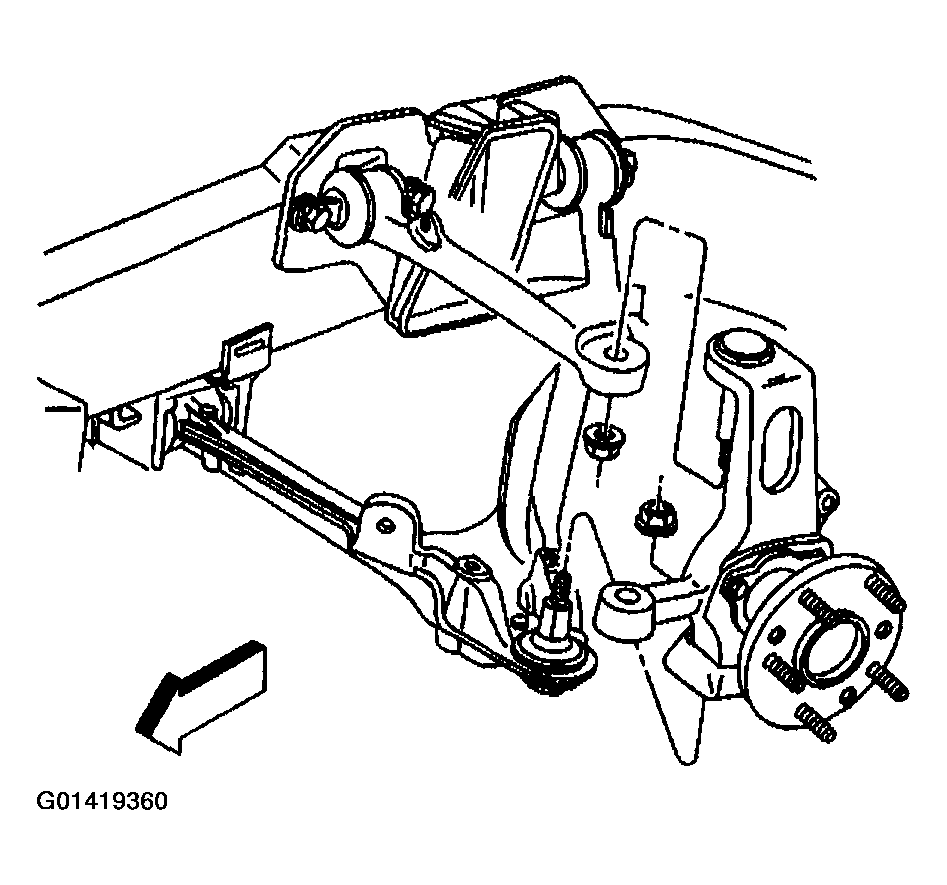

Fig 8: Connecting ESC Sensor Links
Courtesy of GENERAL MOTORS CORP.
Connect the shock absorber solenoid electrical connector, if equipped.

Fig 9: Connecting Shock Absorber Solenoid Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the stabilizer shaft to the vehicle. Refer to STABILIZER SHAFT REPLACEMENT .
Install the tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
Lower the vehicle.
Remove J 41803 and J 28467-B from the engine.
Install the generator. Refer to GENERATOR in Engine Electrical.
Install the washer pump/reservoir. Refer to WASHER SOLVENT CONTAINER REPLACEMENT in Wipers/Washer Systems.
Install the engine coolant temperature switch electrical connector.

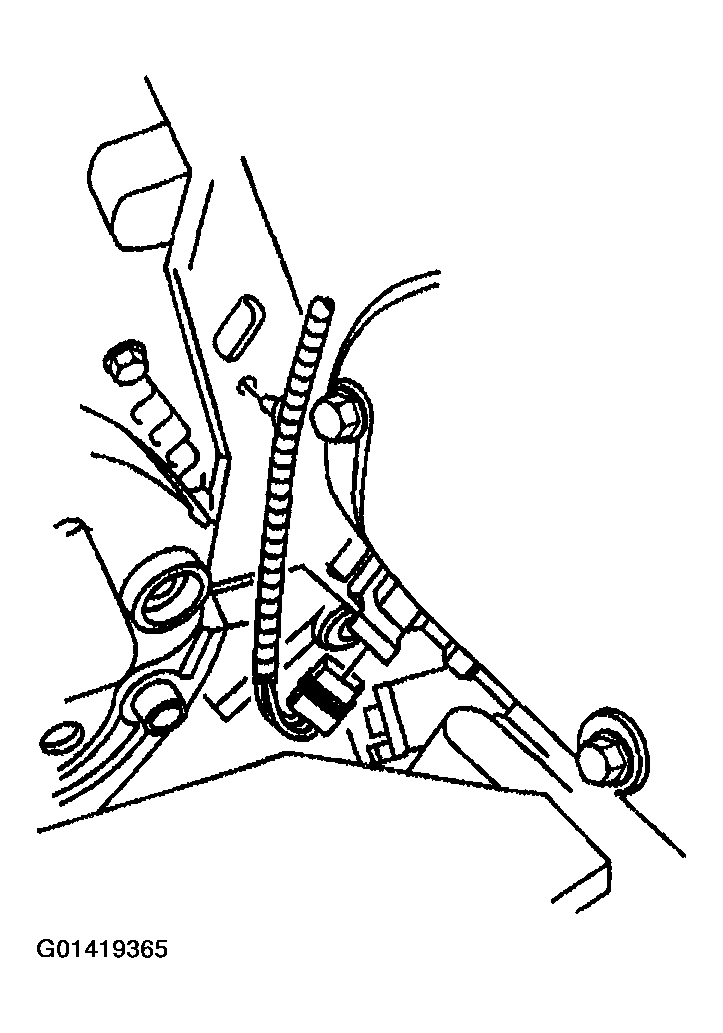

Fig 10: Installing Engine Coolant Temperature Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the front headlamp electrical connector.
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
Perform a vehicle front end alignment. Refer to MEASURING WHEEL ALIGNMENT in Wheel Alignment.
