Rear Camber Adjustment

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the lower control arm cam bolt nuts.

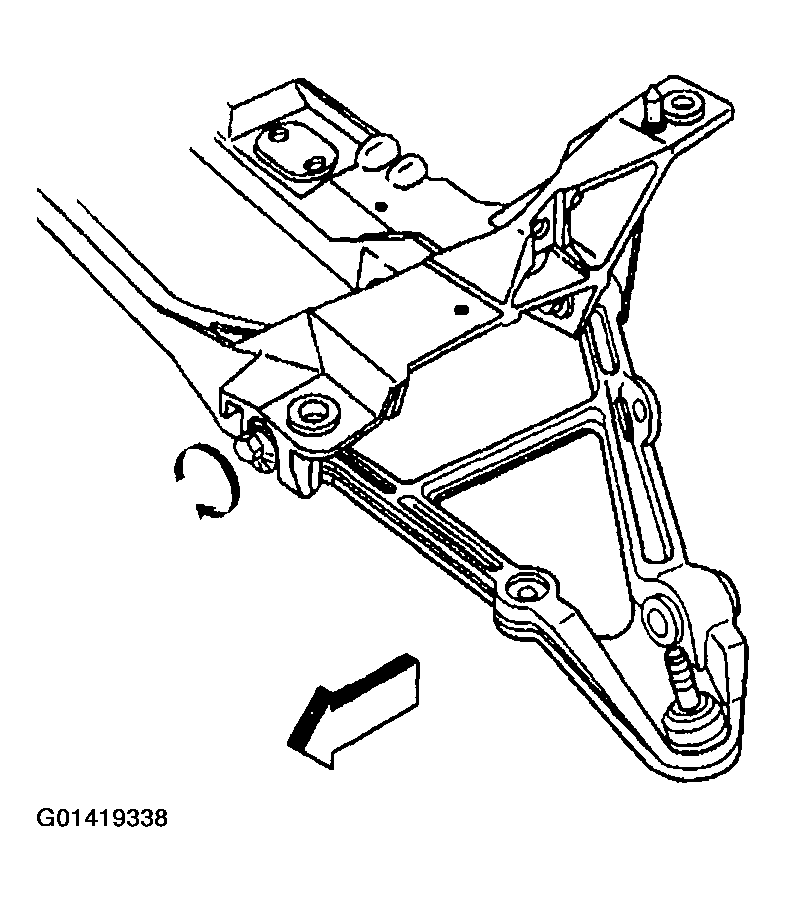

Fig 1: Adjusting Rear Camber
Courtesy of GENERAL MOTORS CORP.
Rotate the cam bolts to the required camber specification setting. Refer to WHEEL ALIGNMENT SPECIFICATIONS .
NOTE: Refer to FASTENER NOTICE .
Maintain the camber setting while tightening the cam bolt nuts.

Tighten

Tighten the rear lower control arm (front) bolt nut to 145 N.m (107 lb ft).
Tighten the rear lower control arm (rear) bolt nut to 95 N.m (70 1b ft).
IMPORTANT: Check the toe setting AFTER changing camber or caster.
Check the camber setting after tightening.
Adjust the camber setting if necessary.
