Front Caster and Camber Adjustment

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the lower control arm cam bolt nuts.
  2. Rotate the cam bolts to the required caster or camber specification setting. Refer to WHEEL ALIGNMENT SPECIFICATIONS  .

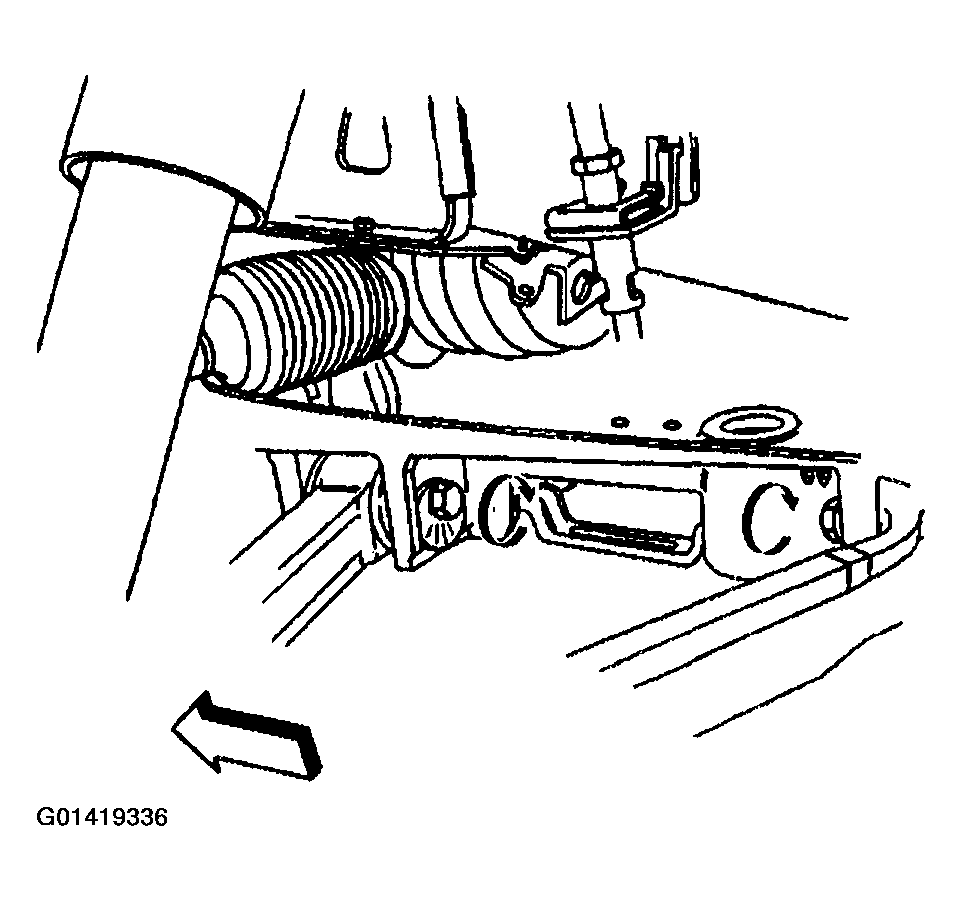

    Fig 1: Adjusting Front Caster And Camber
    G01419336Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Maintain the caster or camber setting while tightening the cam bolt nuts.

    Tighten

    Tighten the front lower control arm cam bolt nuts to 170 N.m (125 lb ft).

    IMPORTANT: Check the toe setting AFTER changing camber or caster.
  4. Check the caster and camber settings after tightening.
  5. Adjust the caster and camber setting if necessary.
