Removal & Installation (3.8L)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix, 2002 Chevrolet Monte Carlo, 2002 Chevrolet Impala, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot engine coolant may cause severe burns. Although the cooling system has been drained, coolant still remains in the engine water jacket. This coolant will drain with the removal of the knock sensor.

Turn OFF the ignition. Raise and support the vehicle. Drain the cooling system. Locate Knock Sensor (KS) to be removed. See Fig 1 or Fig 2 . Disconnect the KS electrical connector. Remove the KS.
To install, reverse removal procedure. Tighten the KS to specification. See TORQUE SPECIFICATIONS . Connect the KS electrical connector. Lower the vehicle. Fill the cooling system. See COOLING SYSTEM BLEEDING under COOLING SYSTEM.

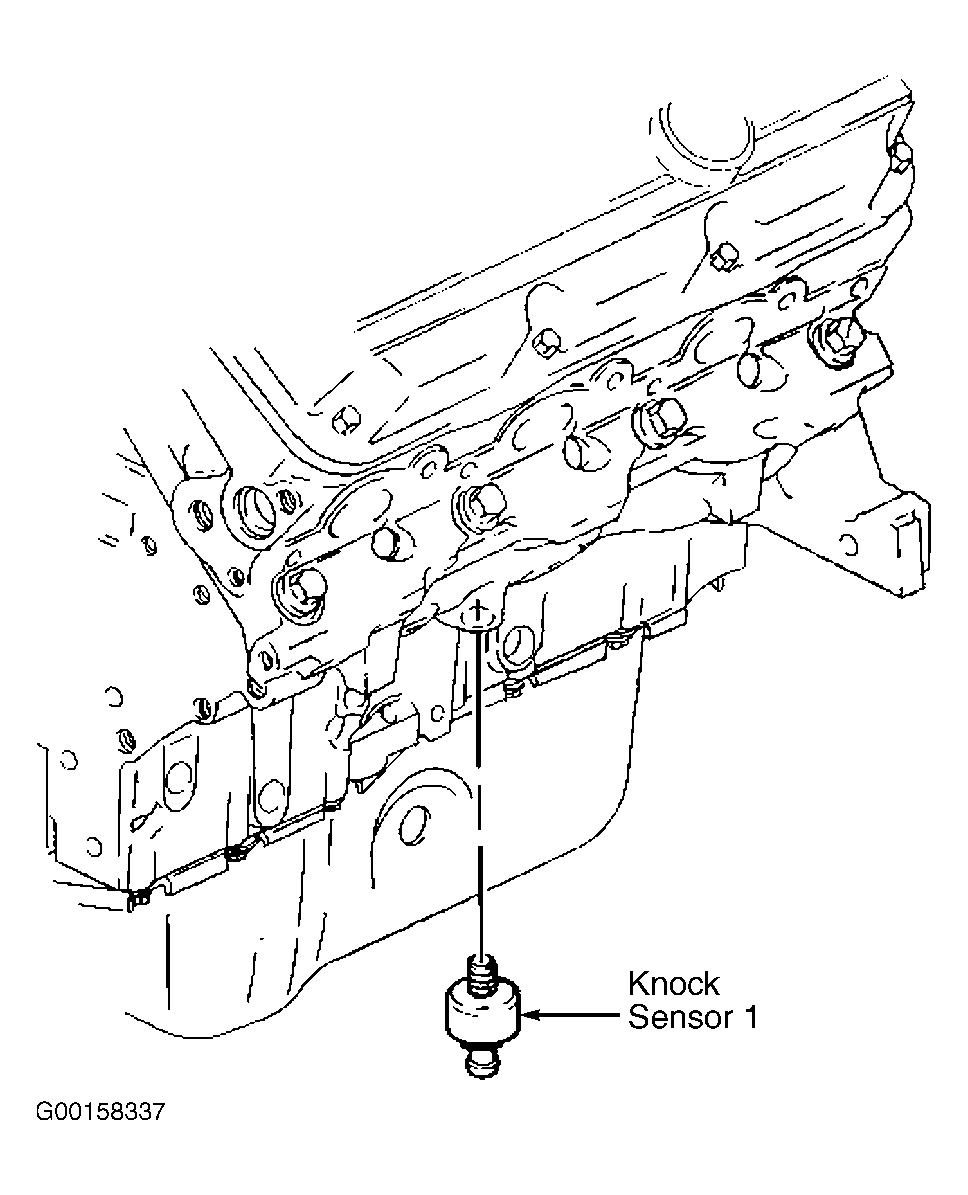

Fig 1: Removing/Installing Knock Sensor 1 (3.8L)

Courtesy of GENERAL MOTORS CORP.

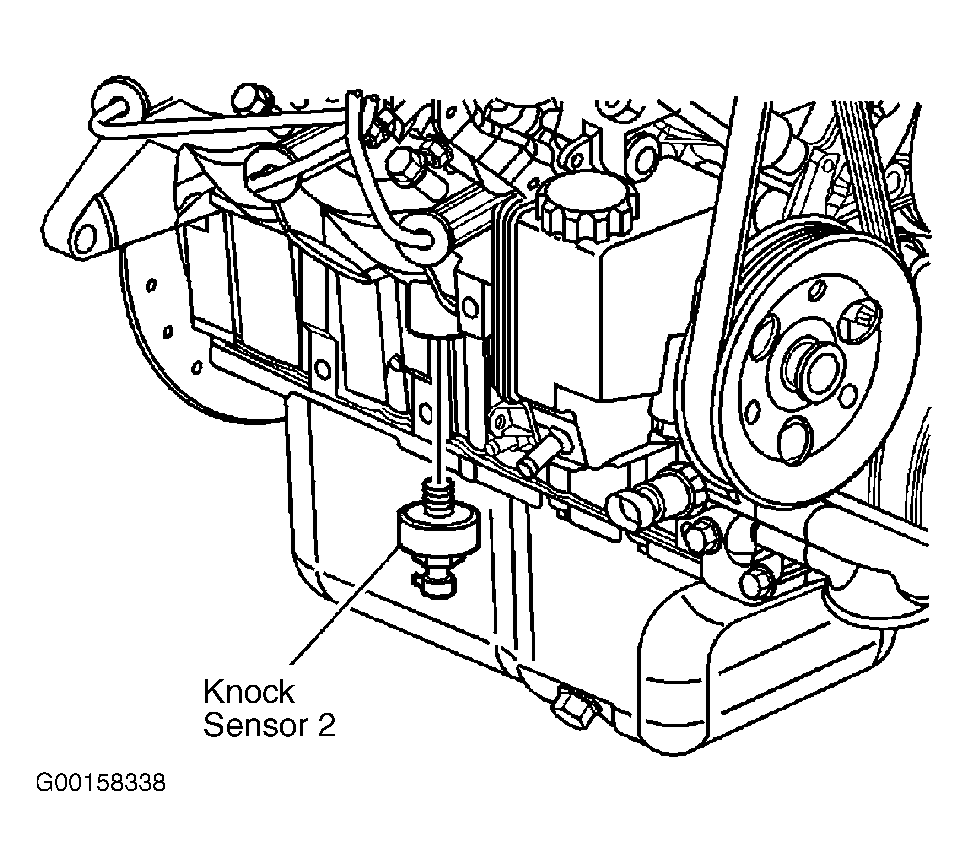

Fig 2: Removing/Installing Knock Sensor 2 (3.8L)

Courtesy of GENERAL MOTORS CORP.
