Camshaft Position Sensor: Installation
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix, 2002 Chevrolet Monte Carlo, 2002 Chevrolet Impala, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Inspect the CMP sensor "O" ring for wear or damage. If a problem is found, replace the "O"ring.
Lubricate the "O" ring with clean engine oil. Install the CMP sensor. Tighten the CMP sensor retaining bolt to specification. See TORQUE SPECIFICATIONS . Connect the CMP sensor electrical connector. Install the power steering pump to the vehicle.

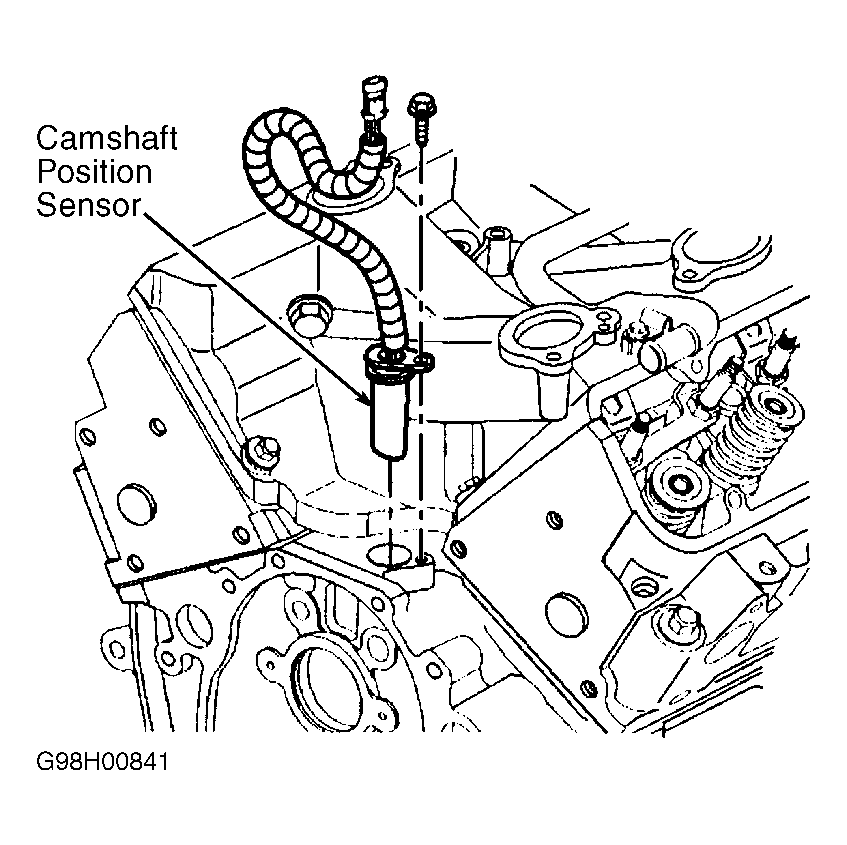

Install the CMP sensor to the engine front cover. Install the CMP sensor bolt. Tighten the bolt to specification. See TORQUE SPECIFICATIONS . Connect the electrical connector to the CMP sensor. Install the drive belt. Install the coolant recovery reservoir.
