EVAP Canister: Installation
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix, 2002 Chevrolet Monte Carlo, 2002 Chevrolet Impala, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Replace the retaining strap when replacing the EVAP canister.

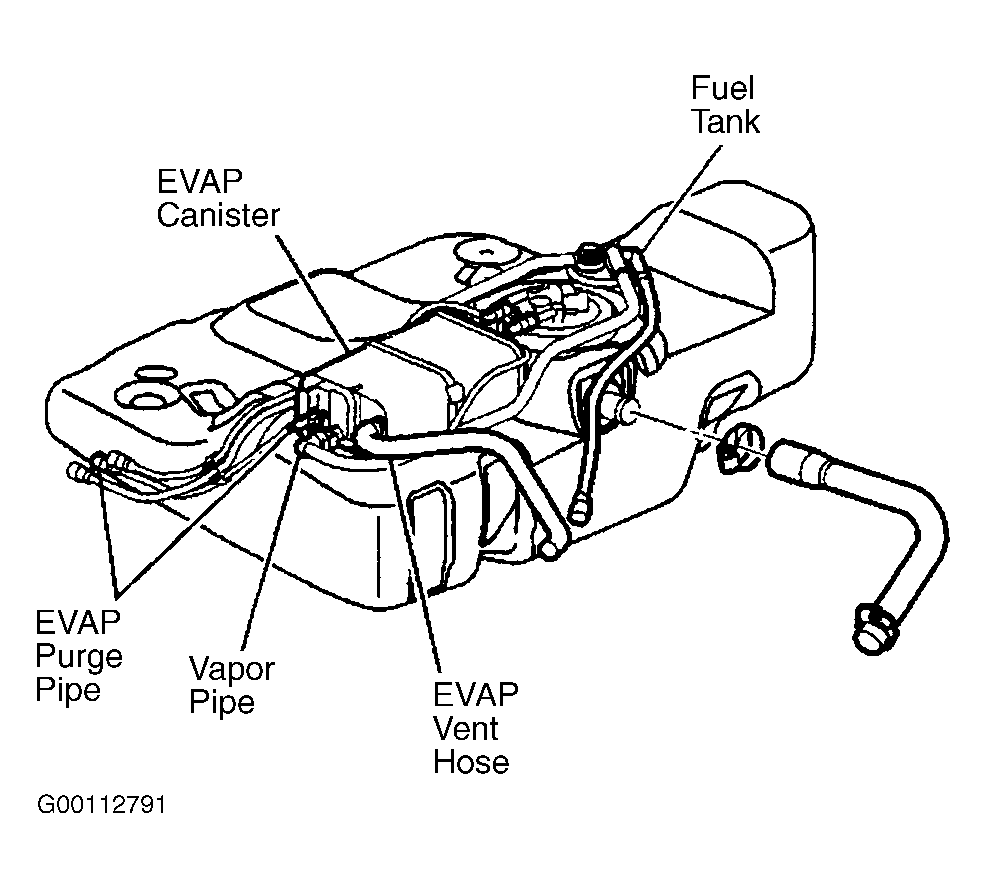

Position the EVAP canister on the fuel tank. Secure the EVAP canister to the fuel tank with a new retaining strap. Install the EVAP vent hose, the purge pipe, and the vapor pipe to the EVAP canister. Install the fuel tank. See FUEL TANK under FUEL SYSTEMS.
