EGR Valve: Installation
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix, 2002 Chevrolet Monte Carlo, 2002 Chevrolet Impala, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

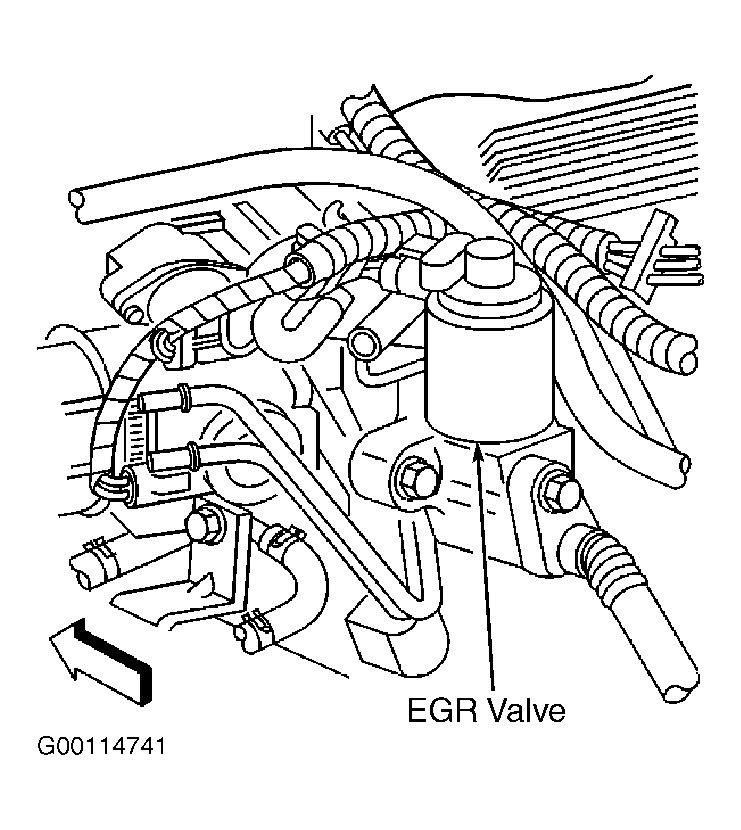

Install the EGR valve with a new gasket to the intake manifold. Install the bolts through the EGR valve. Tighten the bolts to specification. See TORQUE SPECIFICATIONS . Connect the pipe assembly to the EGR valve. Install the bolt. Tighten the bolt to specification. Install the EGR valve electrical connector.
Install a new gasket on the EGR adapter. Install the EGR valve and two nuts. Tighten the nuts to specification. See TORQUE SPECIFICATIONS . Connect the EGR valve electrical connector.
