Removal Procedure (3.8L)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix, 2002 Chevrolet Monte Carlo, 2002 Chevrolet Impala, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner intake duct. Refer to AIR CLEANER INTAKE DUCT .
Remove the left inner fender brace (5).
Remove the 2 screws (6) that are holding the air cleaner element housing to the powertrain control module (PCM) housing.

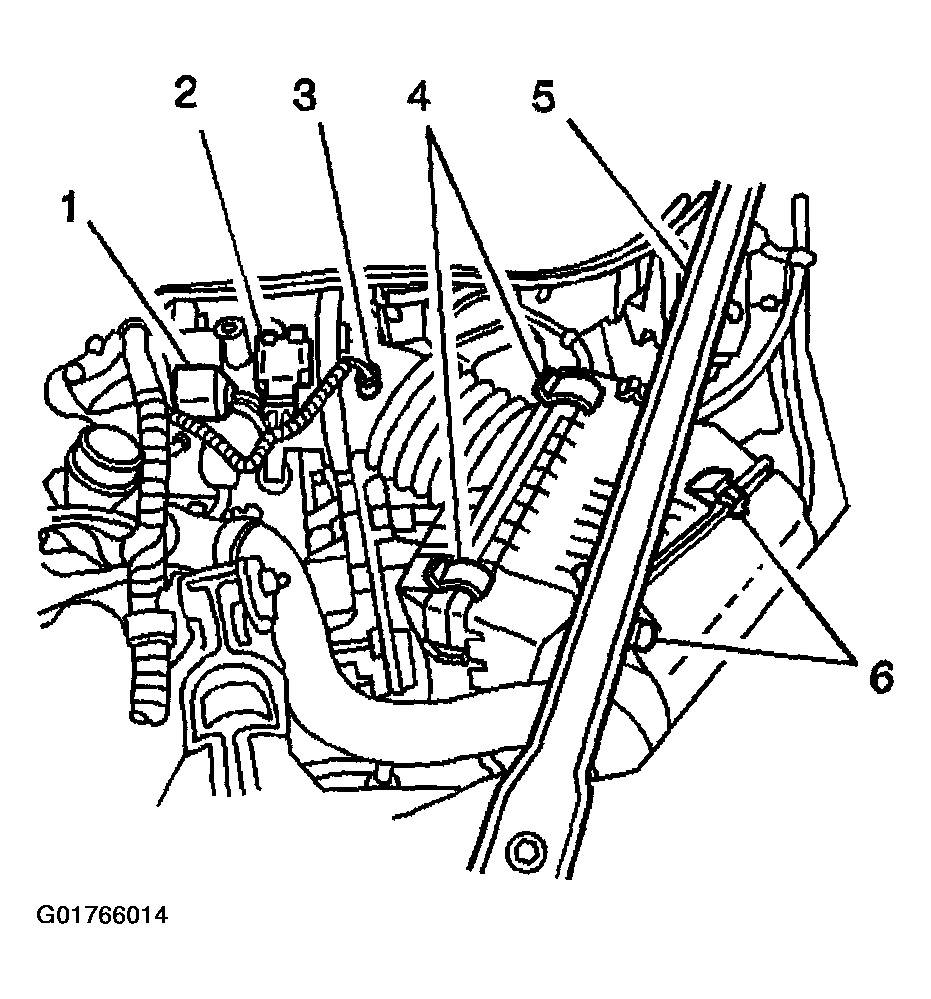

Fig 1: Air Cleaner Assembly Components
Courtesy of GENERAL MOTORS CORP.
Remove the air cleaner housing cover (1) from the air cleaner housing.

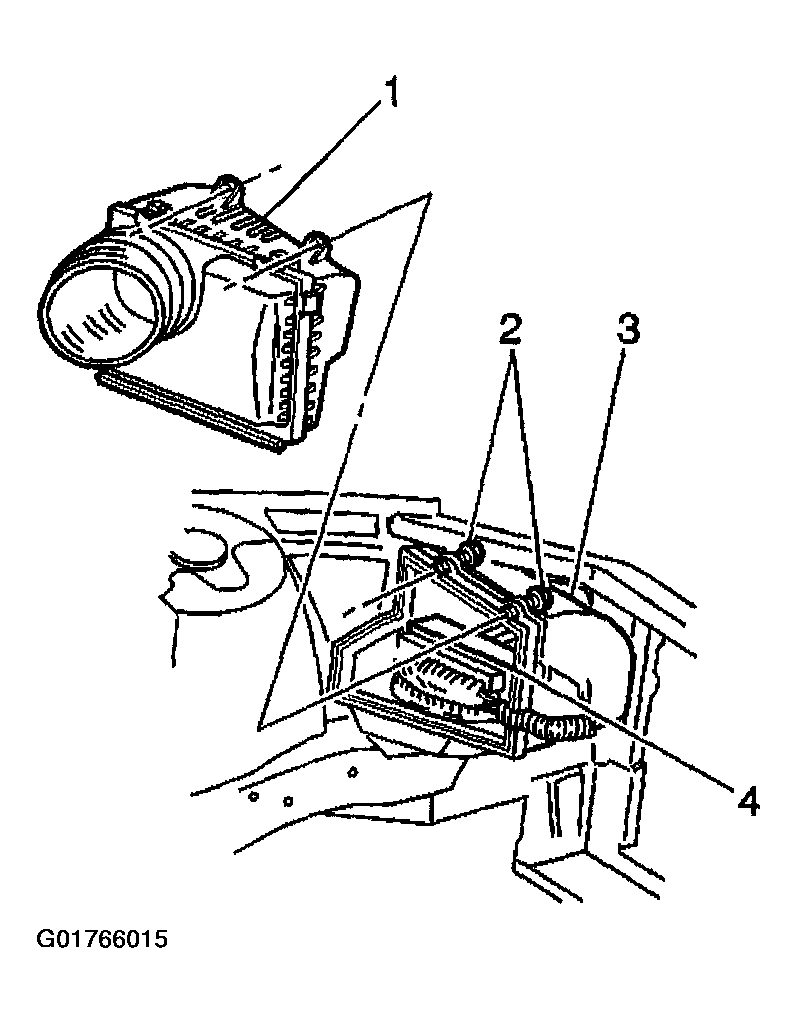

Fig 2: PCM, Air Cleaner Housing & Cover

Courtesy of GENERAL MOTORS CORP.

Without disconnecting the PCM connectors, remove the PCM (4) from the air cleaner housing (3).
Remove the air cleaner assembly by pulling the housing away from the rubber grommets in the engine compartment.
