Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SIR CAUTION .

Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT (TELESCOPING) or STEERING COLUMN TRIM COVERS REPLACEMENT (MANUAL) .
Tilt the column in the UP position.

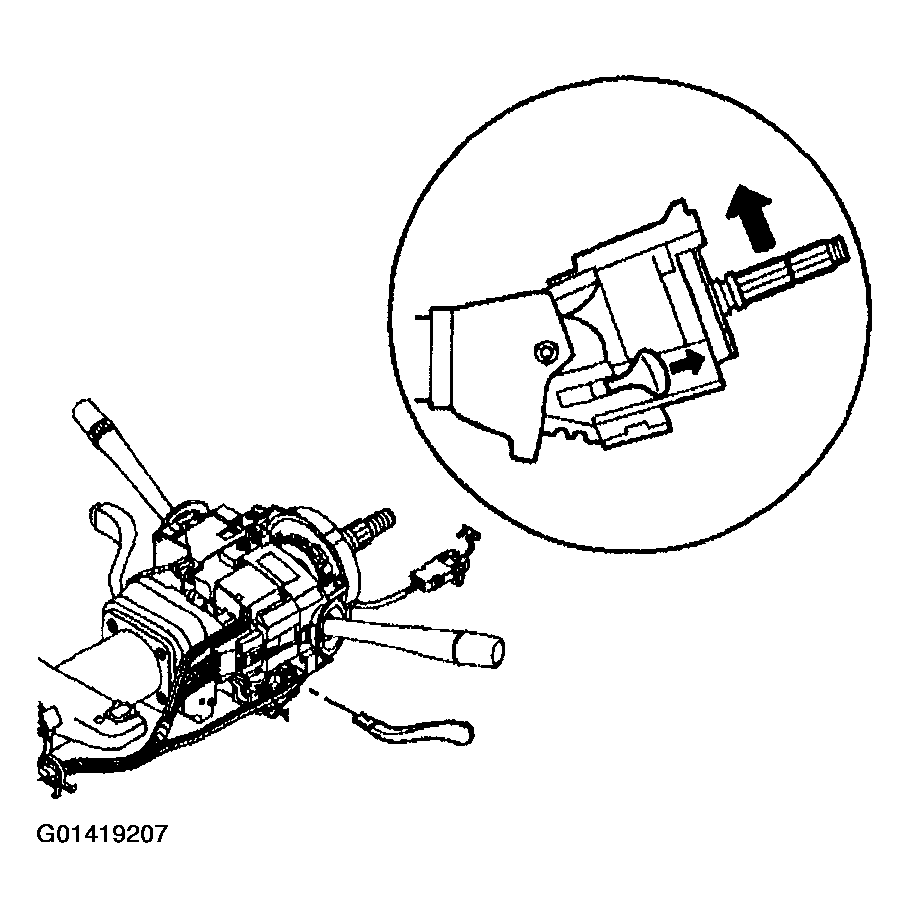

Fig 1: Tilting Column Up
Courtesy of GENERAL MOTORS CORP.

CAUTION: The tilt spring and the spring guide are under pressure. The tilt spring and the spring guide may become a projectile. Secure the spring with locking pliers during removal. Secure the spring with locking pliers during Installation. Bodily Injury may result during removal and Installation of the tilt spring and the spring guide. Always use caution during removal and Installation of the tilt spring and the spring guide.
Perform the following steps to remove the tilt spring (1):
1. 4.1. Pry the tilt spring (1) up with a screwdriver until a bulge occurs. The spring tension is mostly removed.
2. 4.2. Secure the tilt spring (1) with locking pliers.
3. 4.3. Continue to pry until the tilt spring (1) disengages from the post on the steering column support (2) and the steering column tilt head assembly (3).

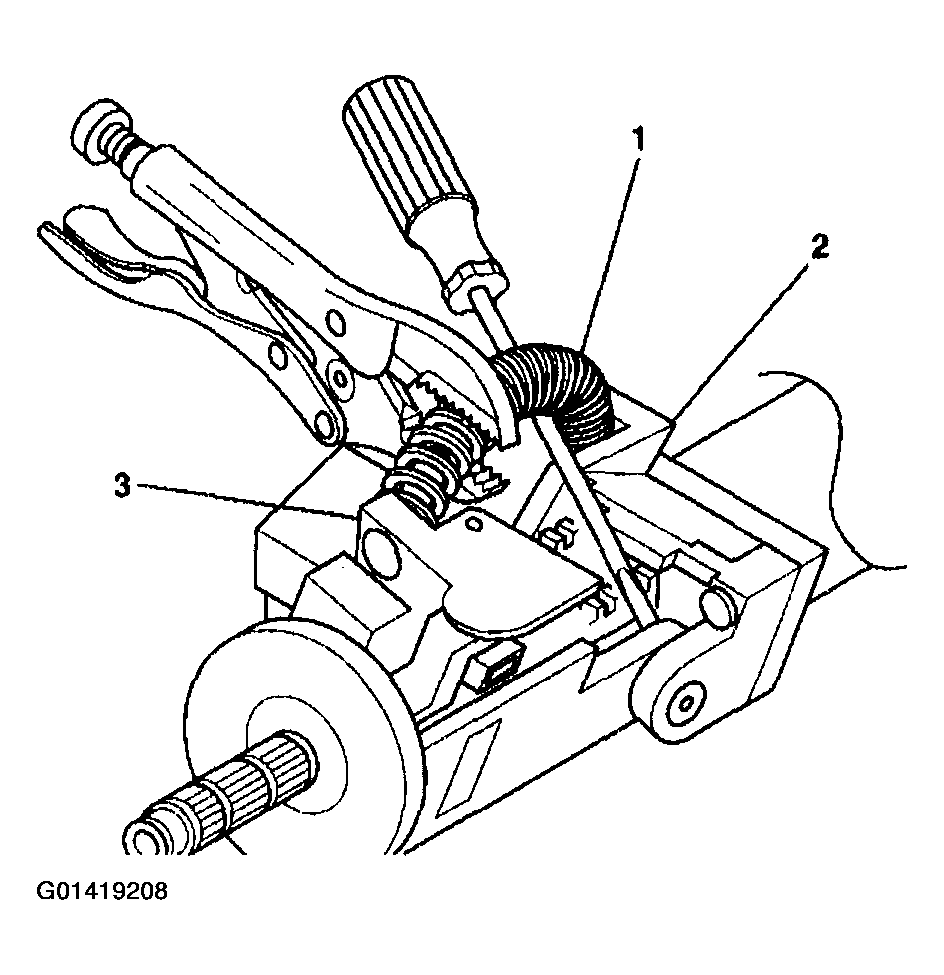

  Fig 2: Removing Tilt Spring
  Courtesy of GENERAL MOTORS CORP.
Remove the spring guide from the tilt spring.

Fig 3: Removing Spring Guide
Courtesy of GENERAL MOTORS CORP.
