Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the telescope drive bracket (5) to the jacket assembly.

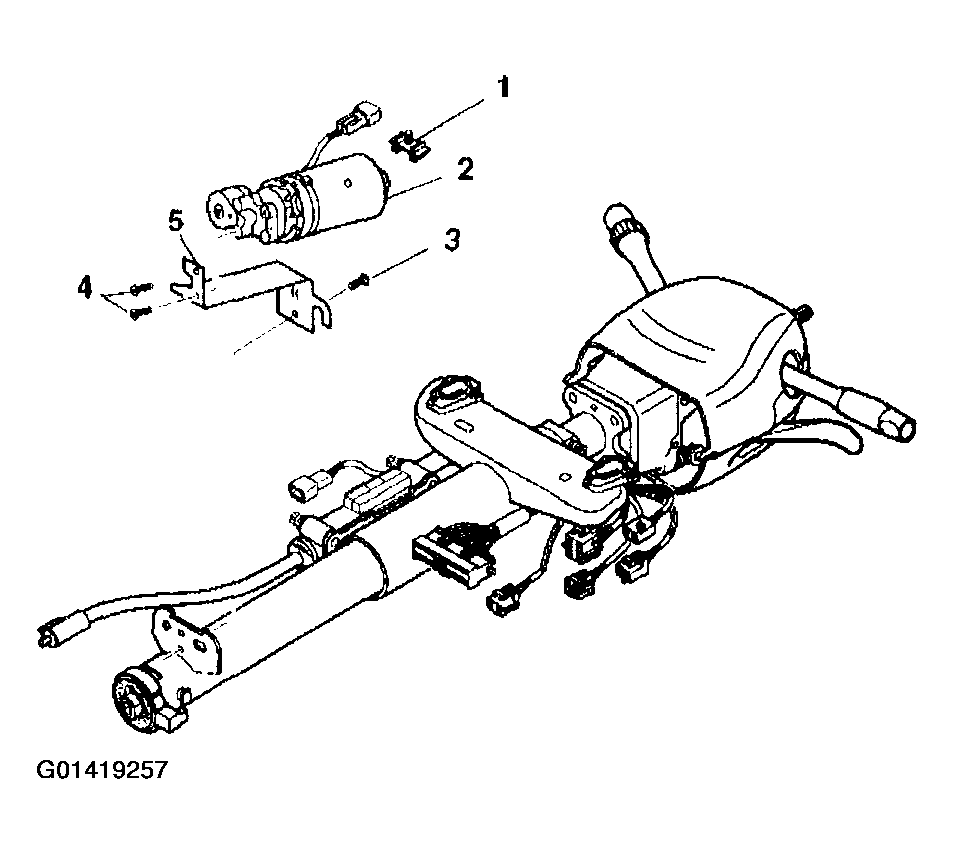

    Fig 1: Locating Telescope Drive Bracket Components
    G01419257Courtesy of GENERAL MOTORS CORP.
  2. Install the pan head tapping screw (3) to the telescope drive bracket (5).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the guide retainer bolts.

    Tighten

    Tighten the screw to 7 N.m (62 lb in).

  4. Install the telescope drive motor assembly (2) to the telescope drive bracket (5).
  5. Install the 2 pan head tapping screws (4) to the telescope drive bracket (5).

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

  6. Install the connector clip (1) to the telescope drive motor assembly connector (2).
    CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION .
  7. Connect the cable assembly (2) to the telescope drive motor assembly connector (1).

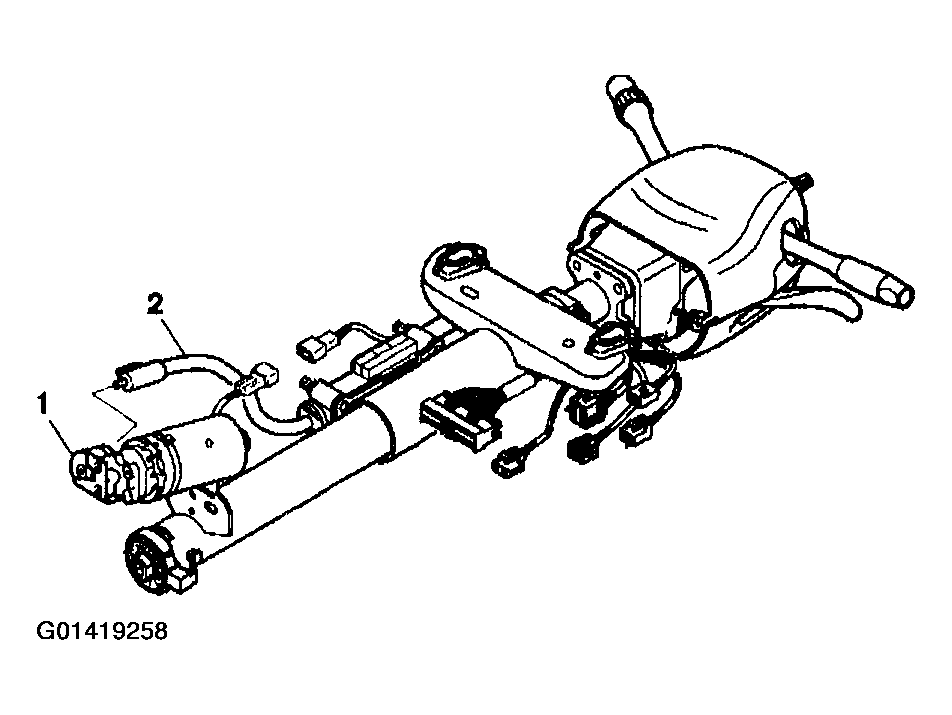

    Fig 2: Connecting Cable Assembly To Telescope Drive Motor Assembly Connector
    G01419258Courtesy of GENERAL MOTORS CORP.
  8. Remove the steering column from J 41352.
  9. Install the steering column. Refer to STEERING COLUMN REPLACEMENT  .
  10. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
