Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the telescope motor assembly switch and wires through the opening in the lower trim cover.
  2. Snap the wiring to the retaining clips in the lower trim cover.
  3. Route the switch wires to the telescope motor assembly along the column. Strap the wires in place.
  4. Connect the telescope motor assembly switch connector to the instrument panel wiring harness.
  5. Install the lower trim cover tabs into the steering column close out trim cover.
  6. Verify that the tabs on the lower trim cover are fully engaged with the slots in the steering column close out trim cover.

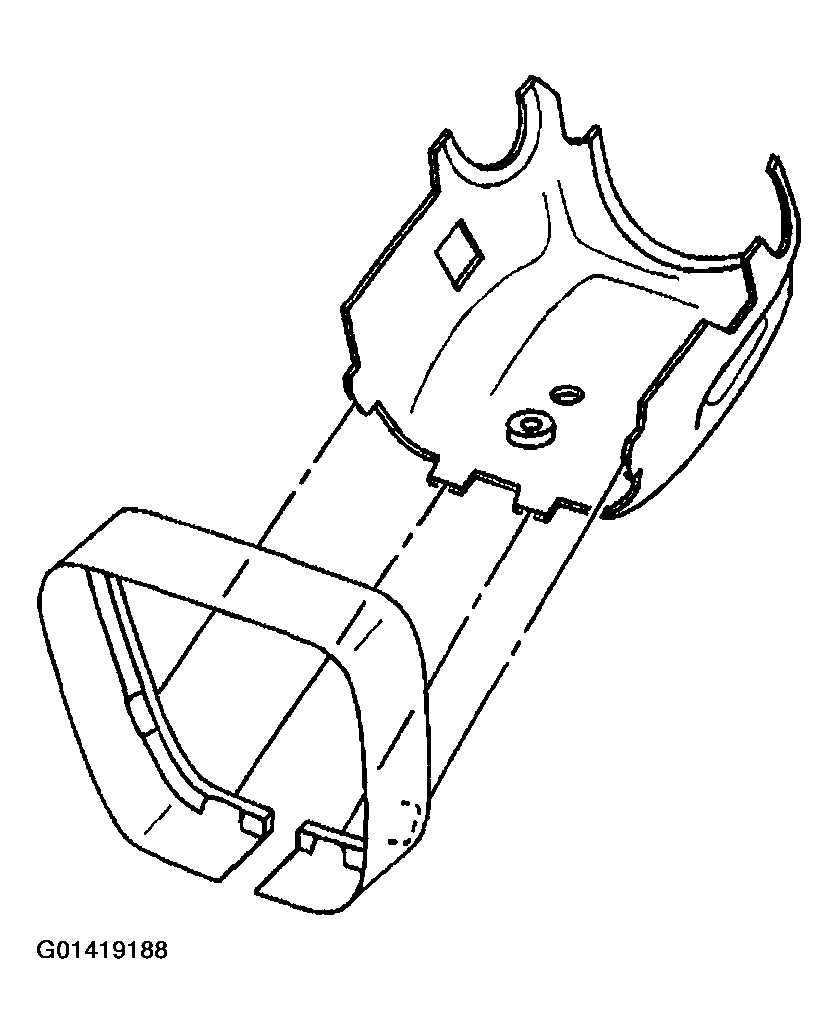

    Fig 1: Installing Lower Trim Cover Tabs Into Steering Column Close Out Trim Cover
    G01419188Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  7. Install the 2 TORX® head screws (1) to the lower trim cover.

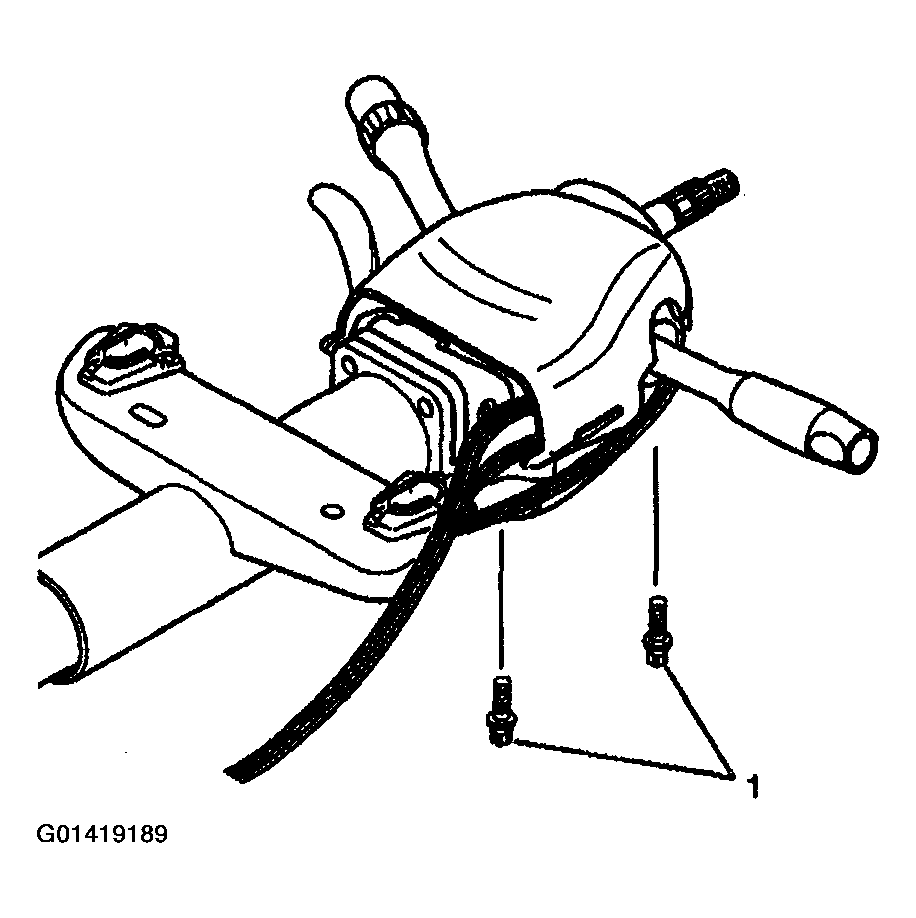

    Fig 2: Installing TORX® Head Screws To Lower Trim Cover
    G01419189Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the screws to 4 N.m (35 lb in).

  8. Install the driver knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER in Instrument Panel, Gages and Console.

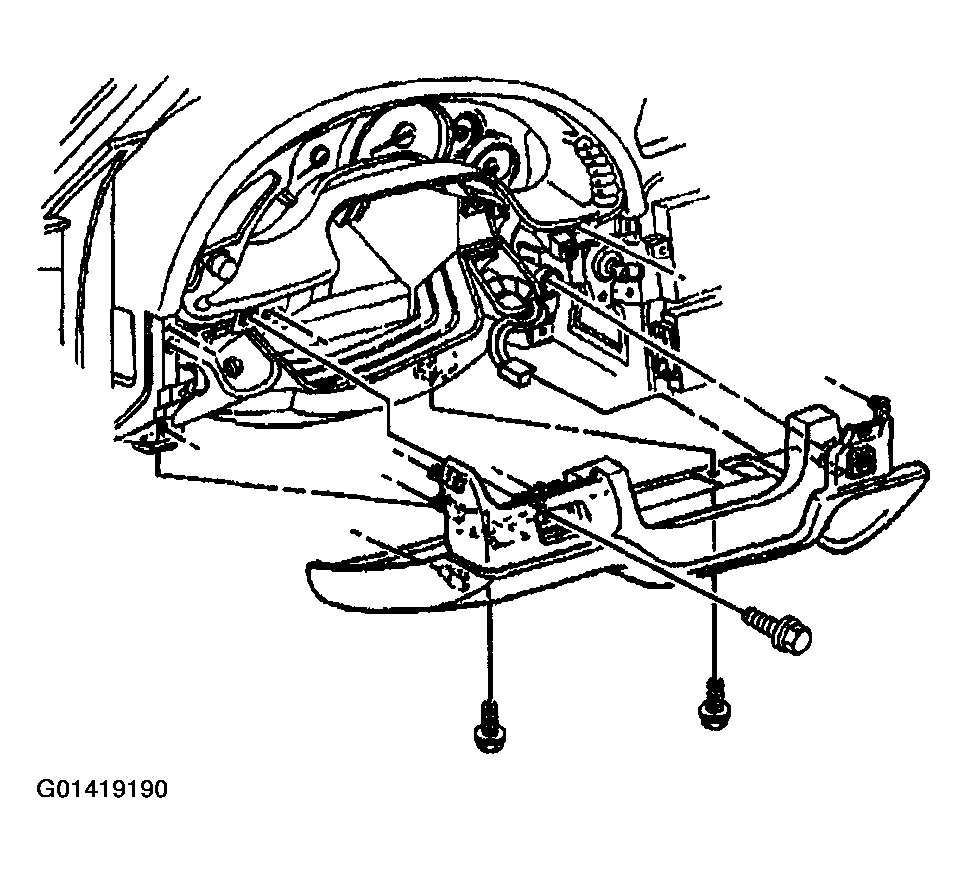

    Fig 3: Installing Driver Knee Bolster Trim Panel
    G01419190Courtesy of GENERAL MOTORS CORP.
  9. Install the tilt lever. Refer to TILT LEVER REPLACEMENT  .
  10. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
