Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the telescope adapter assembly (2) to the jacket assembly.

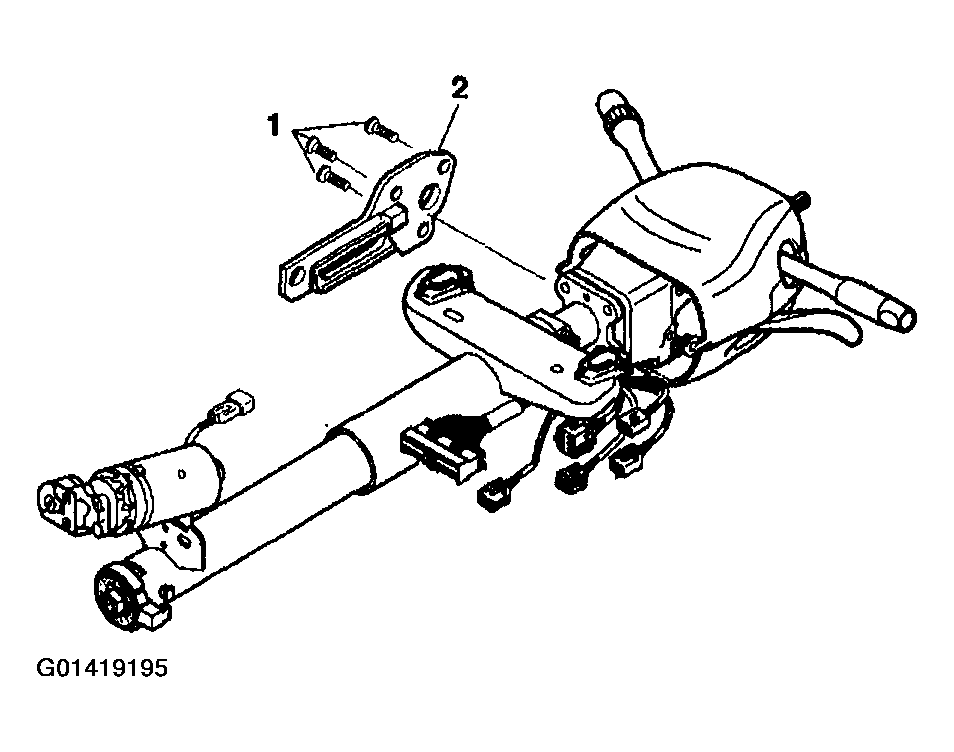

Fig 1: Locating Telescope Adapter Assembly Components
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the actuator retaining screws (1).
Tighten

Tighten the retaining screws to 9 N.m (80 lb in).
Install the telescope actuator assembly (3) to the jacket assembly.

Fig 2: Locating Jacket Assembly Components
Courtesy of GENERAL MOTORS CORP.
Install the actuator retaining screws (4).
Tighten

Tighten the retaining screws to 9 N.m (80 lb in).
1. 4.1. Install the telescope drive ball (2).
2. 4.2. Install the telescope drive bolt (1).
Tighten

Tighten the bolt to 7 N.m (62 lb in).
Connect the cable assembly (2) to the telescope drive motor assembly (1).

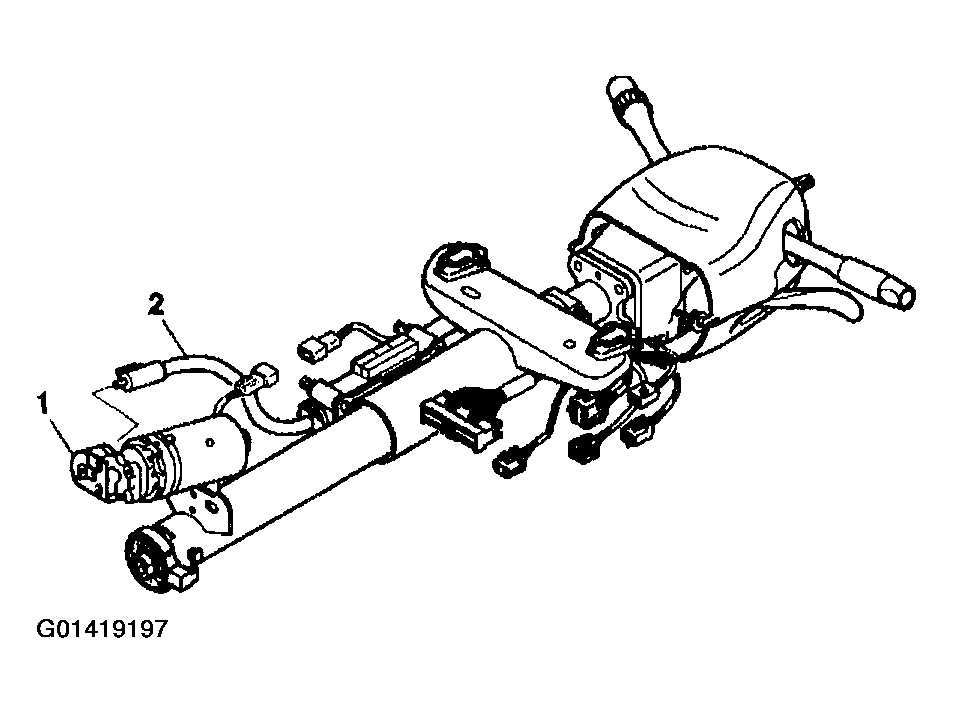

Fig 3: Connecting Cable Assembly To Telescope Drive Motor Assembly
Courtesy of GENERAL MOTORS CORP.
Install the following items onto the jacket assembly:
1. 6.1. housing support guide (4)
2. 6.2. shoulder bolt (3)
3. 6.3. compression spring (2)
4. 6.4. retaining ring (1)

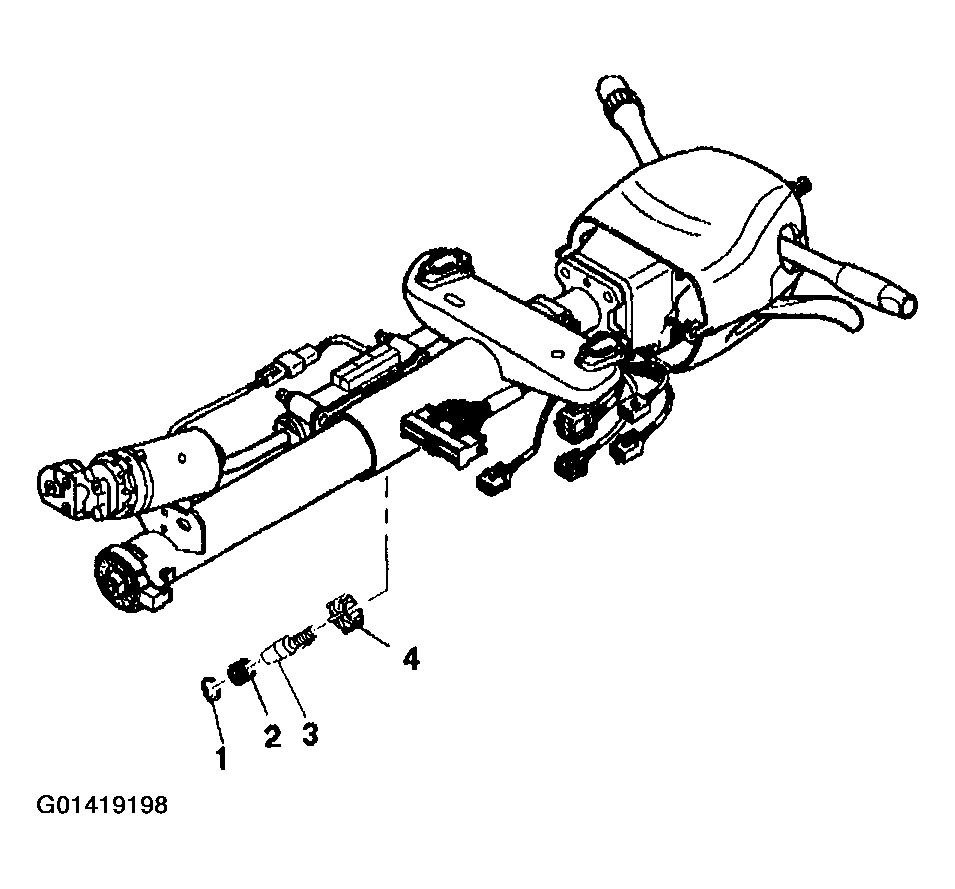

  Fig 4: Installing Ring, Spring, Bolt & Housing Support Into Jacket Assembly
  Courtesy of GENERAL MOTORS CORP.
Install the driver side knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER in Instrument Panel, Gages and Console.
Remove J 42640 from the lower steering column trim cover.
Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
