Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering wheel inflator module. Refer to AIR BAG MODULES .
  2. Remove the horn electrical connector.
  3. Install J 42640  to the steering column.

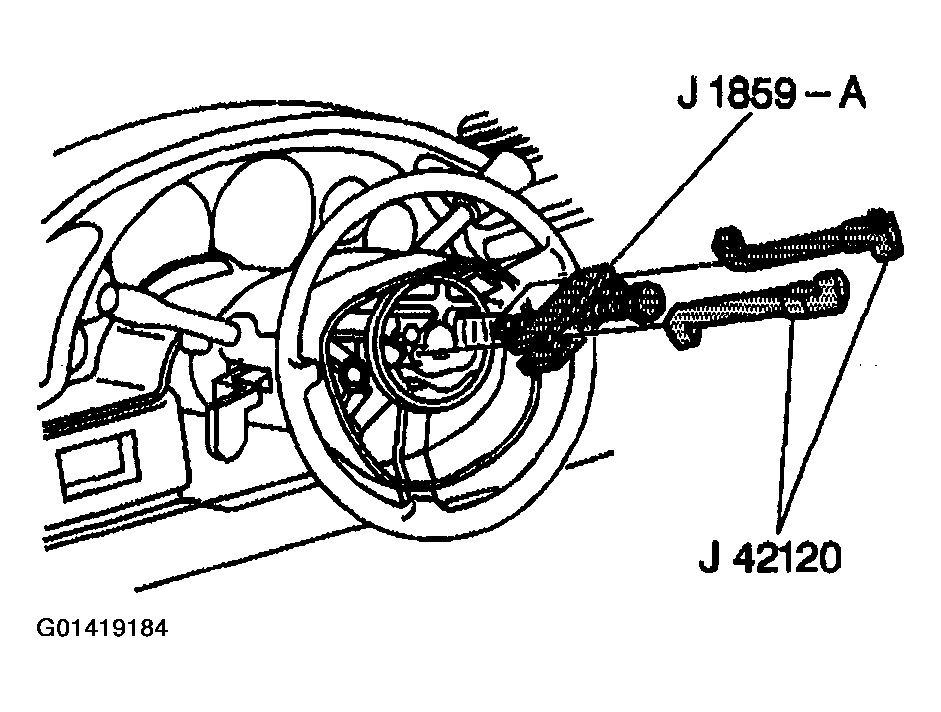

    Fig 1: Removing Steering Wheel
    G01419184Courtesy of GENERAL MOTORS CORP.
  4. Remove the steering wheel set nut.
  5. Discard the steering wheel set nut.
  6. Install J 42120  and J 1859-A  to the steering wheel.
  7. Tighten the puller center screw against steering column shaft until the steering wheel slides off the steering column shaft.
  8. Remove J 42120  and J 1859-A  from the steering wheel.
