Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering wheel to the steering column, observing the alignment marks.

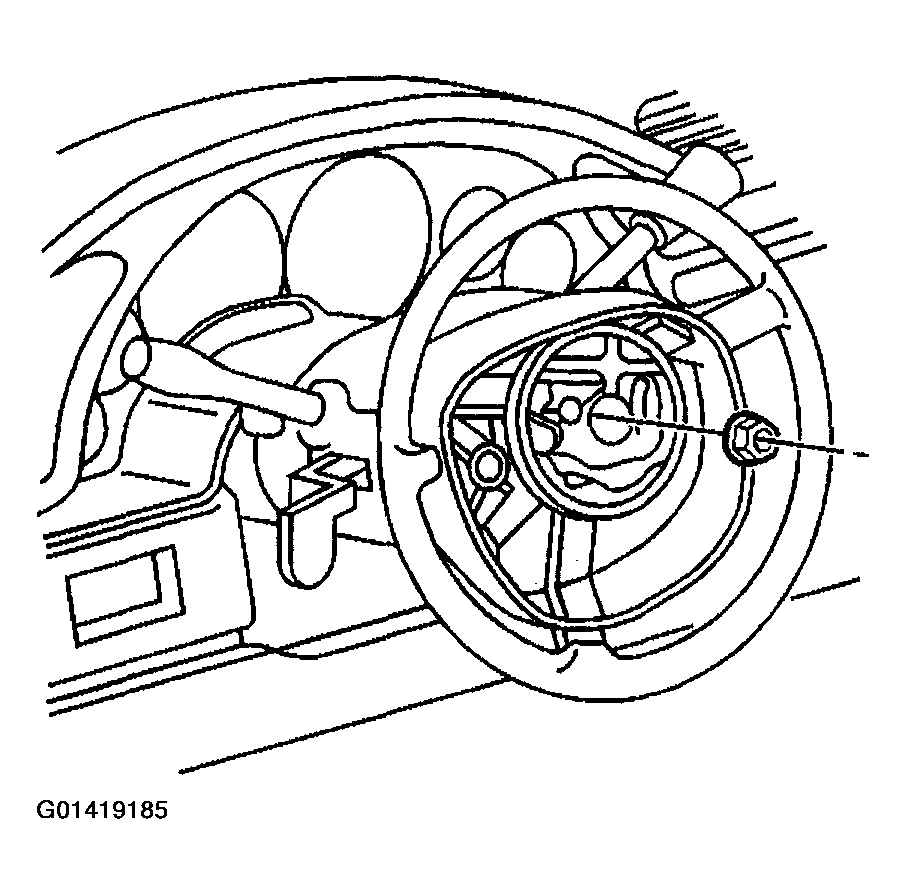

    Fig 1: Installing Steering Wheel
    G01419185Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install a new steering wheel set nut.

    Tighten

    Tighten the nut to 41 N.m (30 lb ft).

  3. Remove J 42640  from the steering column.
  4. Connect the horn electrical connector.
  5. Install the steering wheel inflator module. Refer to AIR BAG MODULES .
