Removal Procedure

Important:  Identify the type of steering wheel position sensor from the illustrations below BEFORE removing the sensor from the steering column. Once you have identified the steering wheel position sensor, follow the instructions listed in the removal procedure.

1. Verify the type of steering wheel position sensor.

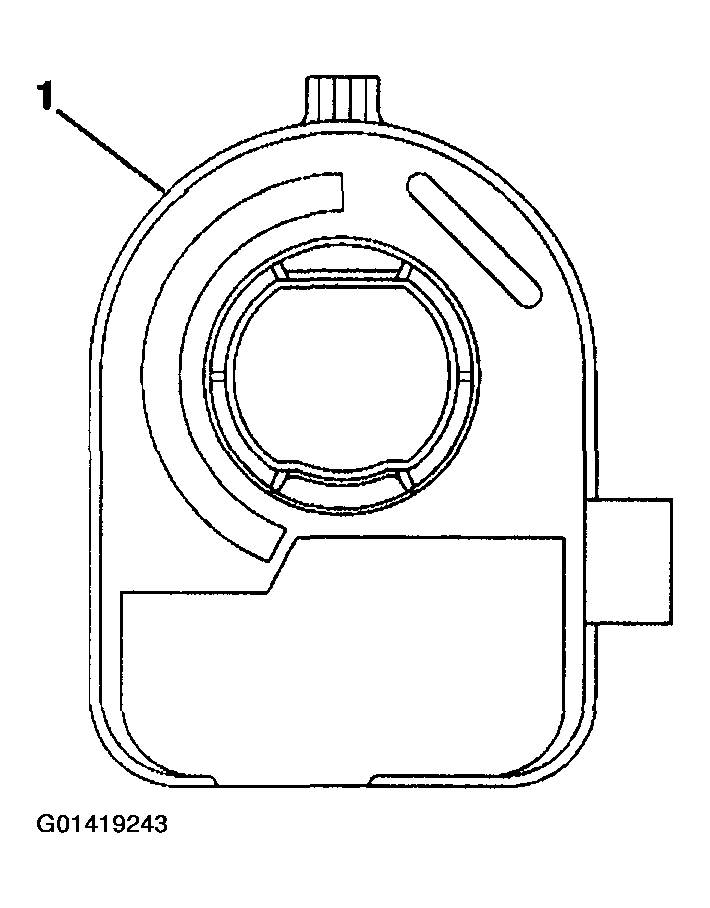

Fig 1: Identifying Sensor Type A
Courtesy of GENERAL MOTORS CORP.
2. From the technicians point of view, the FRONT of the sensor (1) connector will be on the right.

   Important:  If reusing the existing sensor, you do not have to align the sensor before removal. Centering is not required when it is time to reinstall.

3. Remove the connector from the sensor.
4. Remove the sensor (1) from the adapter and bearing assembly.
5. To install the sensor, proceed to step 1 in the installation section.
Fig 2: Identifying Sensor Type B
Courtesy of GENERAL MOTORS CORP.
6. From the technicians point of view, the FRONT of the sensor will have:
   • foam ring (2)
   • pin hole (1) for centering pin (note location of pin hole)
   • flush rotor flange cuff (4)

   Important:  If reusing the existing sensor, you must make an alignment mark on the rotor flange cuff (3) before removing the sensor. Failure to do so will cause misalignment when installing the sensor. A new sensor will be required if misaligned.

7. Make an alignment mark on the flush rotor flange cuff (3).
8. Remove the connector from the sensor.
9. Remove the sensor from the adapter and bearing assembly.
10. To install the sensor, proceed to step 5 in the installation section.
Fig 3: Identifying Sensor Type C
Courtesy of GENERAL MOTORS CORP.
11. From the technicians point of view, the FRONT of the sensor will have:
    • raised rotor flange cuff (3)
    • alignment mark (2) on rotor flange cuff (3) for installation
    • pin hole (1) for centering pin (note location of pin hole)
12. Remove the connector from the sensor.
13. Remove the sensor from the adapter and bearing assembly.
14. To install the sensor, proceed to step 9 in the installation section.
Fig 4: Identifying Sensor Type D
Courtesy of GENERAL MOTORS CORP.
15. From the technicians point of view, the FRONT of the sensor will have:
    • raised rotor flange cuff (3)
    • alignment mark (2) on rotor flange cuff (3) for installation
    • pin hole (1) for centering pin (note location of pin hole)
    • sensor clip in FRONT of the sensor
16. Remove the connector from the sensor.
17. Remove the sensor clip from the sensor.
18. Remove the sensor from the adapter and bearing assembly.
19. To install the sensor, proceed to step 13 in the installation section.
Fig 5: Identifying Sensor Type E
Courtesy of GENERAL MOTORS CORP.
20. From the technicians point of view, the FRONT of the sensor will have:
    • flush rotor flange cuff (3)
    • pin hole (1) for centering pin (note location of pin hole)
    • alignment mark (2) on flush rotor flange cuff (3) for installation
21. Remove the connector from the sensor.
22. Remove the sensor from the adapter and bearing assembly.
23. To install the sensor, proceed to step 17 in the installation section.
Fig 6: Identifying Sensor Type F
Courtesy of GENERAL MOTORS CORP.
24. From the technicians point of view, the FRONT of the sensor will have:
    • flush rotor flange cuff (4)
    • pin hole (2) for centering pin (note location of pin hole)
    • alignment mark (3) on flush rotor flange cuff (4) for installation
    • foam ring (1)
25. Remove the connector from the sensor.
26. Remove the sensor from the adapter and bearing assembly.
27. To install the sensor, proceed to step 21 in the installation section.
