Service Column Lock Indicator Inoperative

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

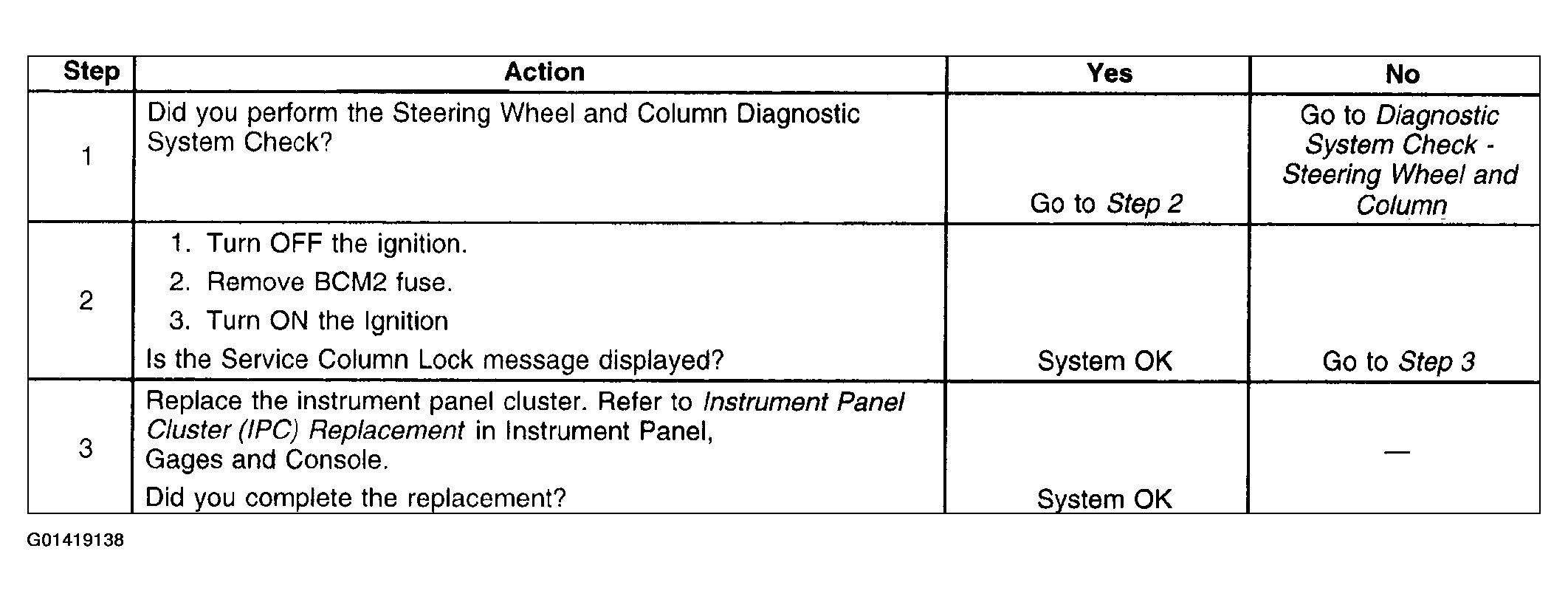

Fig 1: Diagnostic System Check - Service Column Lock Indicator Inoperative
G01419138Courtesy of GENERAL MOTORS CORP.
