Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Loosen, do not remove, the outer tie rod end stud nut (2) from the outer tie rod end ball stud.
  4. Install J 42188  between the steering knuckle and the outer tie rod end stud.

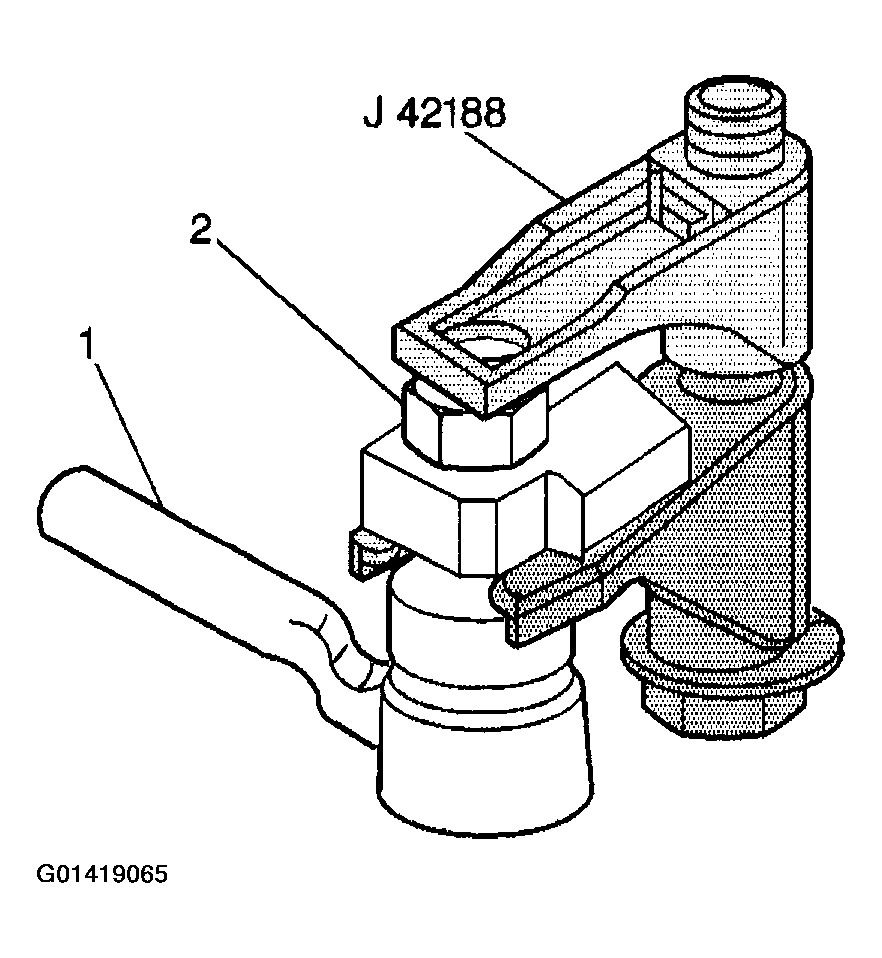

    Fig 1: Installing J 42188 Between Steering Knuckle & Outer Tie Rod End Stud
    G01419065Courtesy of GENERAL MOTORS CORP.
  5. Tighten the nut on J 42188  until the steering knuckle and the outer tie rod end stud separate.
  6. Remove J 42188  and the outer tie rod end stud nut.
  7. Remove the outer tie rod end stud (5) from the steering knuckle (4).
  8. Loosen the jam nut (2) on the inner tie rod assembly.
  9. Remove the outer tie rod end (5) from the inner tie rod assembly (1).
    Fig 2: Removing Outer Tie Rod End From Inner Tie Rod Assembly
    G01419066Courtesy of GENERAL MOTORS CORP.
