Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Place a drain pan under the vehicle.
Remove the capstick (1) from the power steering fluid reservoir (2).

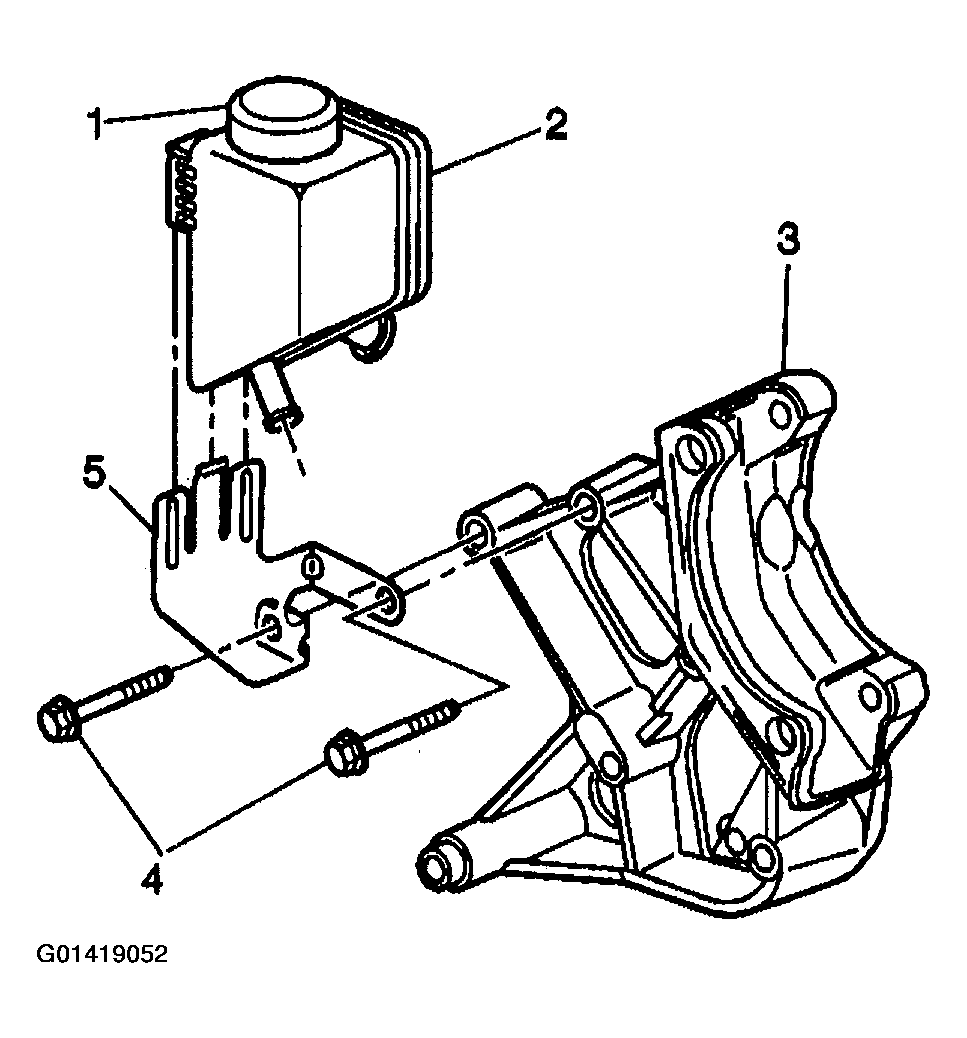

Fig 1: Removing Power Steering Fluid Reservoir

Courtesy of GENERAL MOTORS CORP.

Remove the power steering fluid reservoir (2) from the power steering fluid reservoir bracket (5).
Remove the following components from the power steering fluid reservoir (2):
- The power steering reservoir outlet pipe/hose. Refer to POWER STEERING RESERVOIR OUTLET PIPE/HOSE REPLACEMENT .
- The power steering return hose. Refer to POWER STEERING RETURN HOSE REPLACEMENT .
Remove the power steering fluid reservoir (2) from the vehicle.
