Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering fluid reservoir. Refer to REMOTE POWER STEERING FLUID RESERVOIR REPLACEMENT  .
  2. Remove the bolts (4) from the power steering fluid reservoir bracket (5).

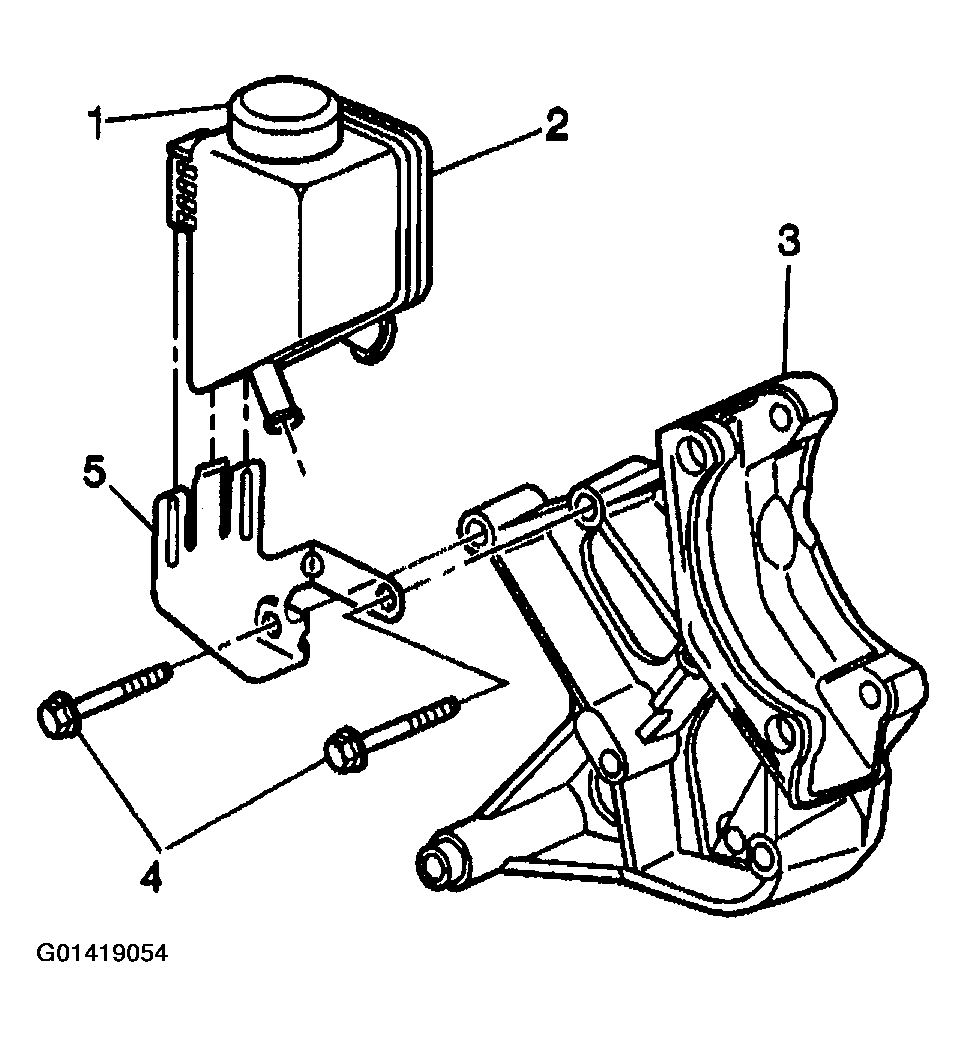

    Fig 1: Removing Power Steering Fluid Reservoir Bracket
    G01419054Courtesy of GENERAL MOTORS CORP.
  3. Remove the power steering fluid reservoir bracket (5) from the vehicle.
