Disassembly Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

To remove the outer tie rod; refer to TIE ROD END REPLACEMENT - OUTER .
Remove the hex jam nut (2) from the inner tie rod assembly (1).

Fig 1: Removing Hex Jam Nut From Inner Tie Rod Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the tie rod end clamp (2) from the rack and pinion boot (1).

Fig 2: Removing Tie Rod End Clamp From Rack And Pinion Boot
Courtesy of GENERAL MOTORS CORP.
Remove the boot clamp (1) from the rack and pinion boot with side cutters.

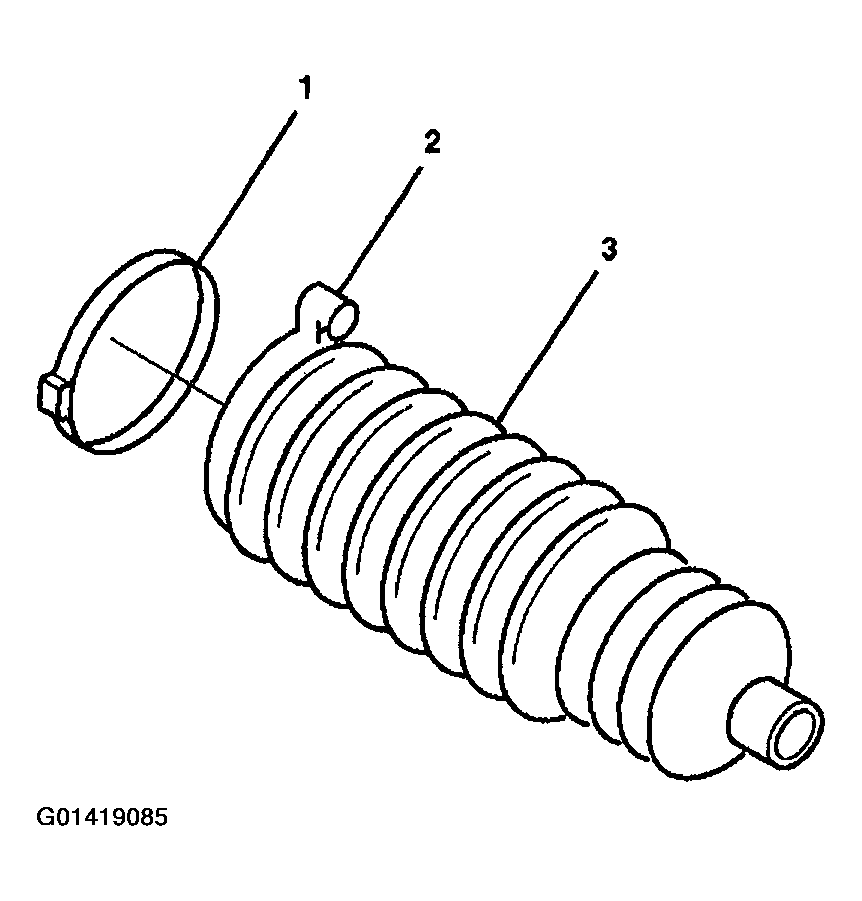

Fig 3: Locating Boot Clamp
Courtesy of GENERAL MOTORS CORP.
Discard the boot clamp (1).
Remove the rack and pinion boot (1) from the rack and pinion gear assembly.

Fig 4: Removing Rack And Pinion Boot
Courtesy of GENERAL MOTORS CORP.
