Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the vehicle.
  2. Remove the clamp retaining the outlet hose (2) to the power steering pump (3).
  3. Remove the clamp retaining the outlet hose to the power steering reservoir (1).
  4. Remove the outlet hose from the vehicle.

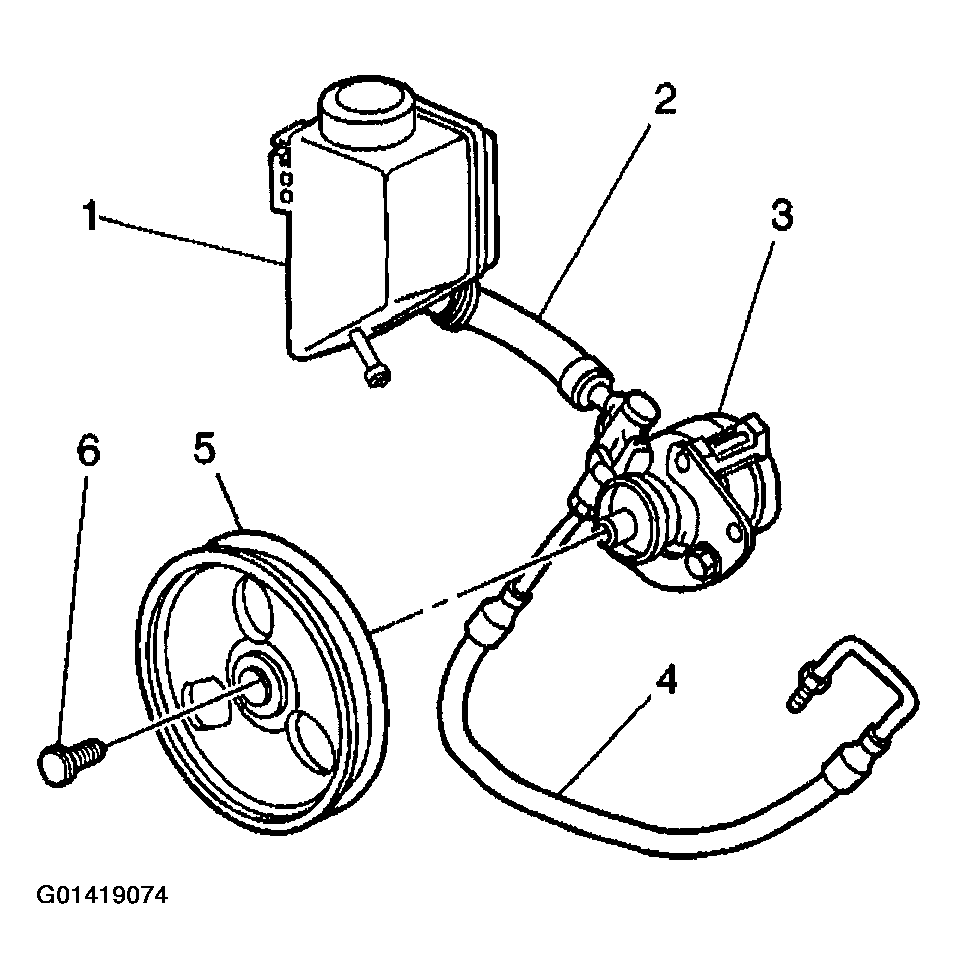

    Fig 1: Removing Power Steering Reservoir Outlet Hose
    G01419074Courtesy of GENERAL MOTORS CORP.
