Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outlet hose (2) to the power steering reservoir (1).

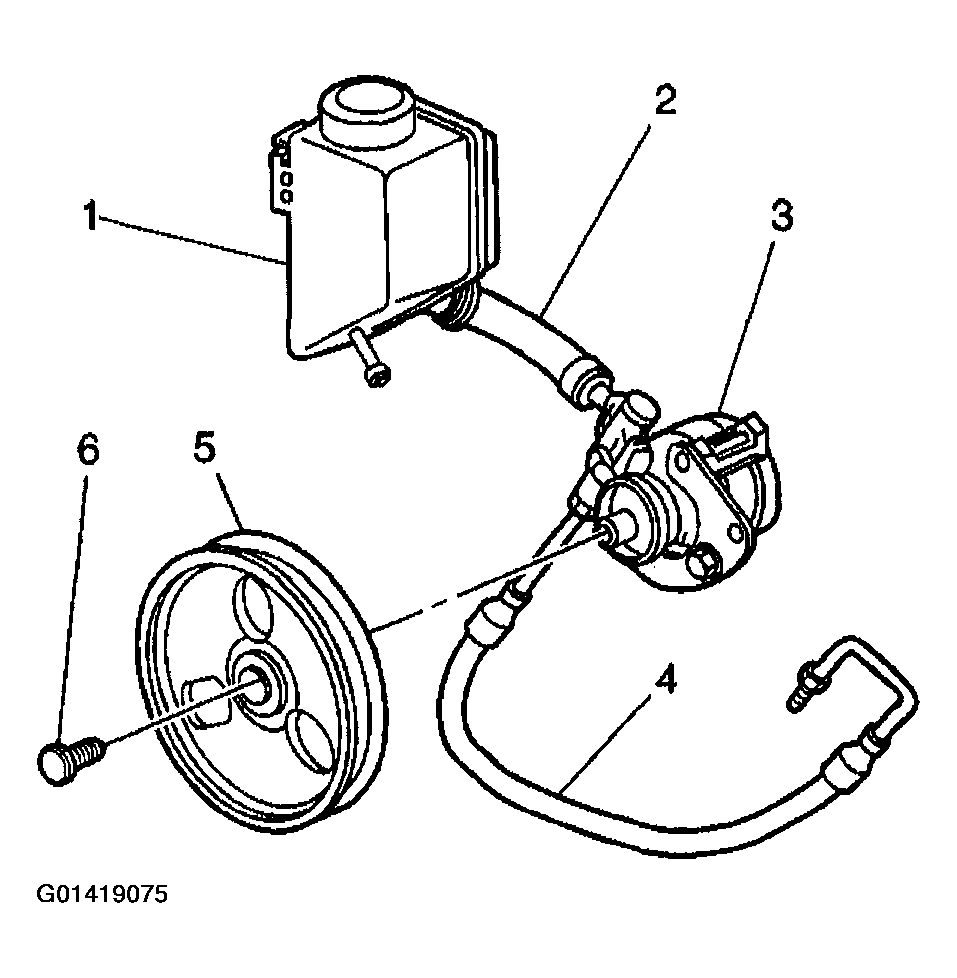

    Fig 1: Installing Outlet Hose To Power Steering Reservoir
    G01419075Courtesy of GENERAL MOTORS CORP.
  2. Install the outlet hose to the power steering pump (3).
  3. Install the outlet hose retaining clamps.
  4. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM  .
