Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the power steering pressure hose (2) from the power steering pump (1).

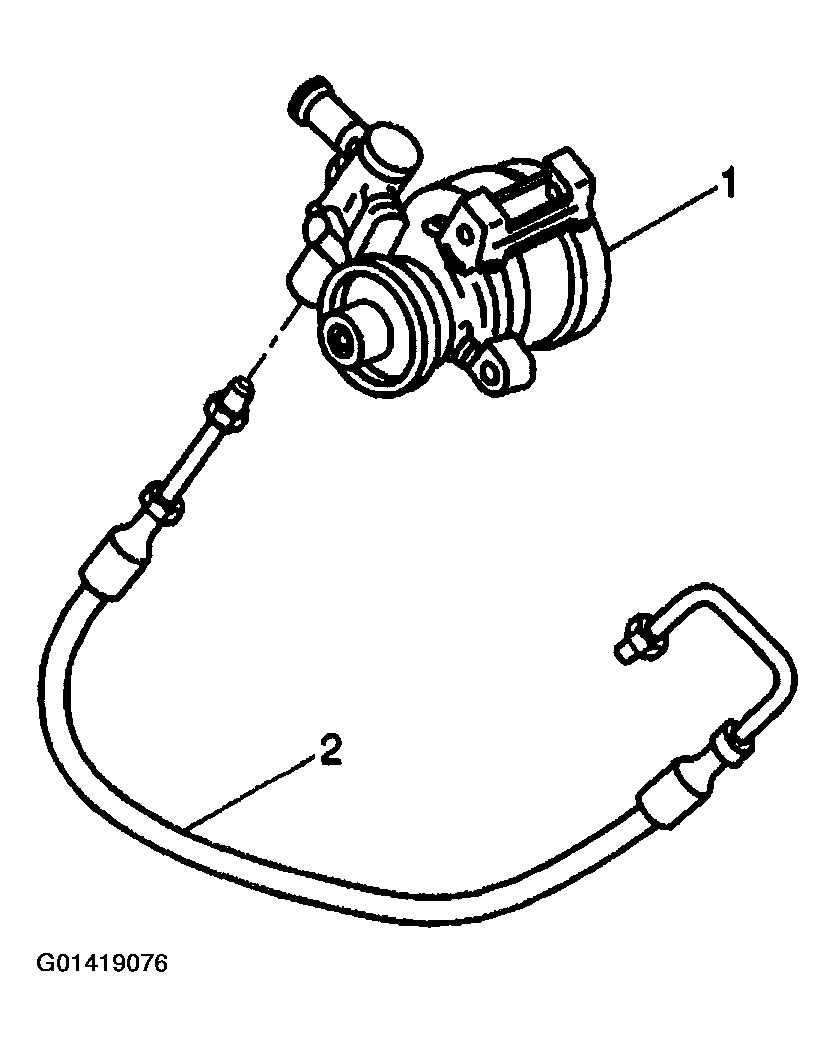

    Fig 1: Removing Power Steering Pressure Hose
    G01419076Courtesy of GENERAL MOTORS CORP.
  3. Remove the power steering pressure hose (2) from the power steering gear.
  4. Remove the power steering pressure hose (2) from the vehicle.
