Schematic Wiring Diagrams

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

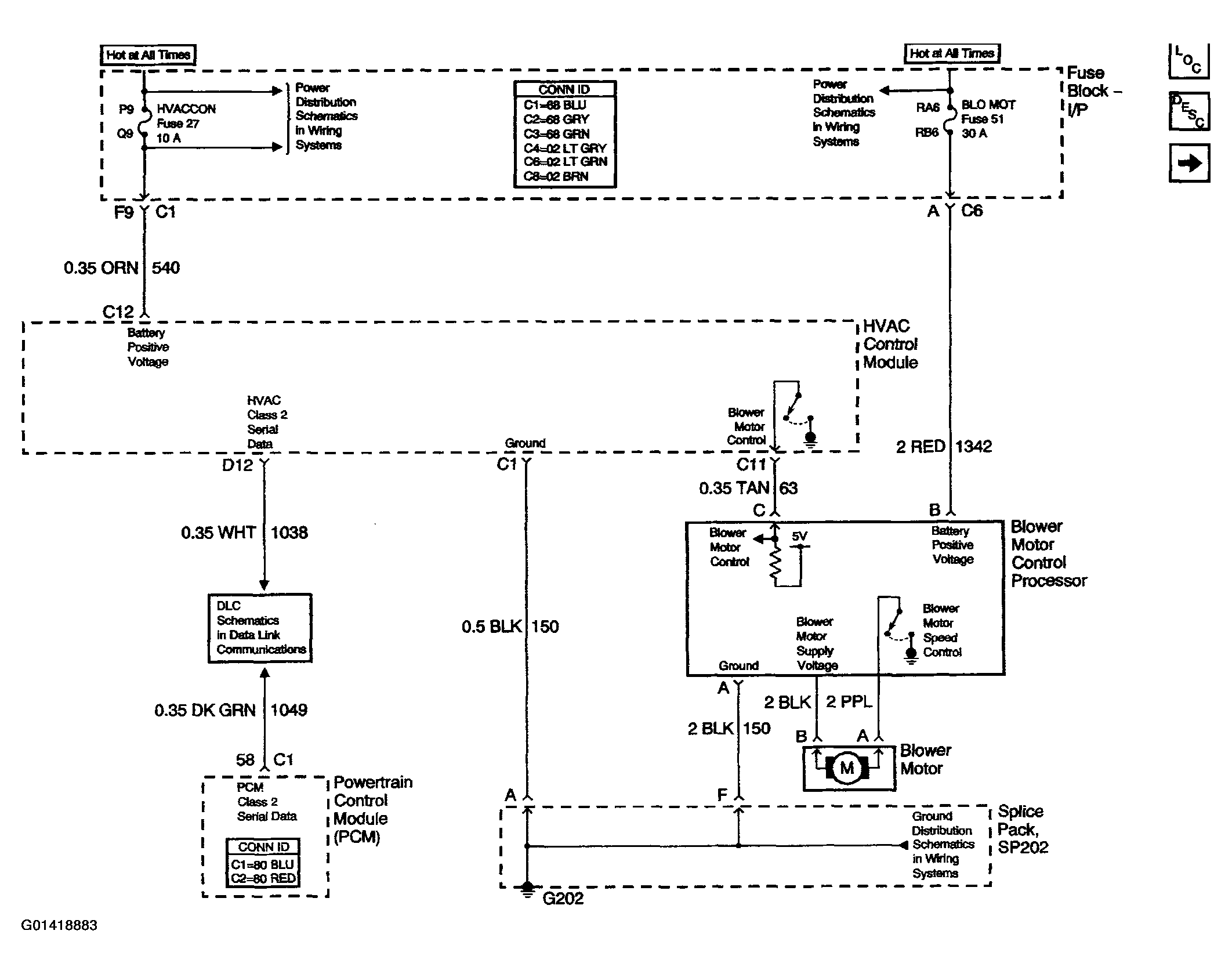

Fig 1: HVAC Schematics Diagram - Blower Controls

Courtesy of GENERAL MOTORS CORP.

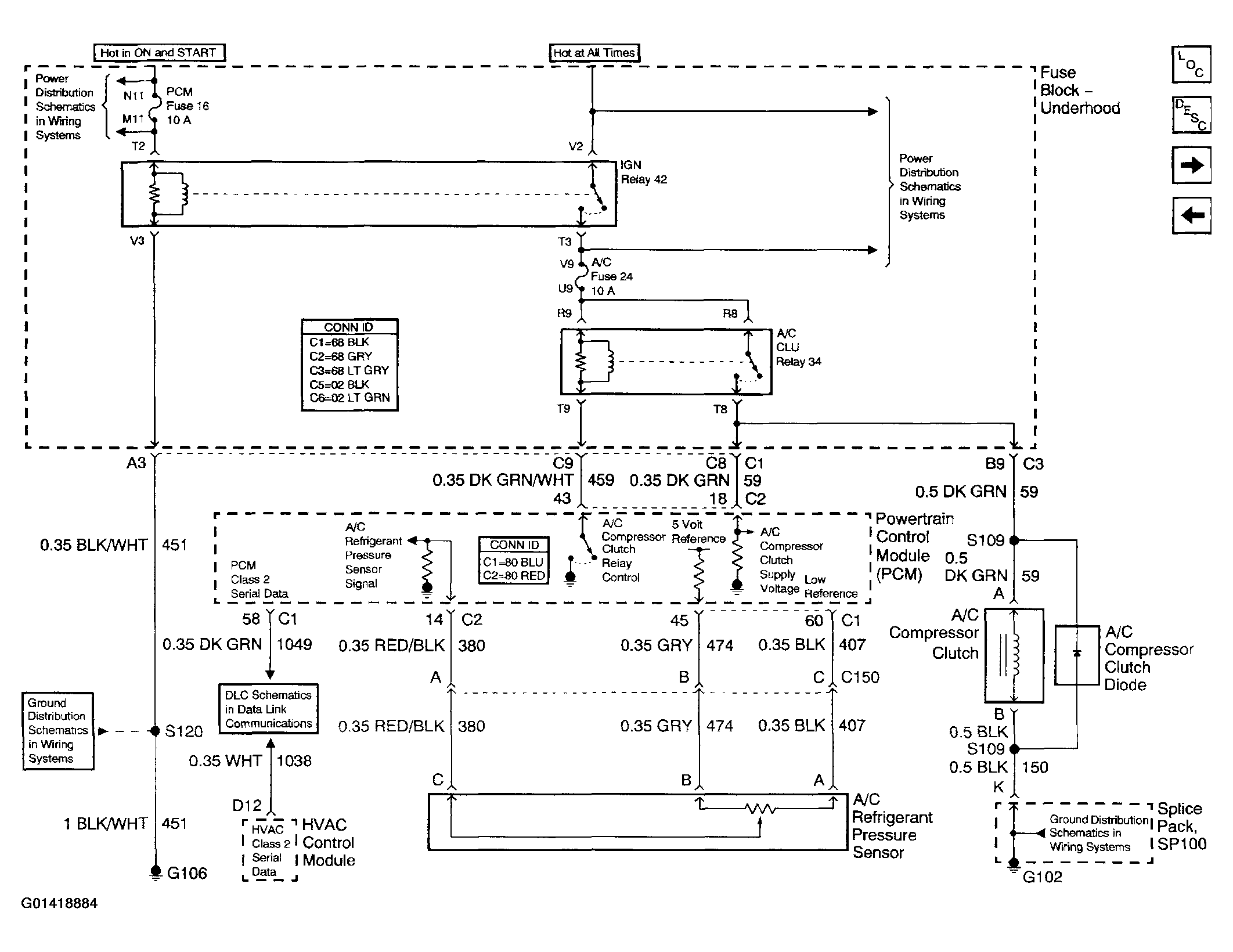

Fig 2: HVAC Schematics Diagram - Compressor Controls

Courtesy of GENERAL MOTORS CORP.

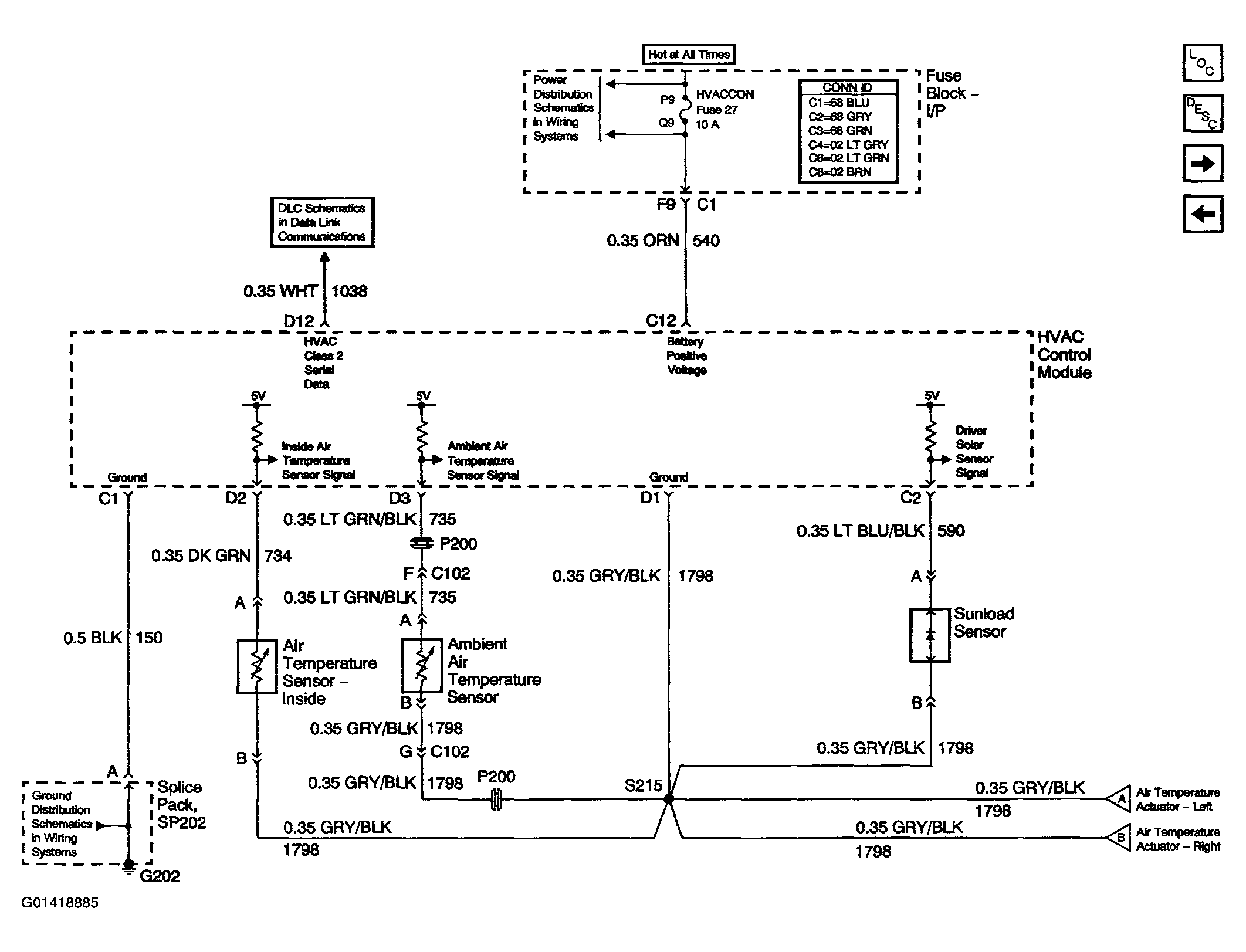

Fig 3: Schematics Diagram - Air Delivery/Temperature Controls - Power, Ground And DLC

Courtesy of GENERAL MOTORS CORP.

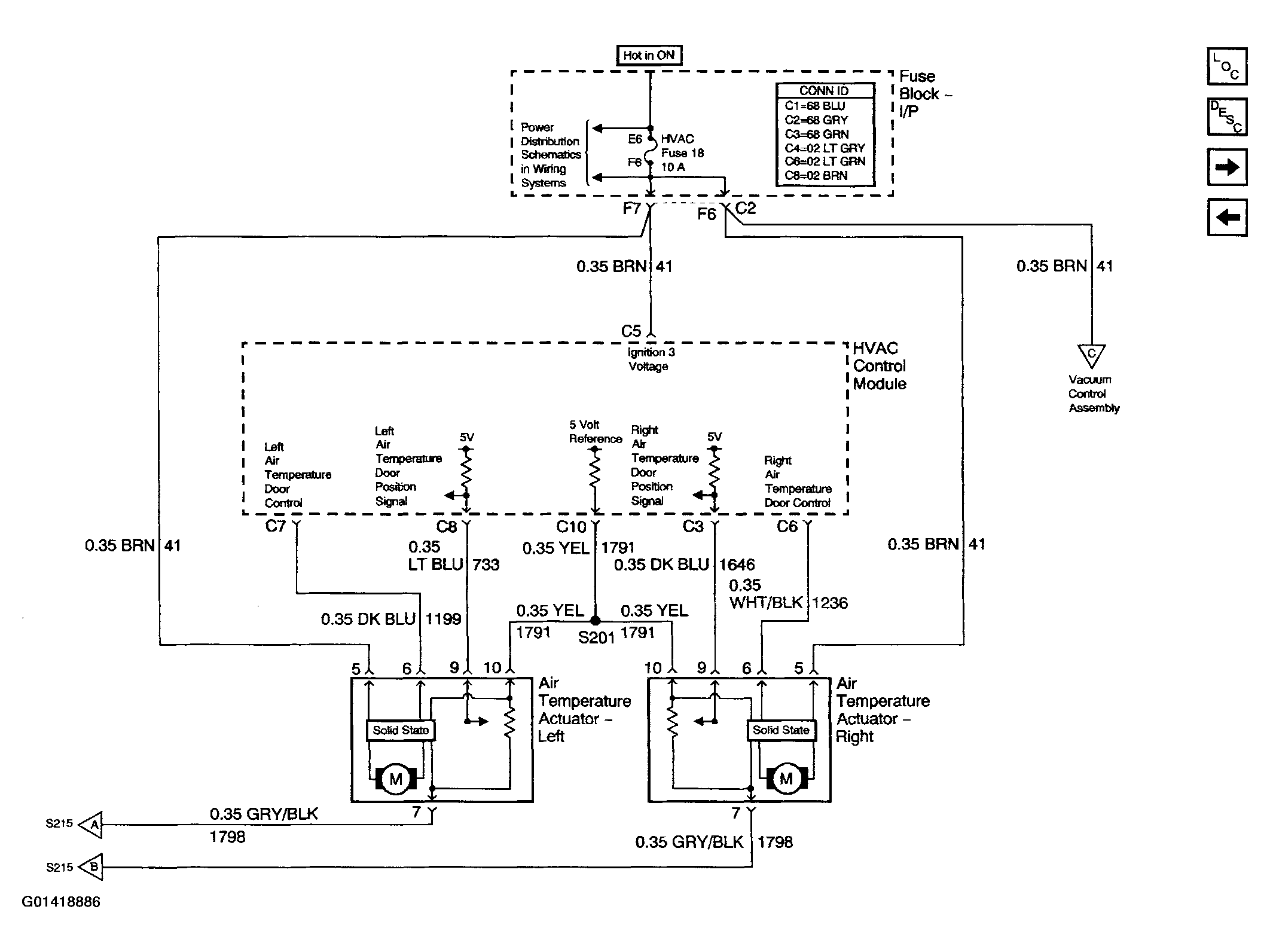

Fig 4: Schematics Diagram - Air Delivery/Temperature Controls - Actuator Control

Courtesy of GENERAL MOTORS CORP.

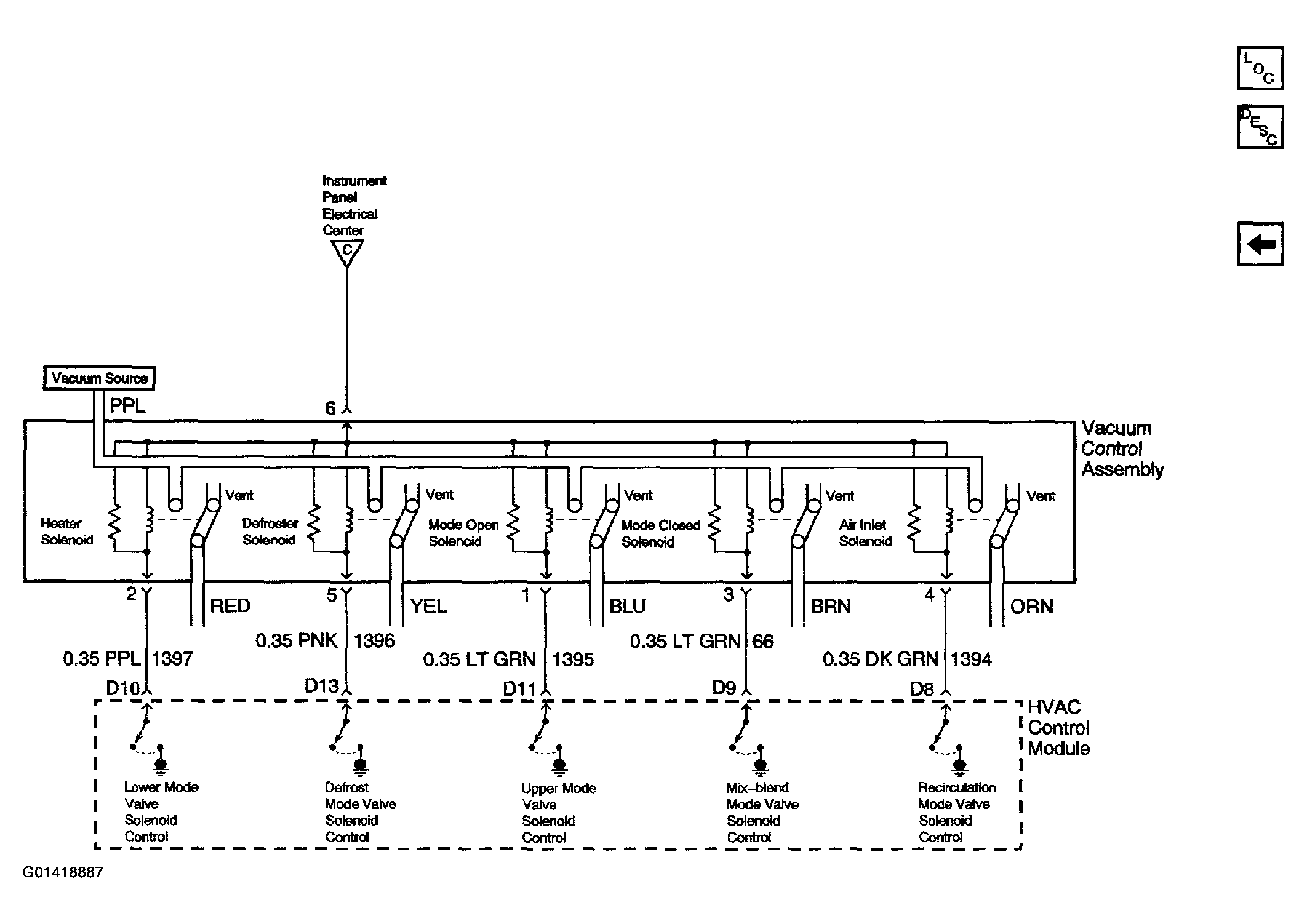

Fig 5: Schematics Diagram - Air Delivery/Temperature Controls - Solenoid Control

Courtesy of GENERAL MOTORS CORP.

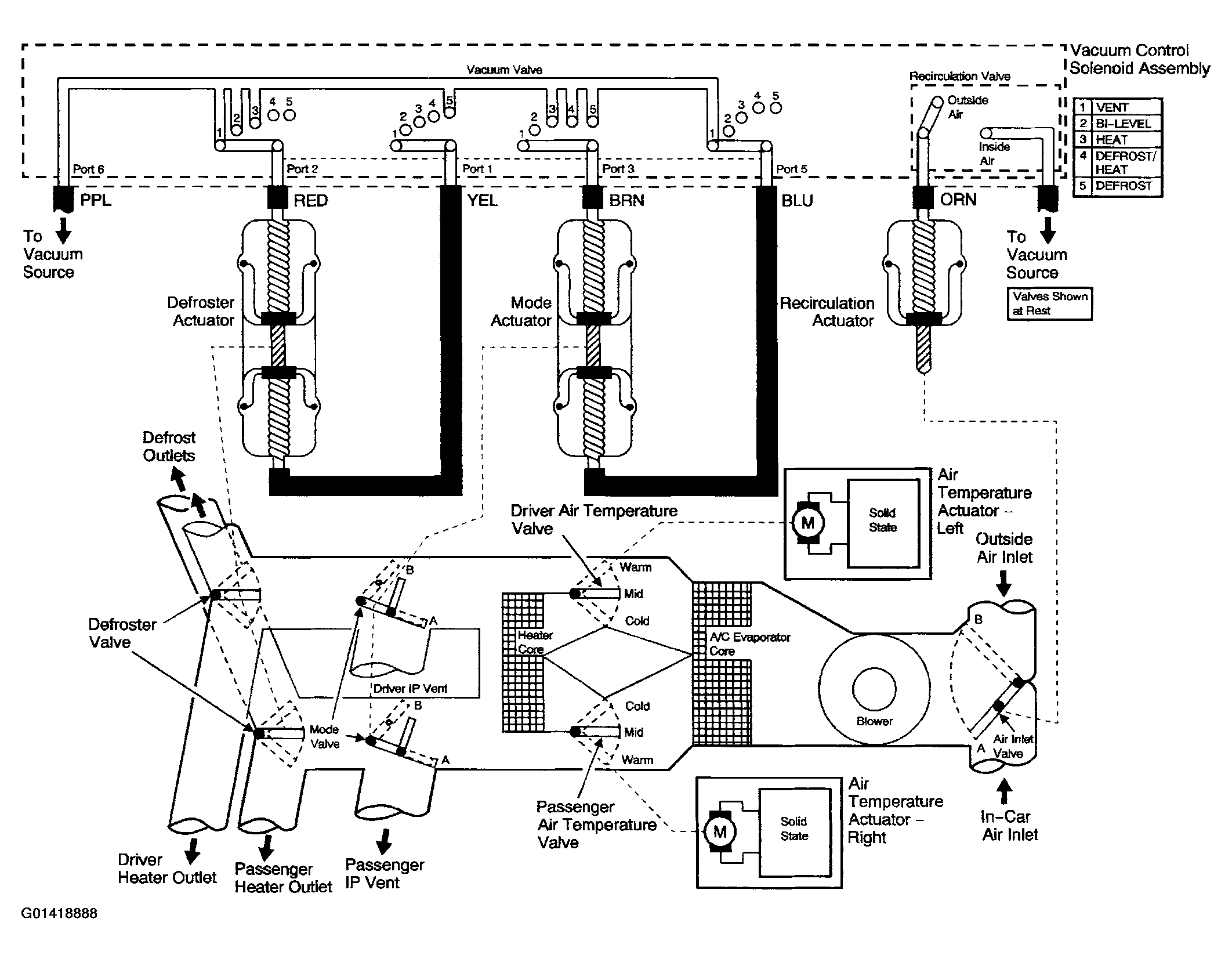

Fig 6: HVAC Vacuum Schematics Diagram - Air Delivery (CJ3)

Courtesy of GENERAL MOTORS CORP.
