Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the vacuum check valve (2) to the vacuum tank (1).

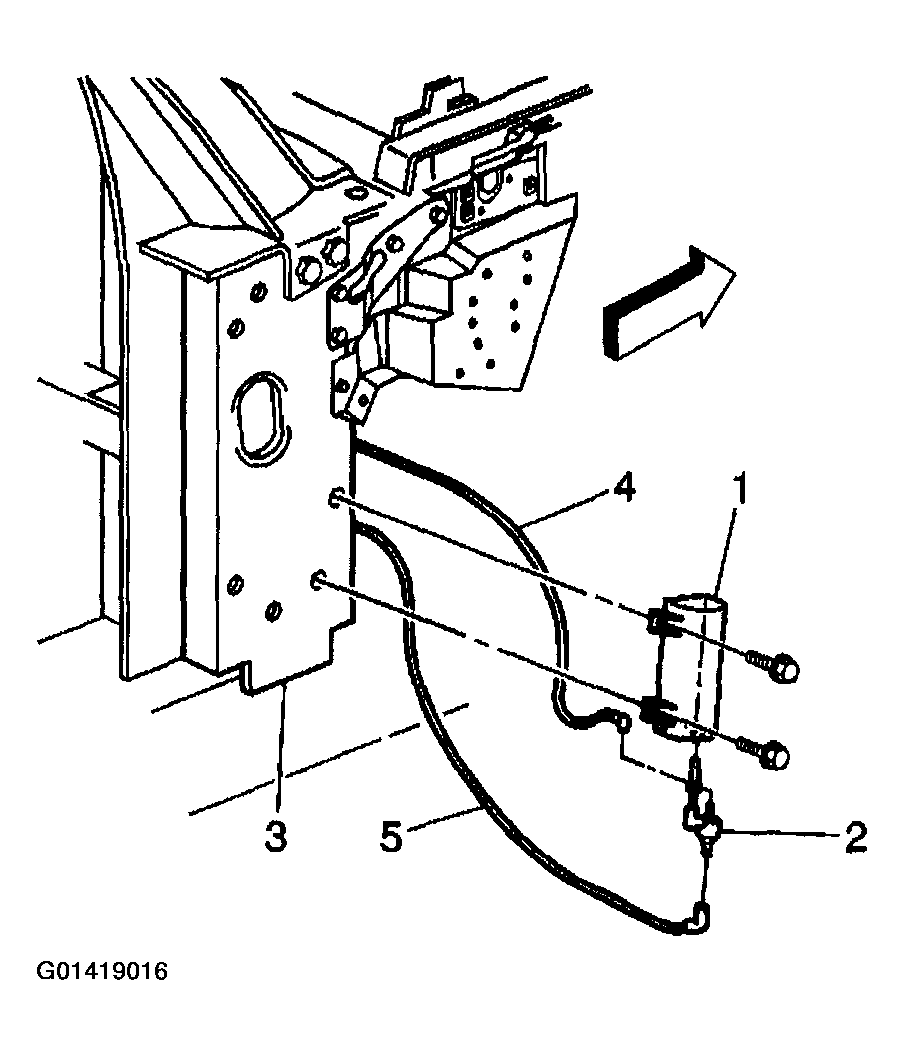

    Fig 1: Installing Vacuum Tank To Hinge Pillar
    G01419016Courtesy of GENERAL MOTORS CORP.
  2. Position the vacuum tank (1) to the vehicle.
  3. Connect the engine harness vacuum connector (5) to the vacuum check valve (2).
  4. Connect the I/P harness vacuum connector (4) to the vacuum check valve (2).
  5. Have an assistant position and hold the vacuum tank (1) against the hinge pillar (3).
    NOTE: Refer to FASTENER NOTICE .
  6. Utilizing the opening between the fender and the door, install the vacuum tank (1) to hinge pillar (3) UPPER retaining screw FIRST (net locating position), then install the lower screw.

    Tighten

    Tighten the vacuum tank retaining screws to 3.5 N.m (31 lb in).

  7. Close the RH door.
  8. Remove the protective tape from the edges of the RH fender and door.
  9. Install the PCM. Refer to POWERTRAIN CONTROL MODULE .
  10. Install the wheelhouse filler panel. Refer to WHEELHOUSE FILLER REPLACEMENT in Body Front End.
  11. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
