Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ambient air temperature sensor electrical connector.

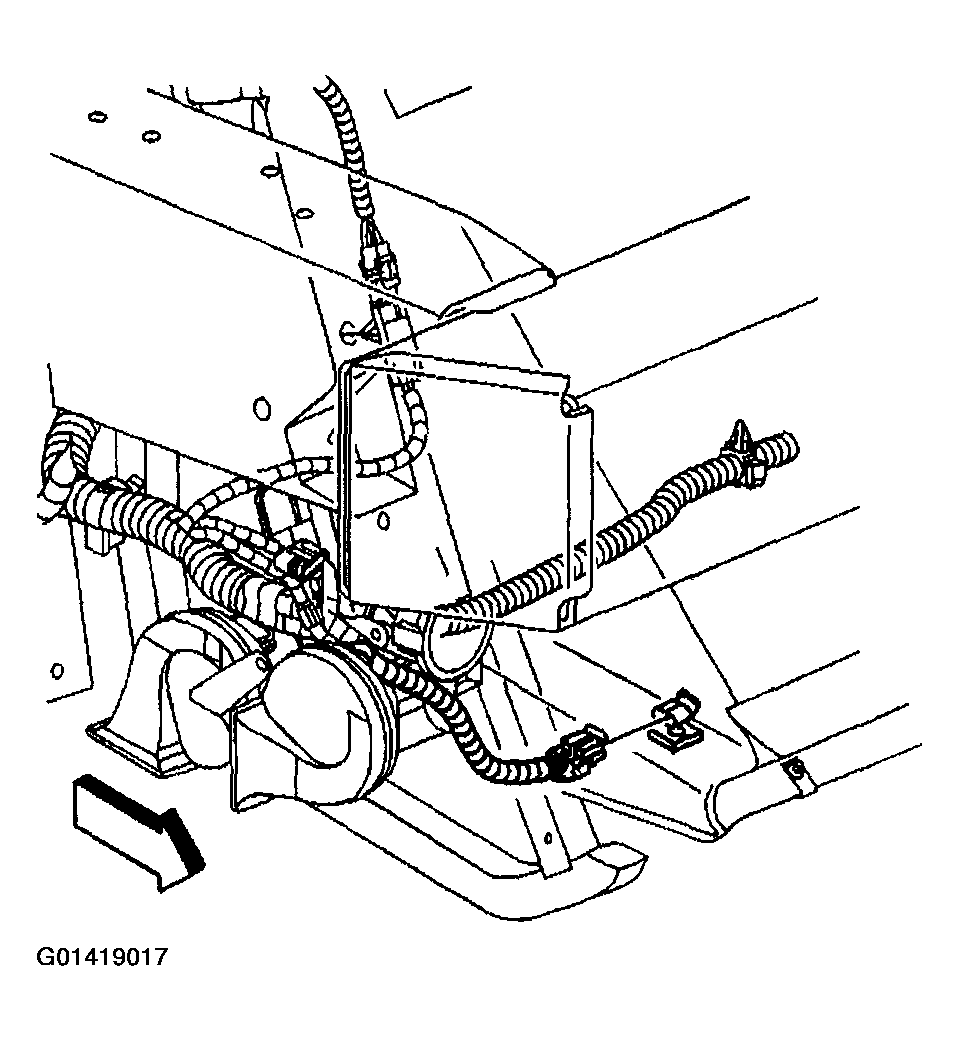

    Fig 1: Disconnecting Ambient Air Temperature Sensor Electrical Connector
    G01419017Courtesy of GENERAL MOTORS CORP.
  2. Remove the push-in retainer securing the ambient air temperature sensor to the lower RH side of the radiator support.
  3. Remove the ambient air temperature sensor from the radiator support.

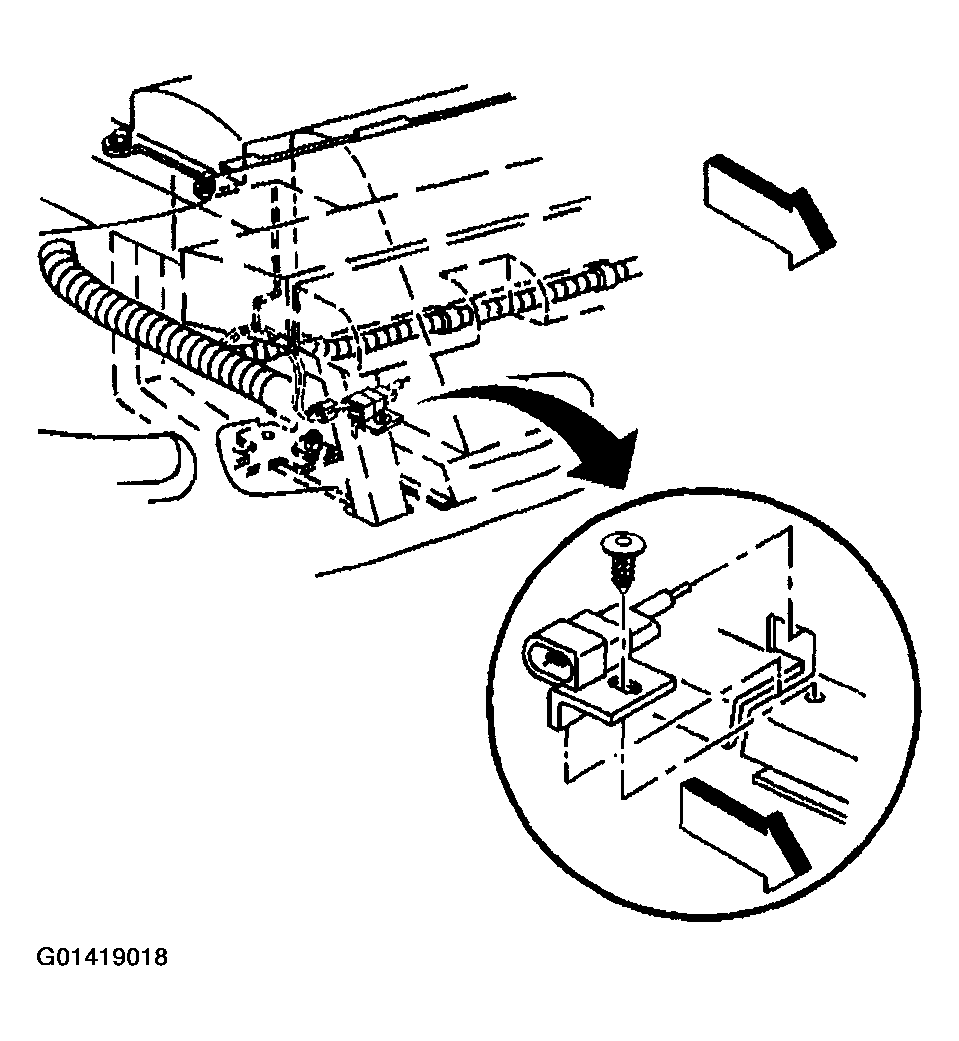

    Fig 2: Removing Ambient Air Temperature Sensor From Radiator Support
    G01419018Courtesy of GENERAL MOTORS CORP.
