Air Delivery Improper

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

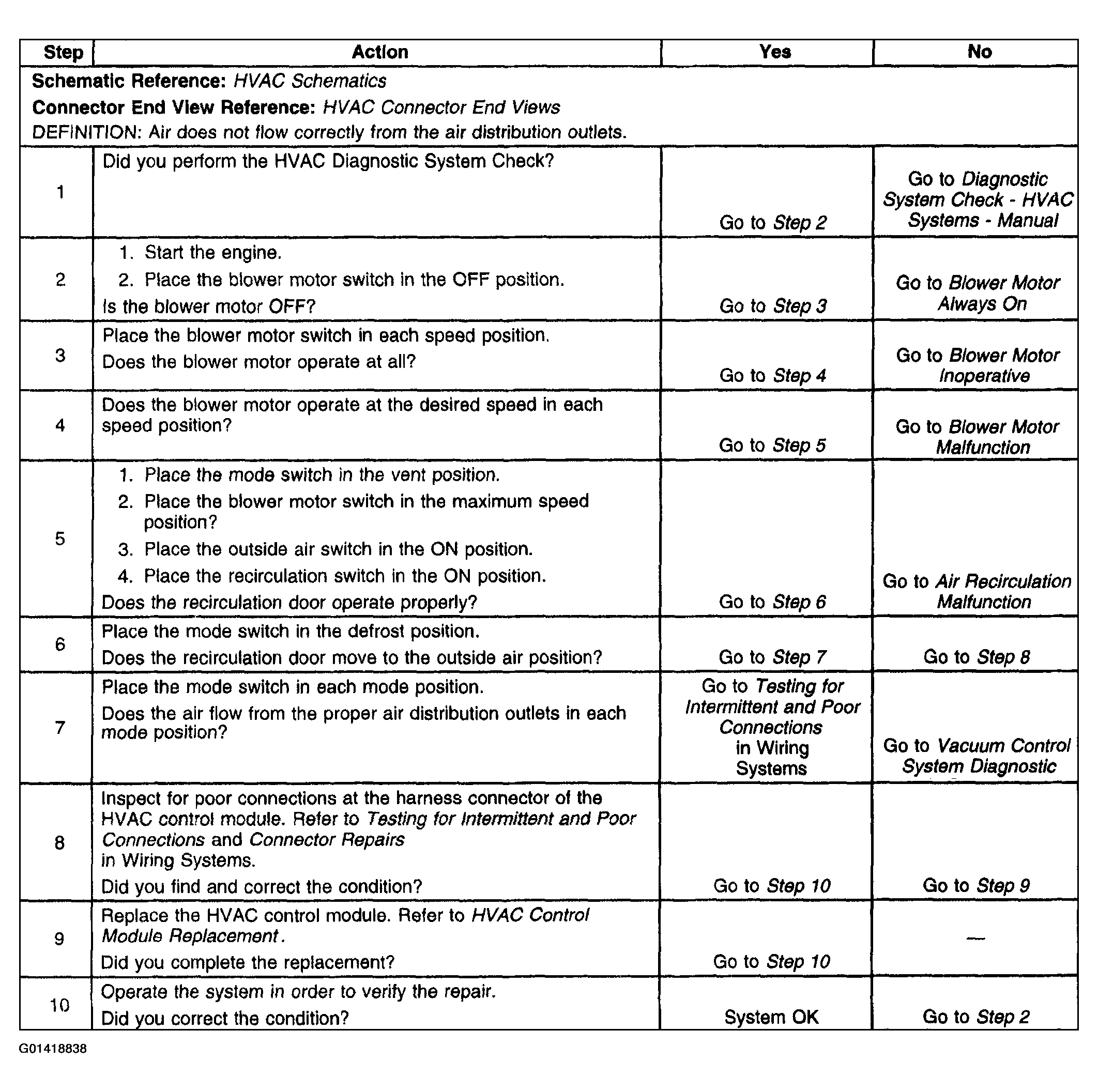

Fig 1: Diagnostic Table (Air Delivery Improper)
G01418838Courtesy of GENERAL MOTORS CORP.
